Electrical Diagrams

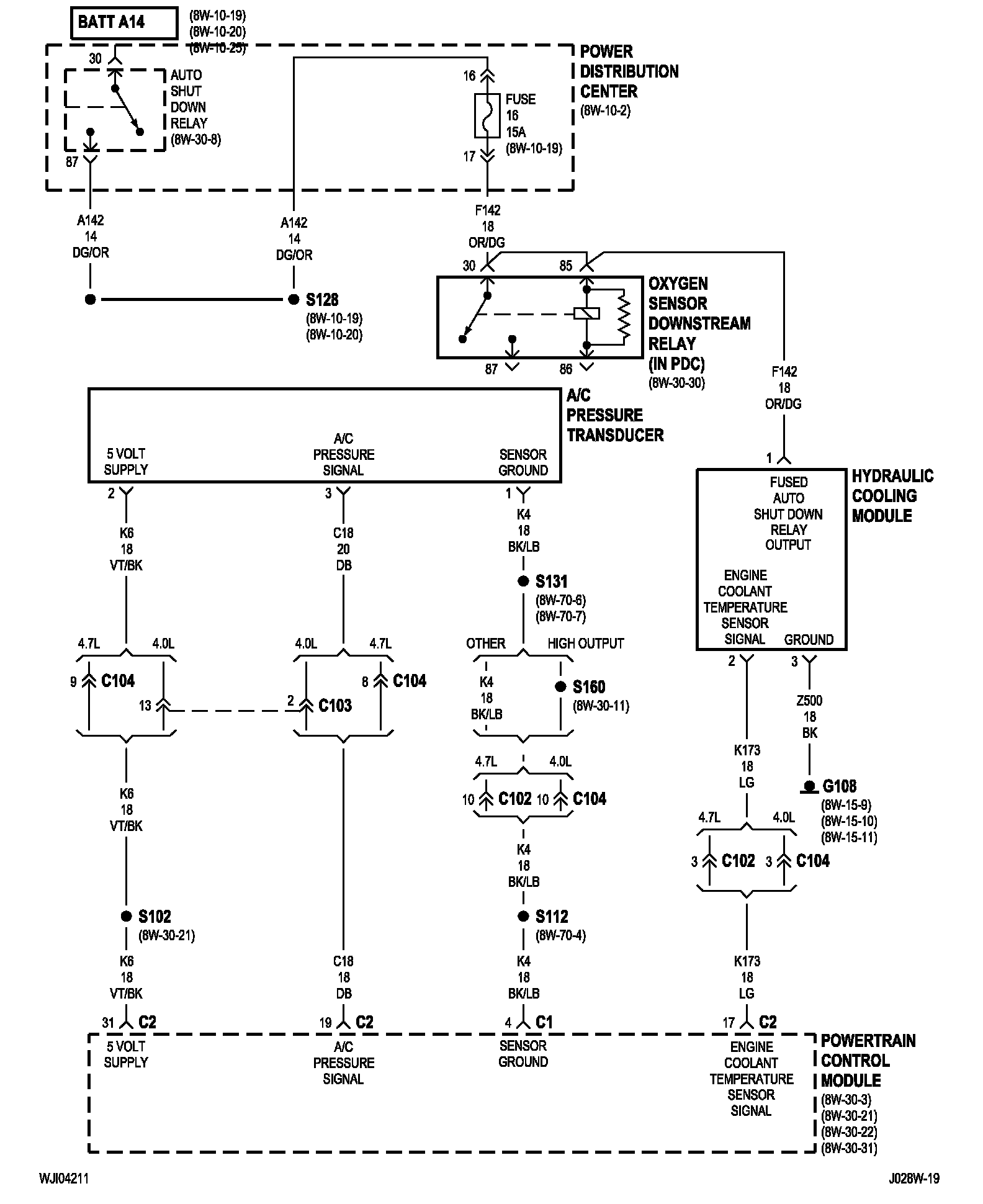

8w-42-11 (LHD):






For additional wiring diagrams, refer to Diagrams/Electrical. Electrical Diagrams
