Jeep Truck
>>
2001
>>
Wrangler L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Connector Views
Connector Views

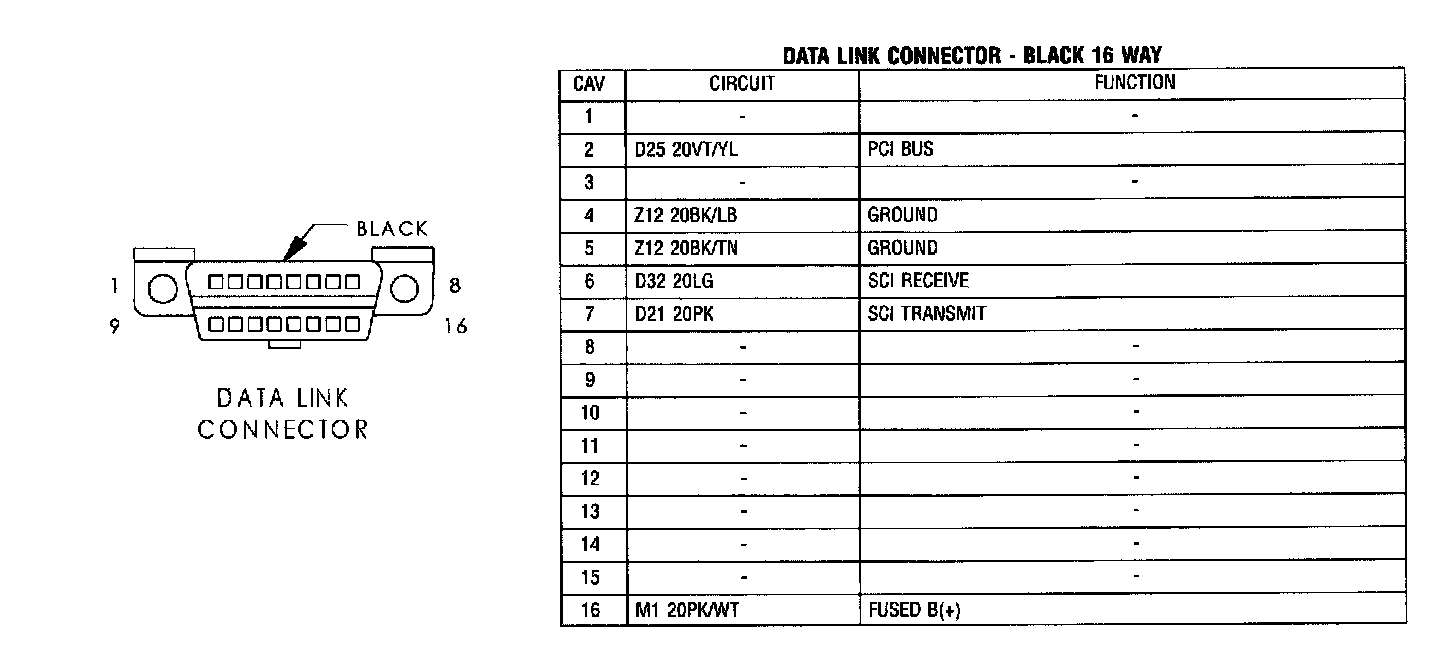

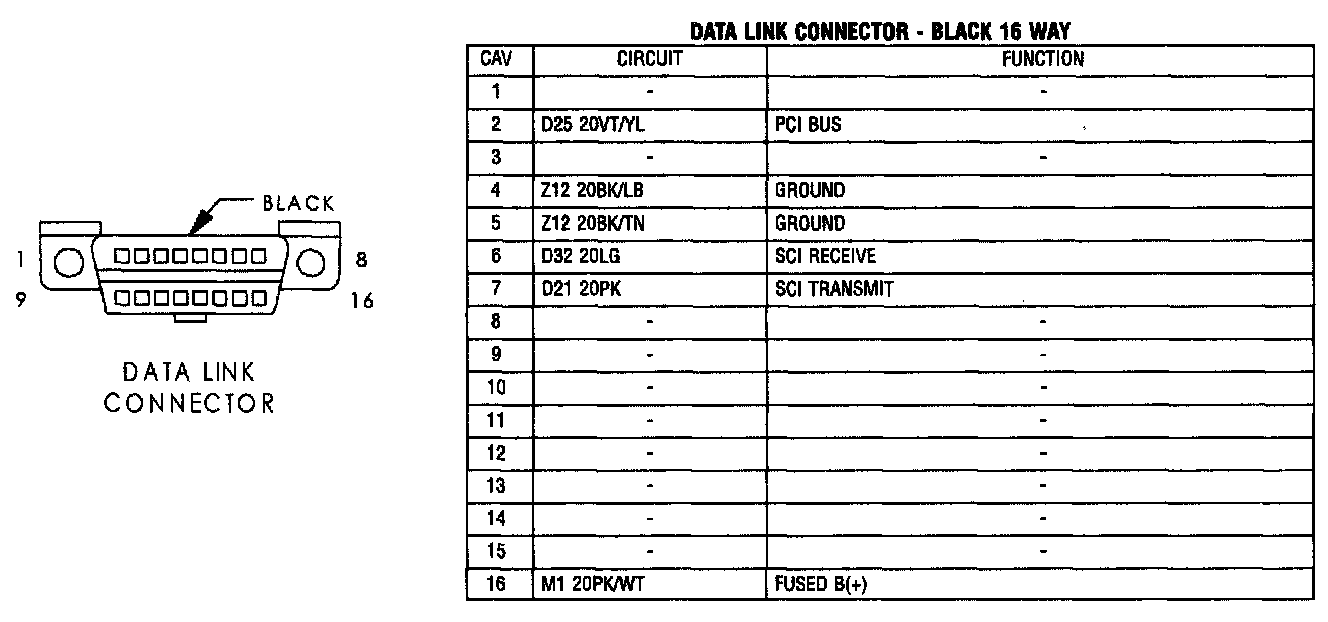

Data Link Connector - Black 16 Way:
Data Link Connector:
