Jeep Truck
>>
2001
>>
TJ (CANADA) L4-2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
>>

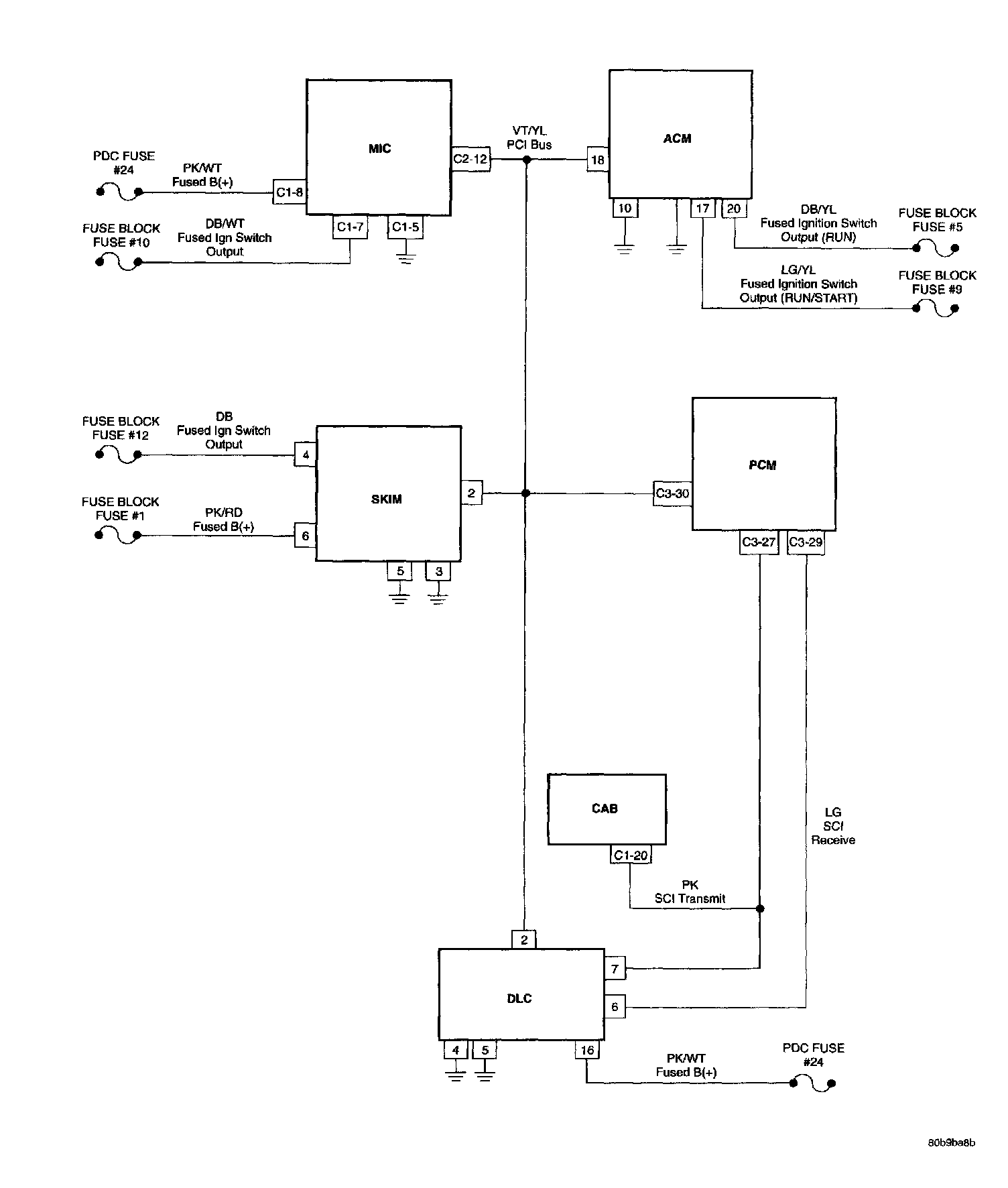

System Schematic
System Schematic
Vehicle Communications:
