Home >> Jeep Truck >> 2001 >> TJ (CANADA) L4-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Absolute Pressure Sensor >> Diagrams

Absolute Pressure Sensor: Diagrams

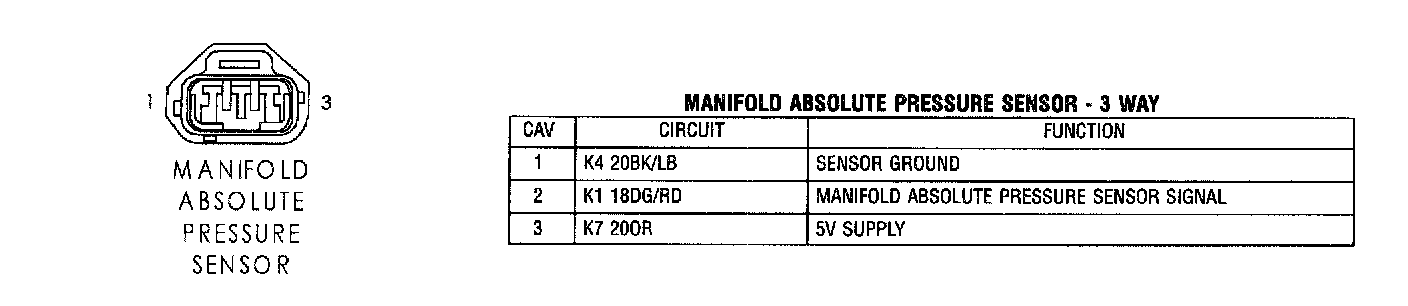

Manifold Absolute Pressure Sensor - 3 Way:
