Home
>>
Jeep Truck
>>
2001
>>
Cherokee 2WD LHD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Power Distribution Module
Power Distribution Module

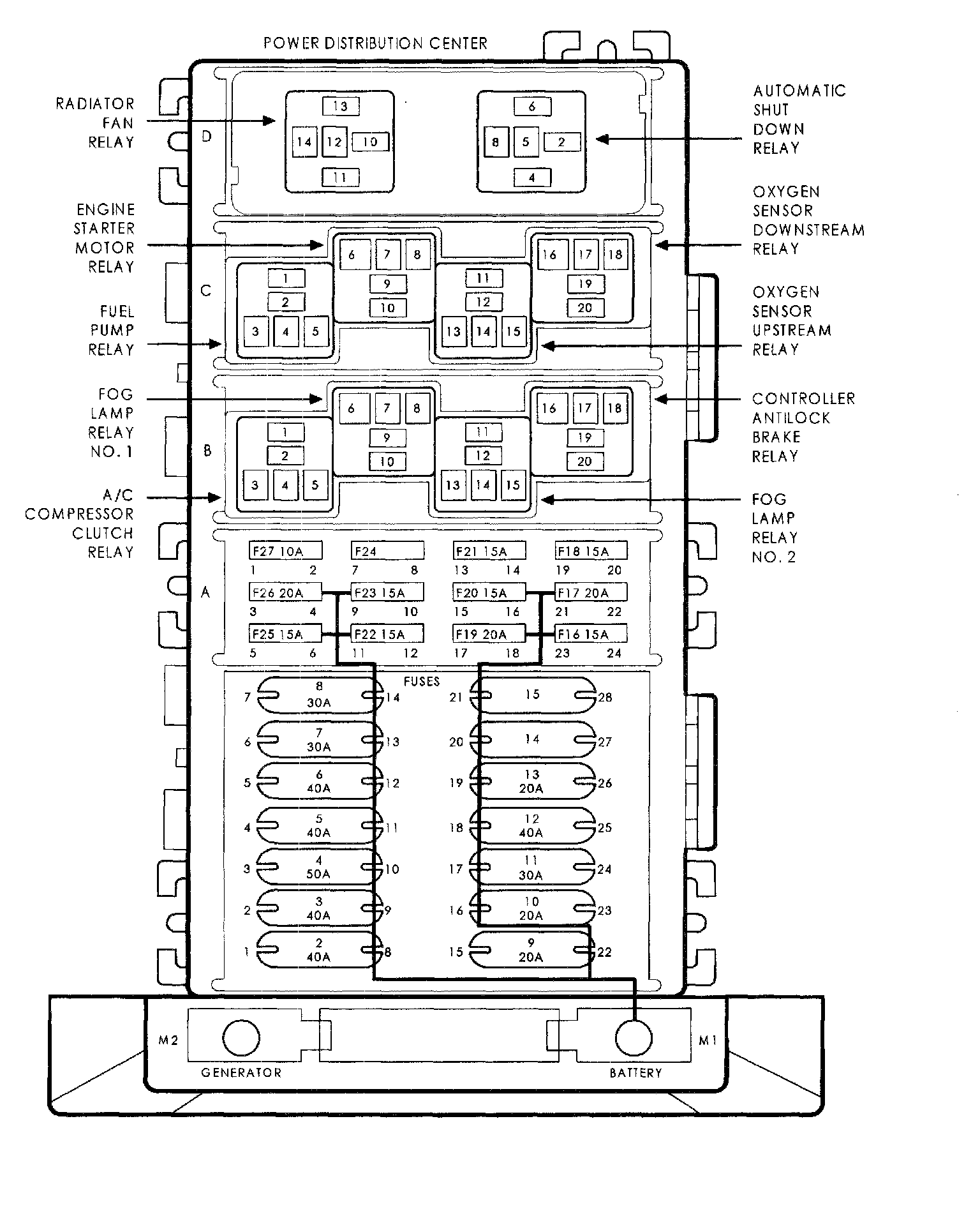

Power Distribution Center:
Power Distribution Center

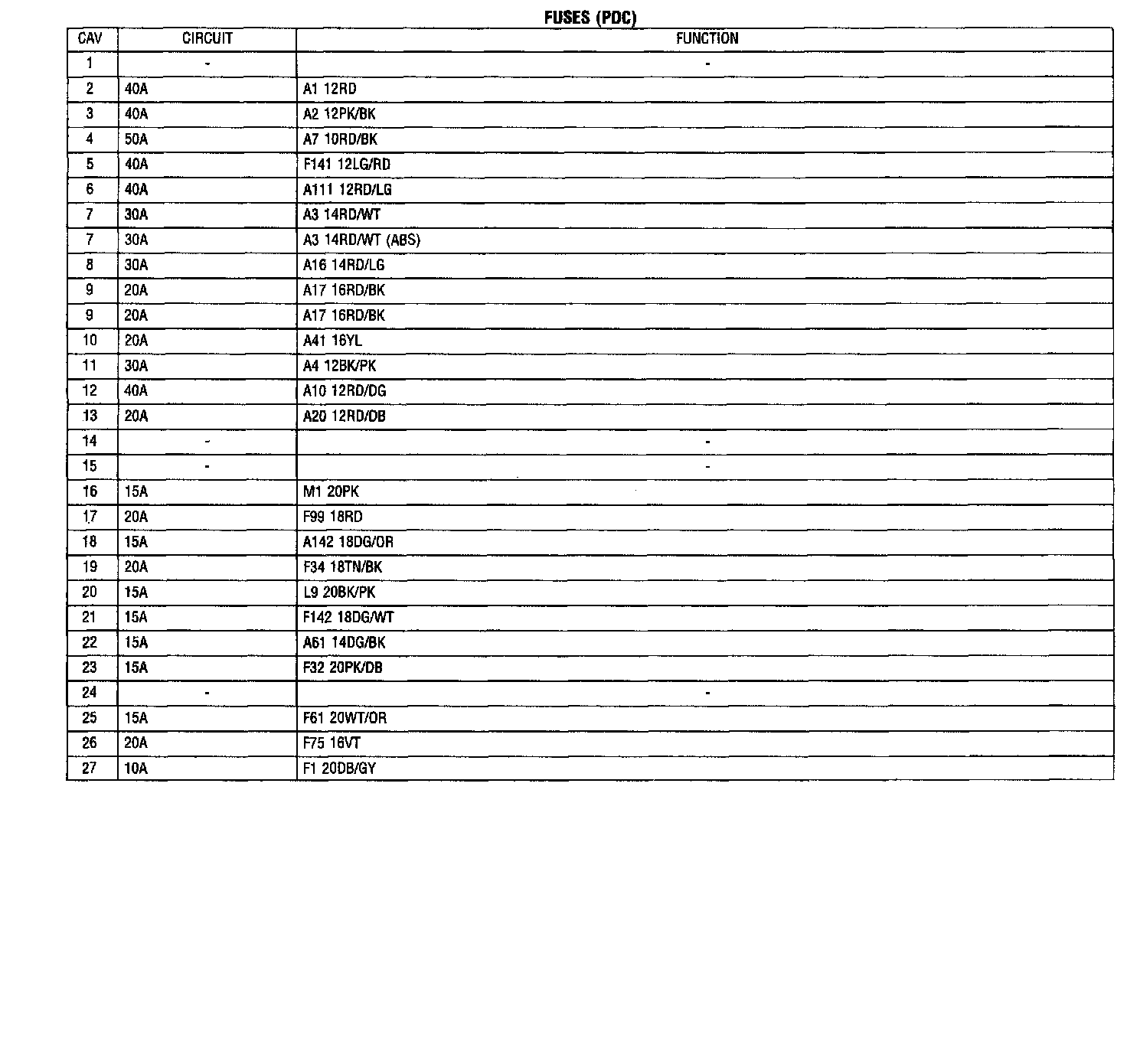

Fuses
