Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jeep Truck
>>
2000
>>
Cherokee 2WD L4-2.5L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>

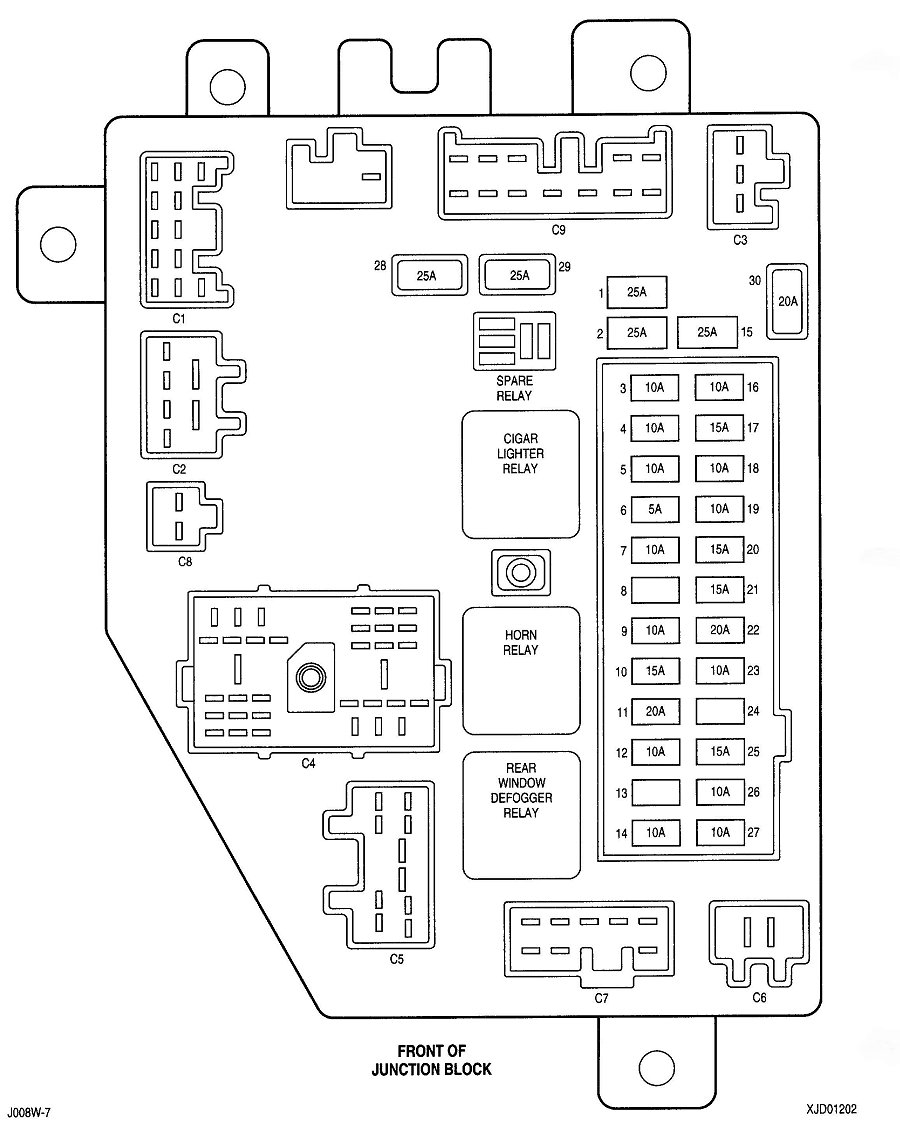

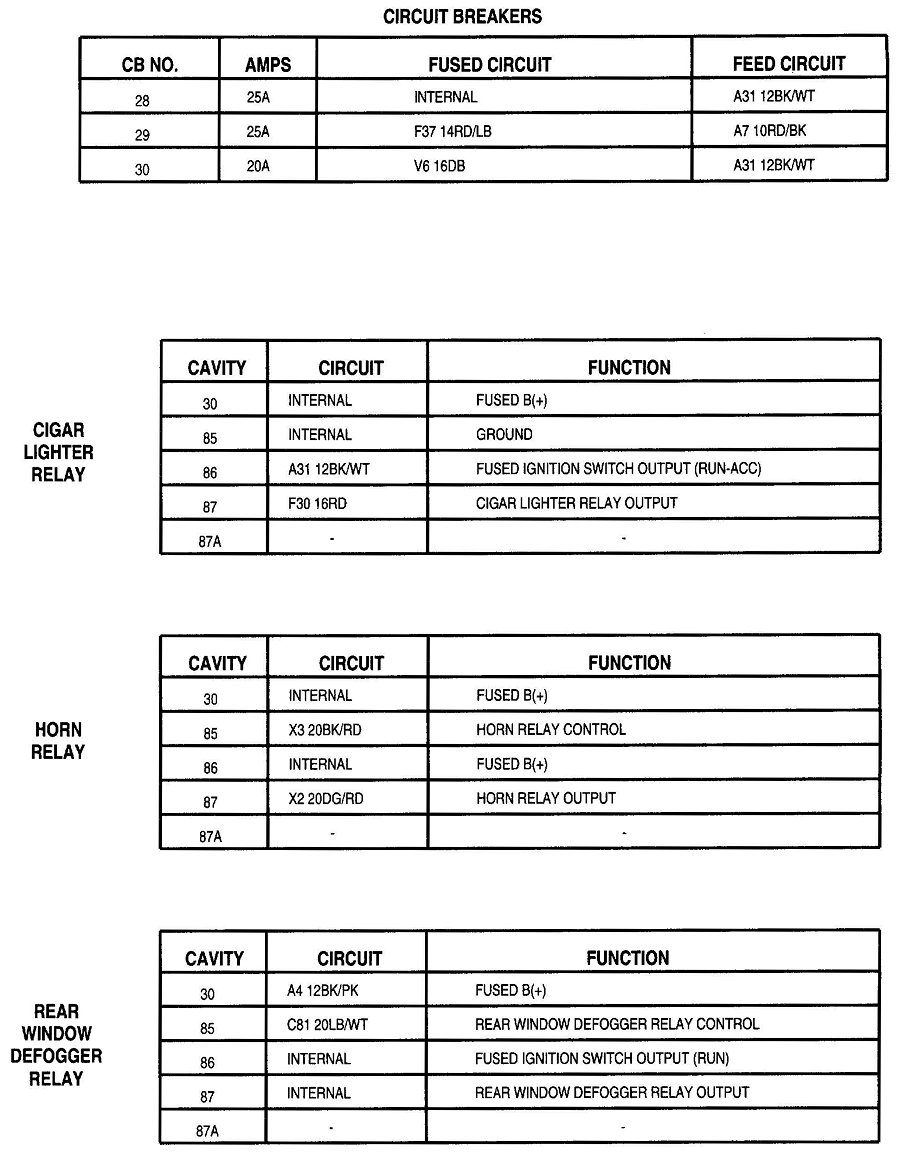

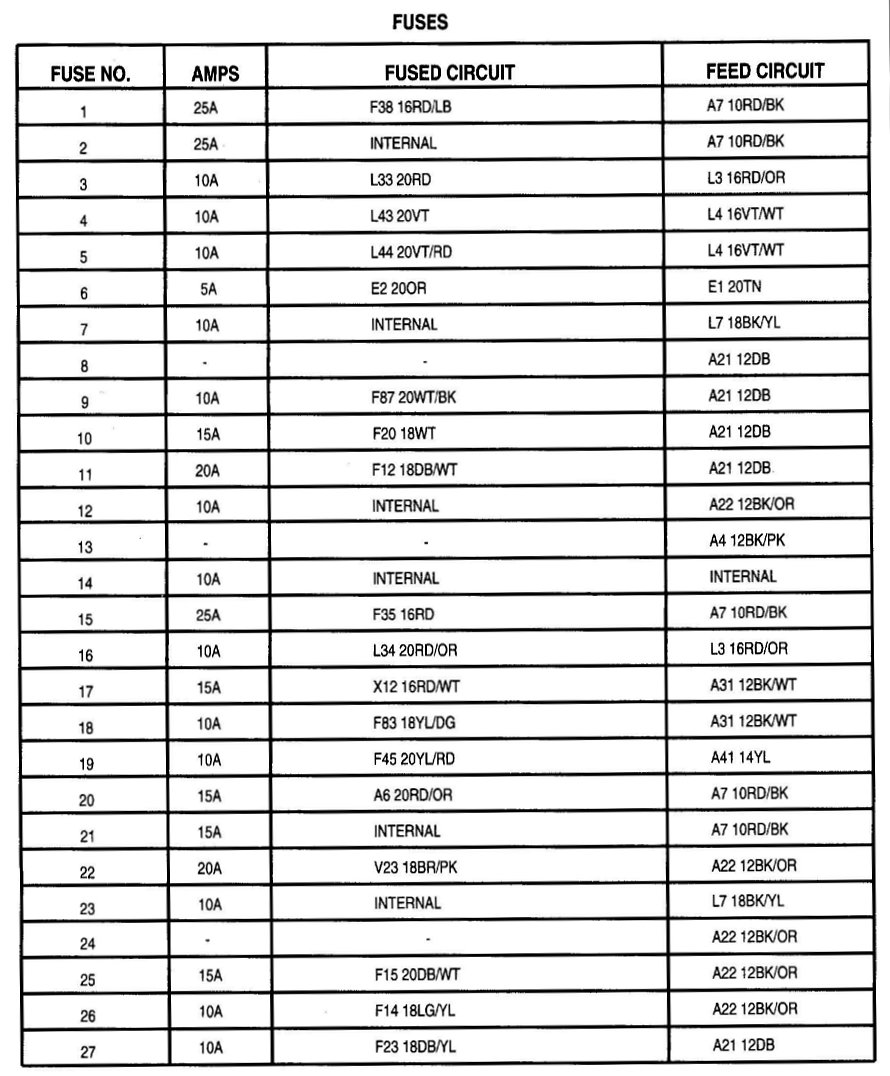

Junction Block (JB)
Junction Block (JB)
Junction Box (
JB
)
