Air Bag Control Module
Air Bag Control Module

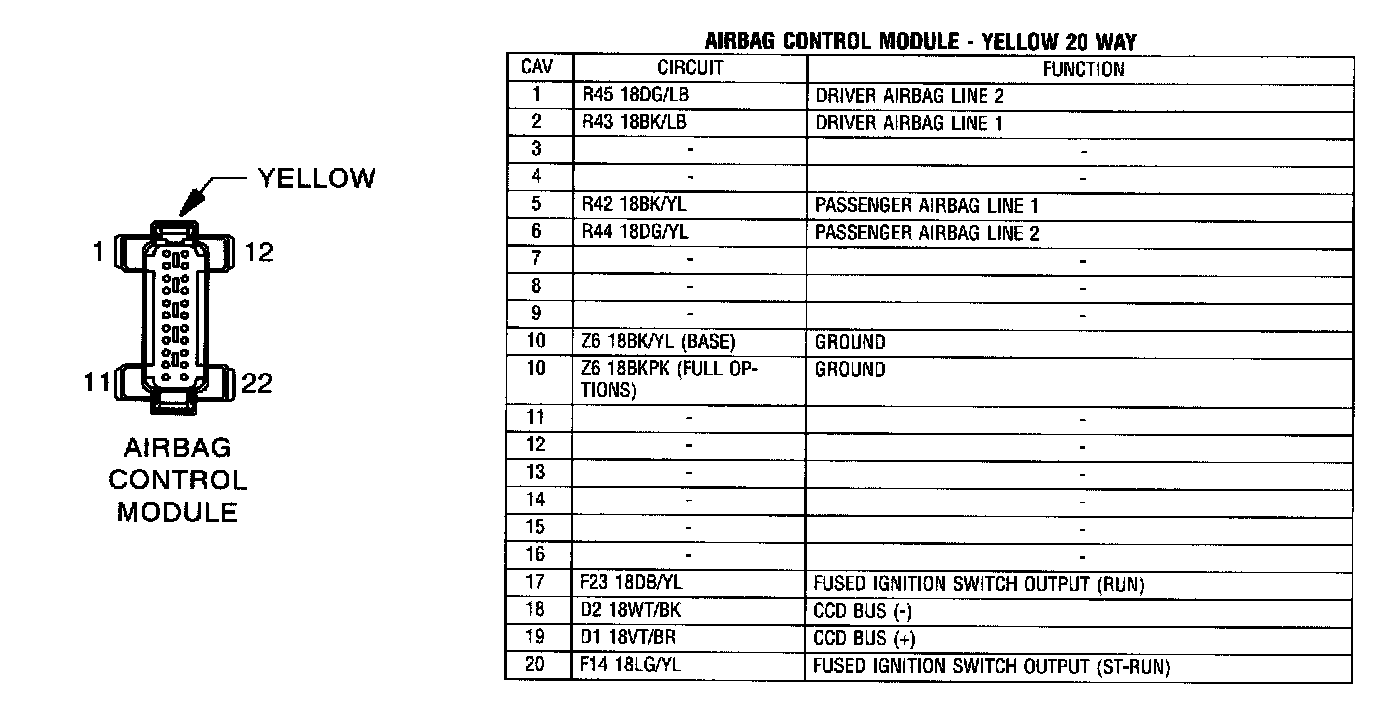

Detailed Connector View:

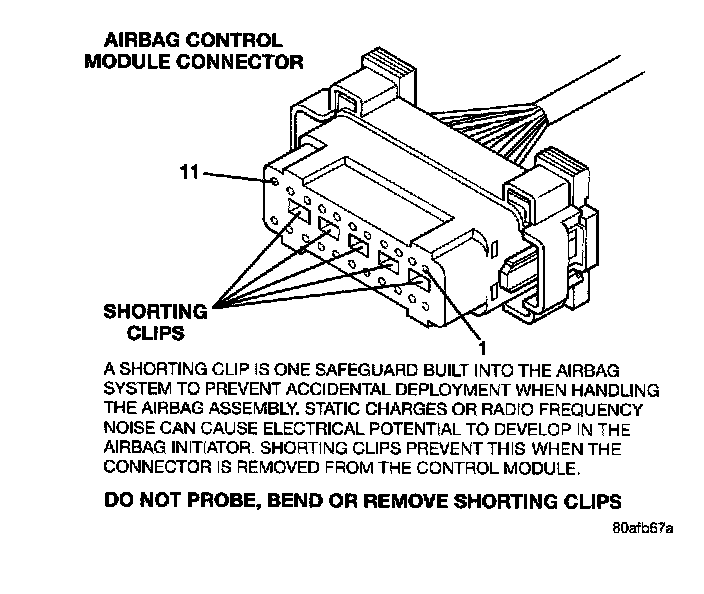

Airbag Control Module Connector View:
