Cherokee 2WD L4-150 2.5L VIN P MFI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Trouble Code (TC) Tests
>>

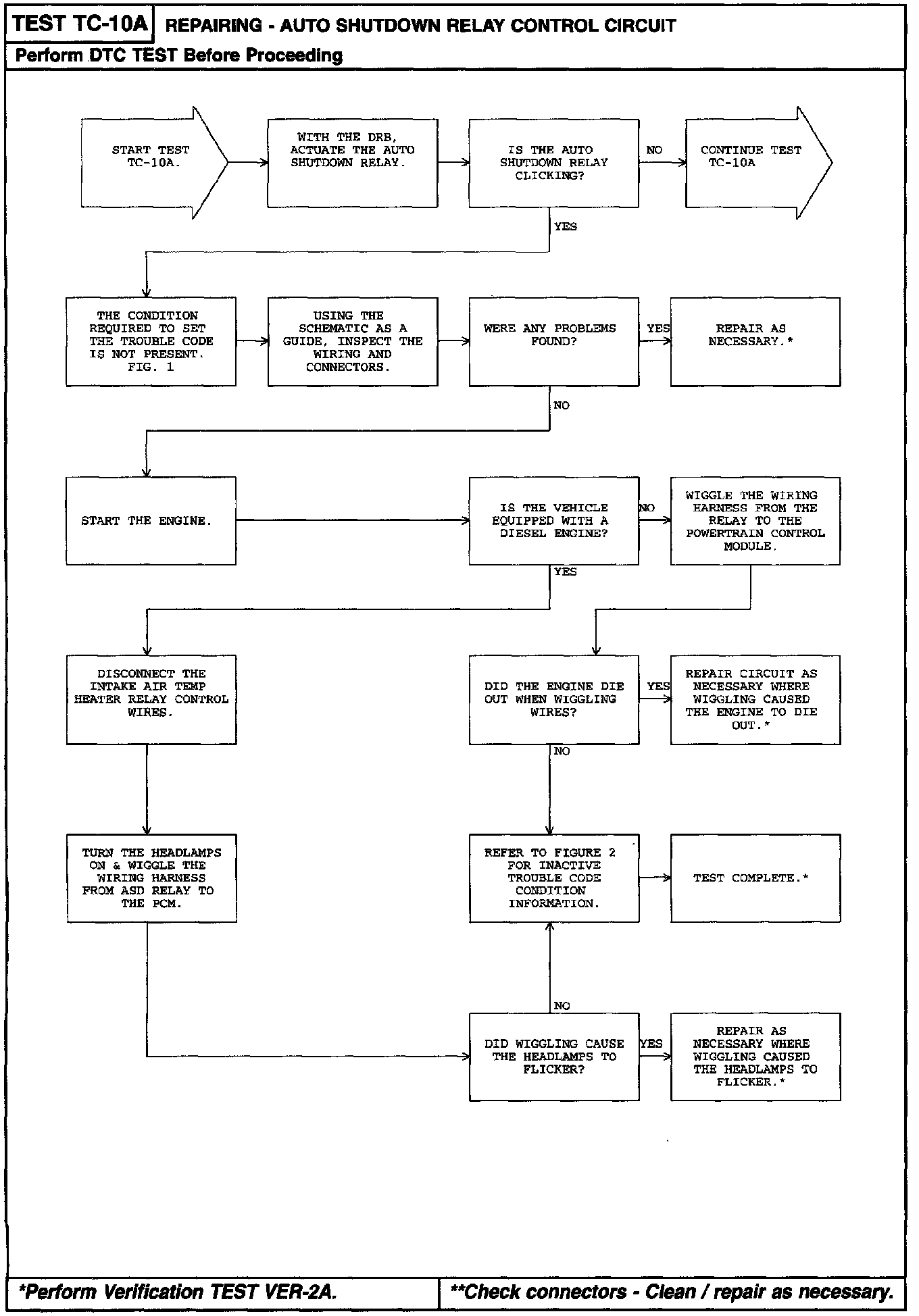

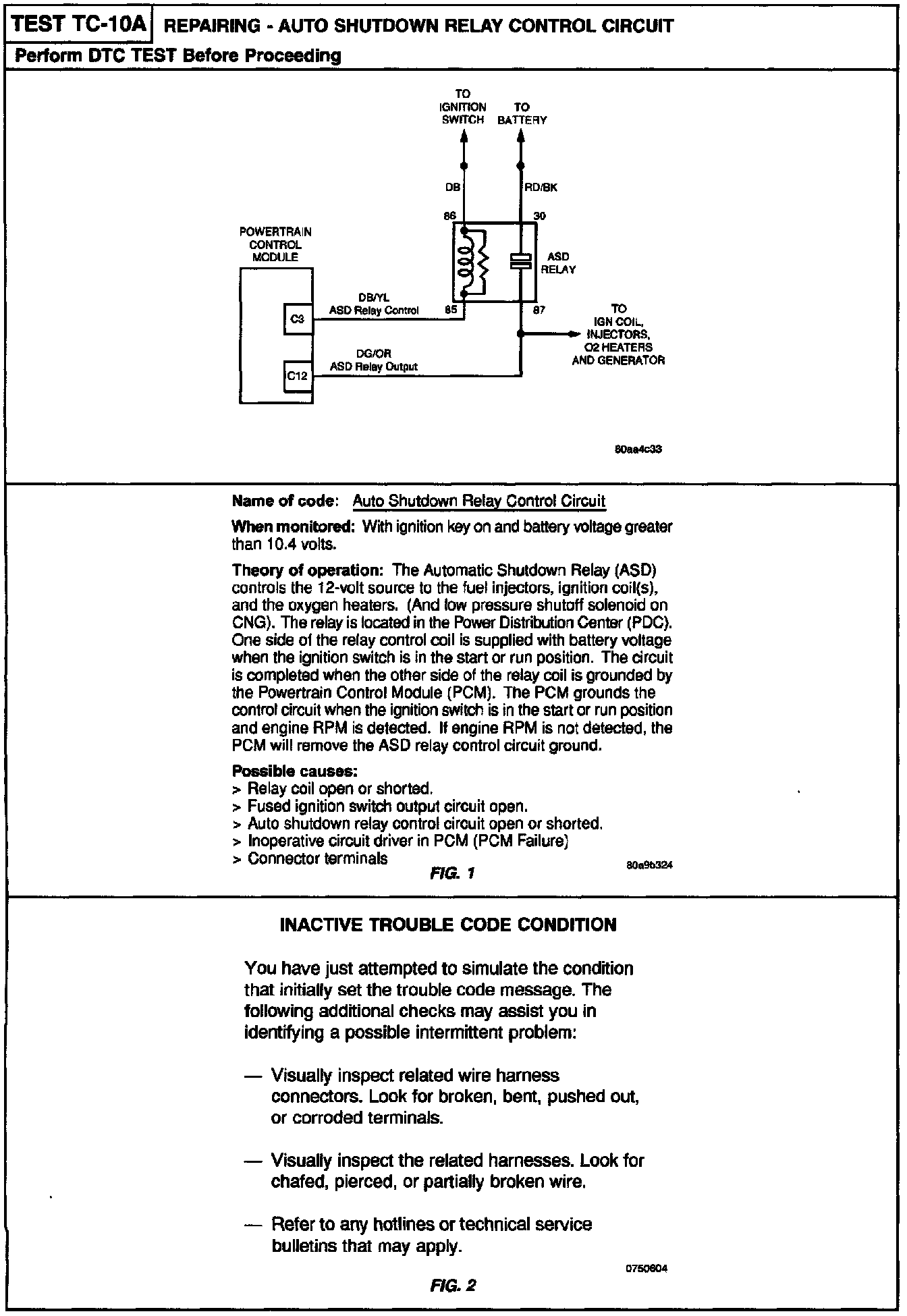

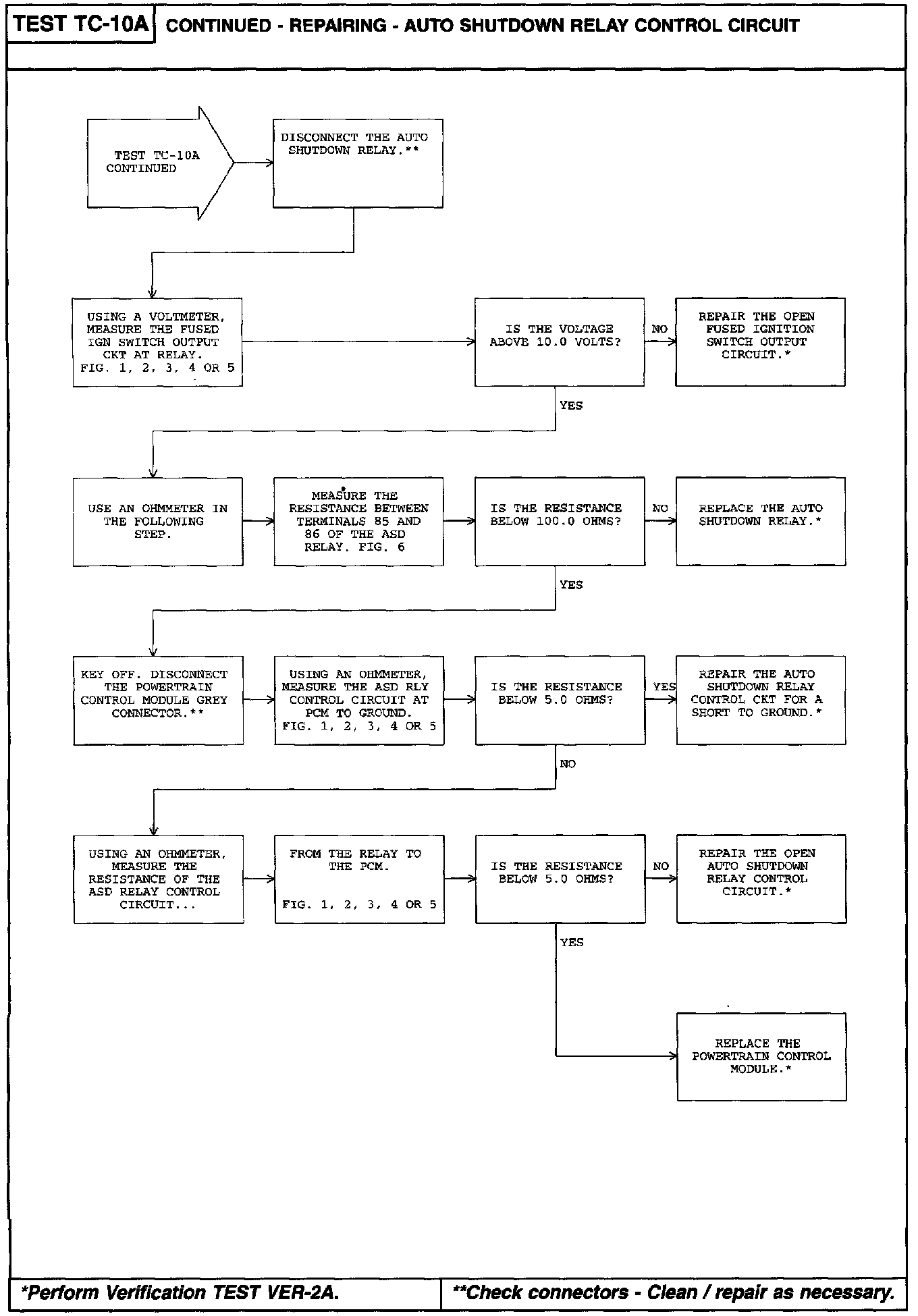

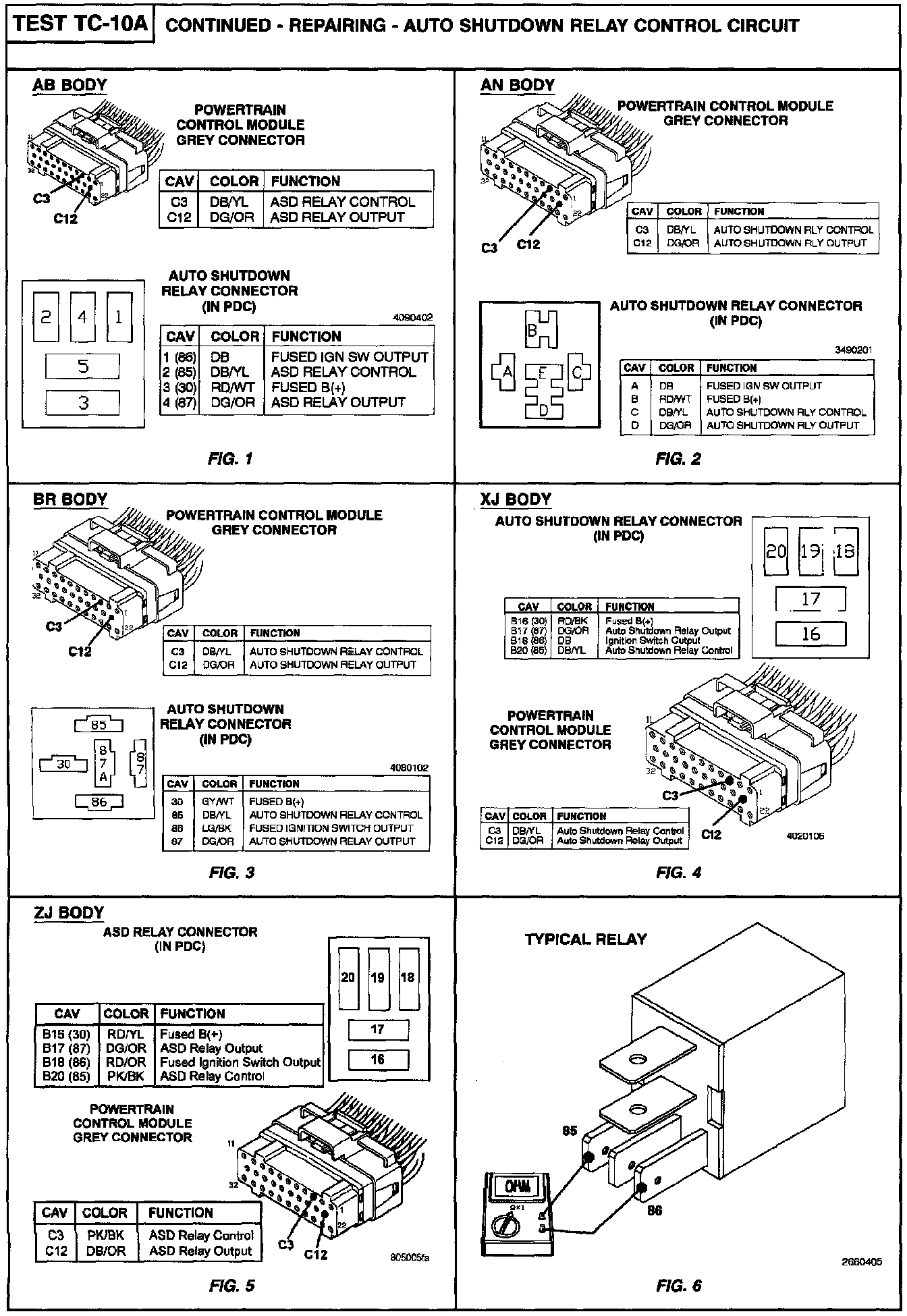

TC-10A Auto Shutdown (ASD) Relay Control Circuit
TC-10A Auto Shutdown (ASD) Relay Control Circuit
