Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

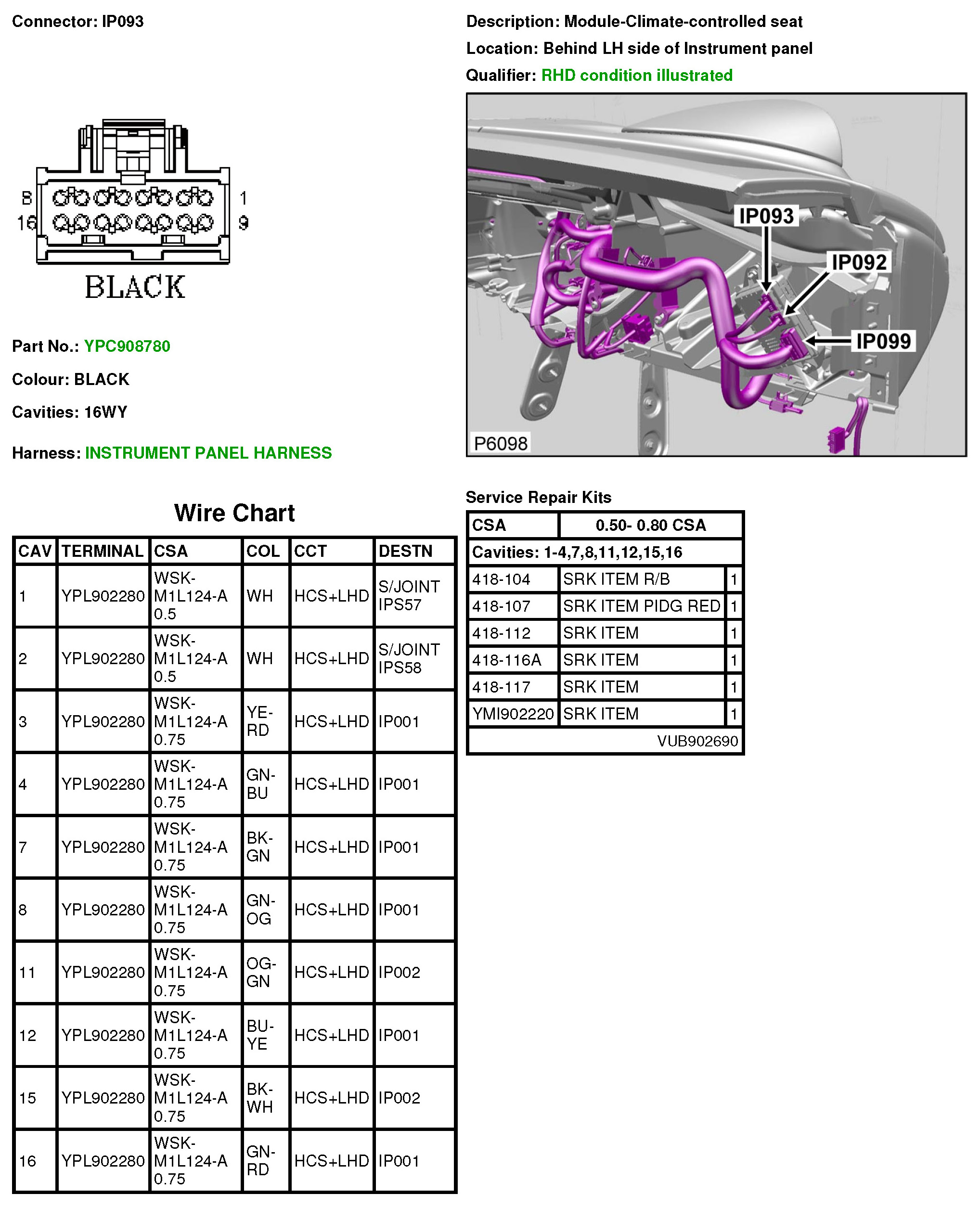

IP093 Module-Climate-Controlled Seat
IP093 Module-Climate-Controlled Seat
IP093
