Jaguar
>>
2012
>>
XJ (X351) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Head Restraint Control Module
>>

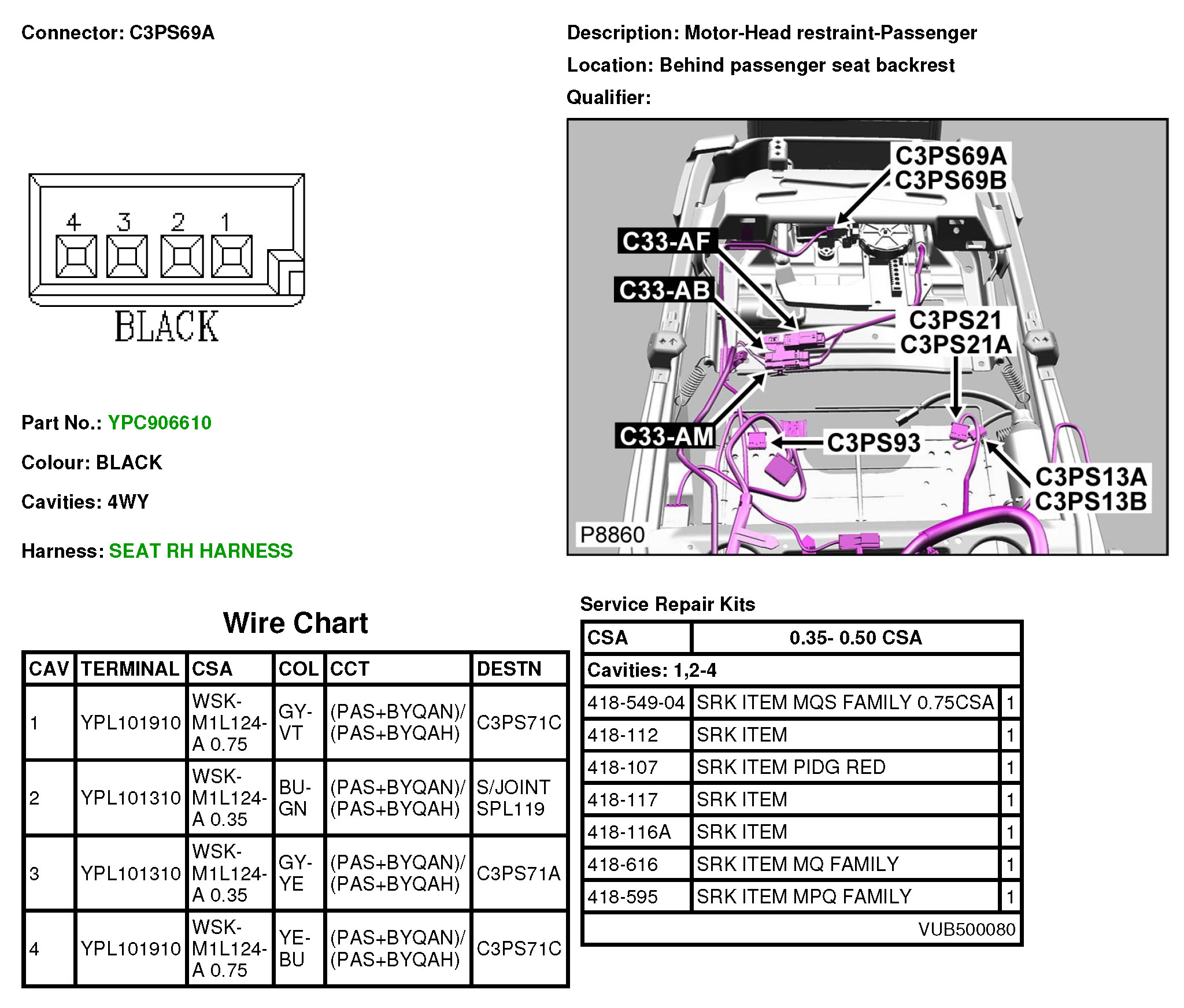

C3PS69A Motor-Head Restraint-Passenger

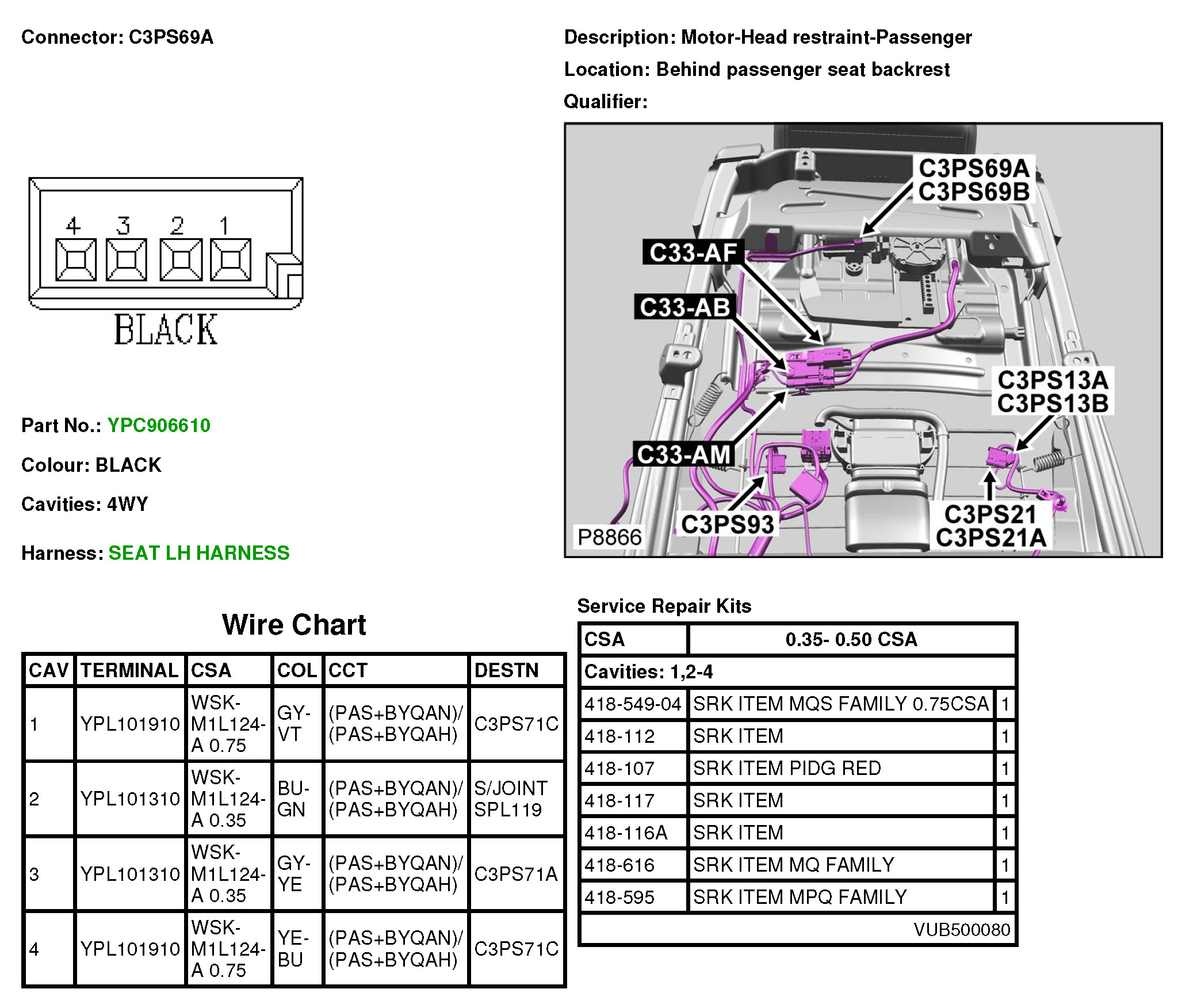

C3PS69A Motor-Head Restraint-Passenger
C3PS69A
