Home >> Jaguar >> 2012 >> XJ (X351) V8-5.0L SC >> Repair and Diagnosis >> Restraints and Safety Systems >> Head Restraint System >> Head Restraint Control Module >> Locations >> C3PS59A Motor-Head Restraint-Driver

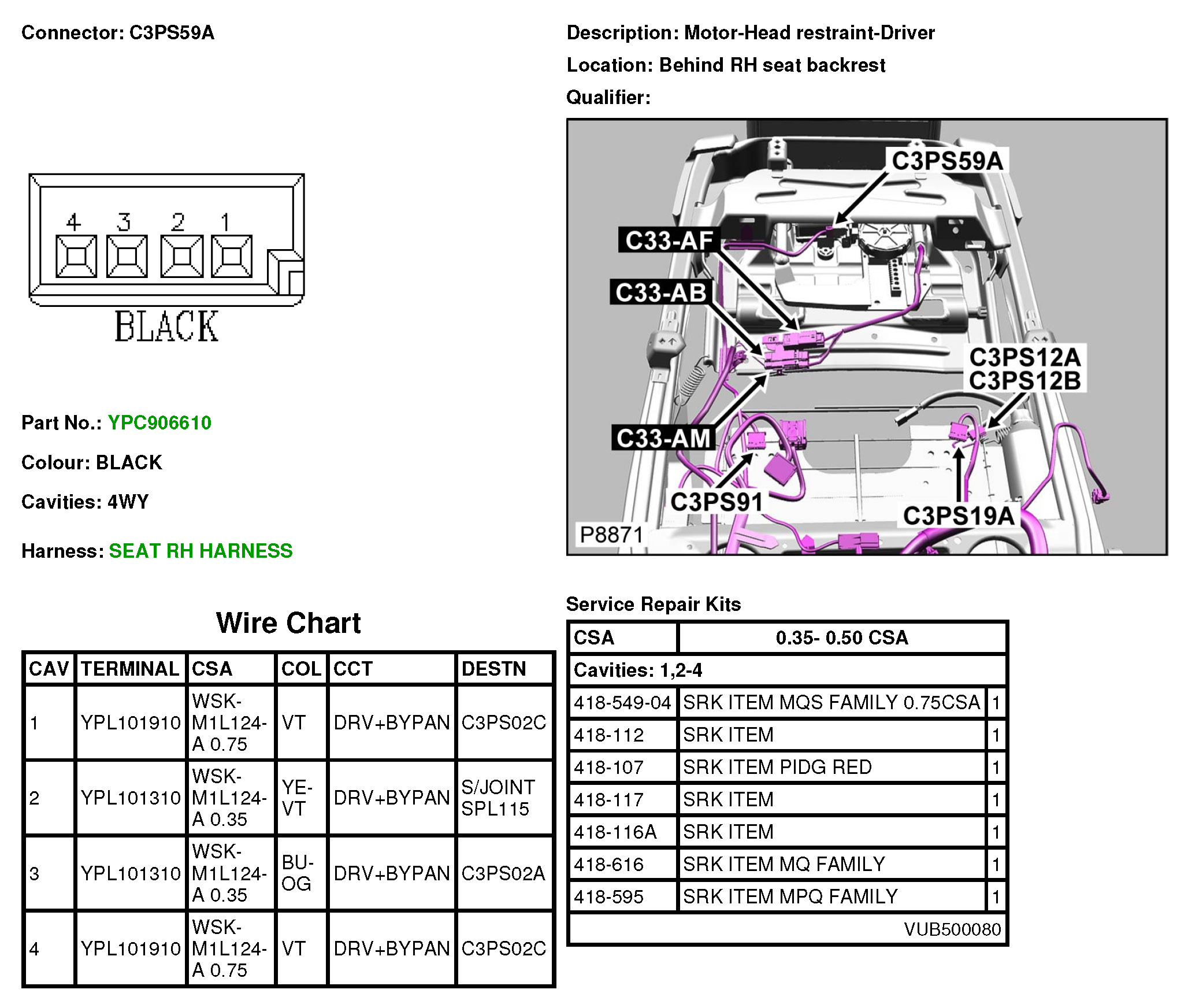

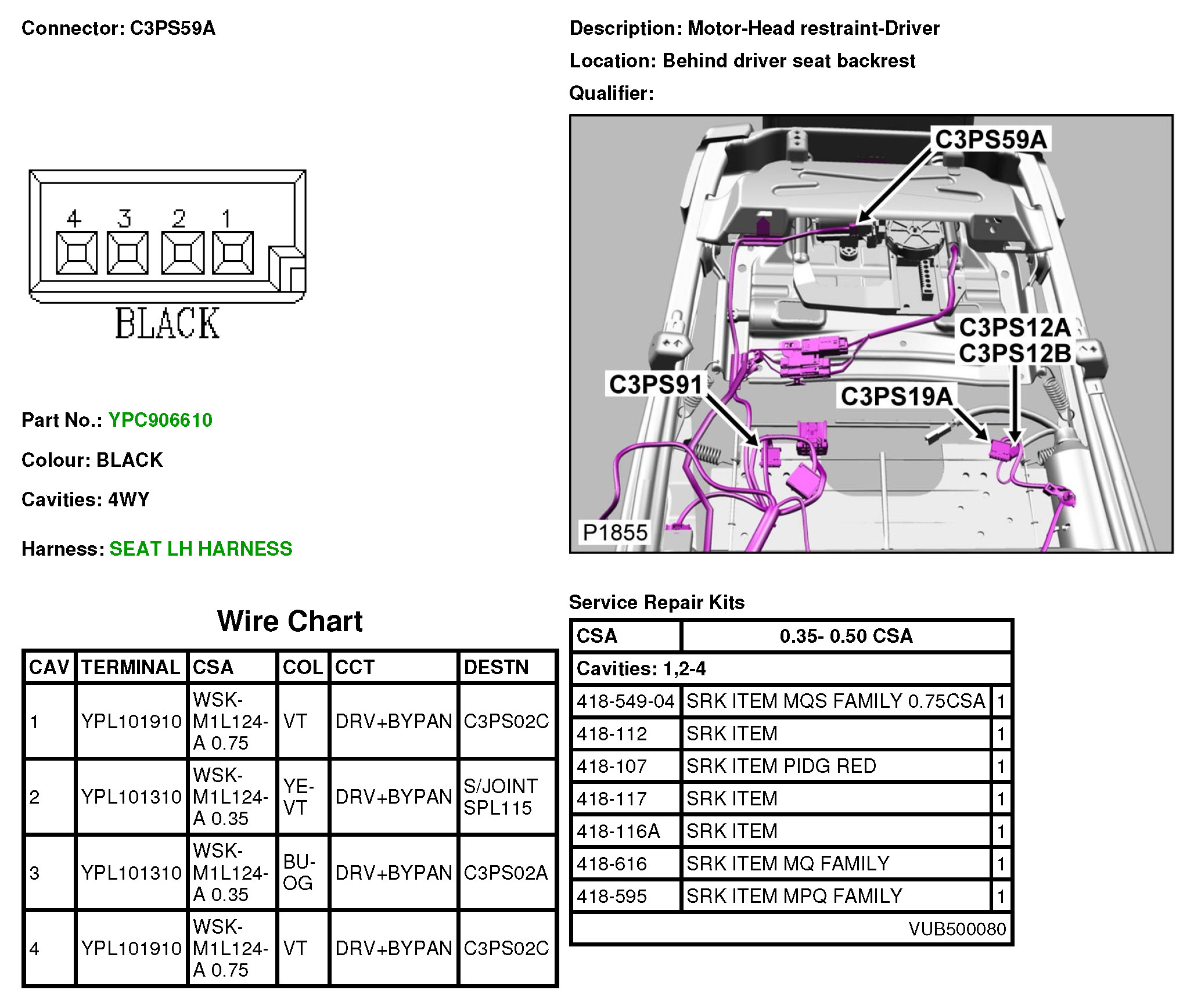

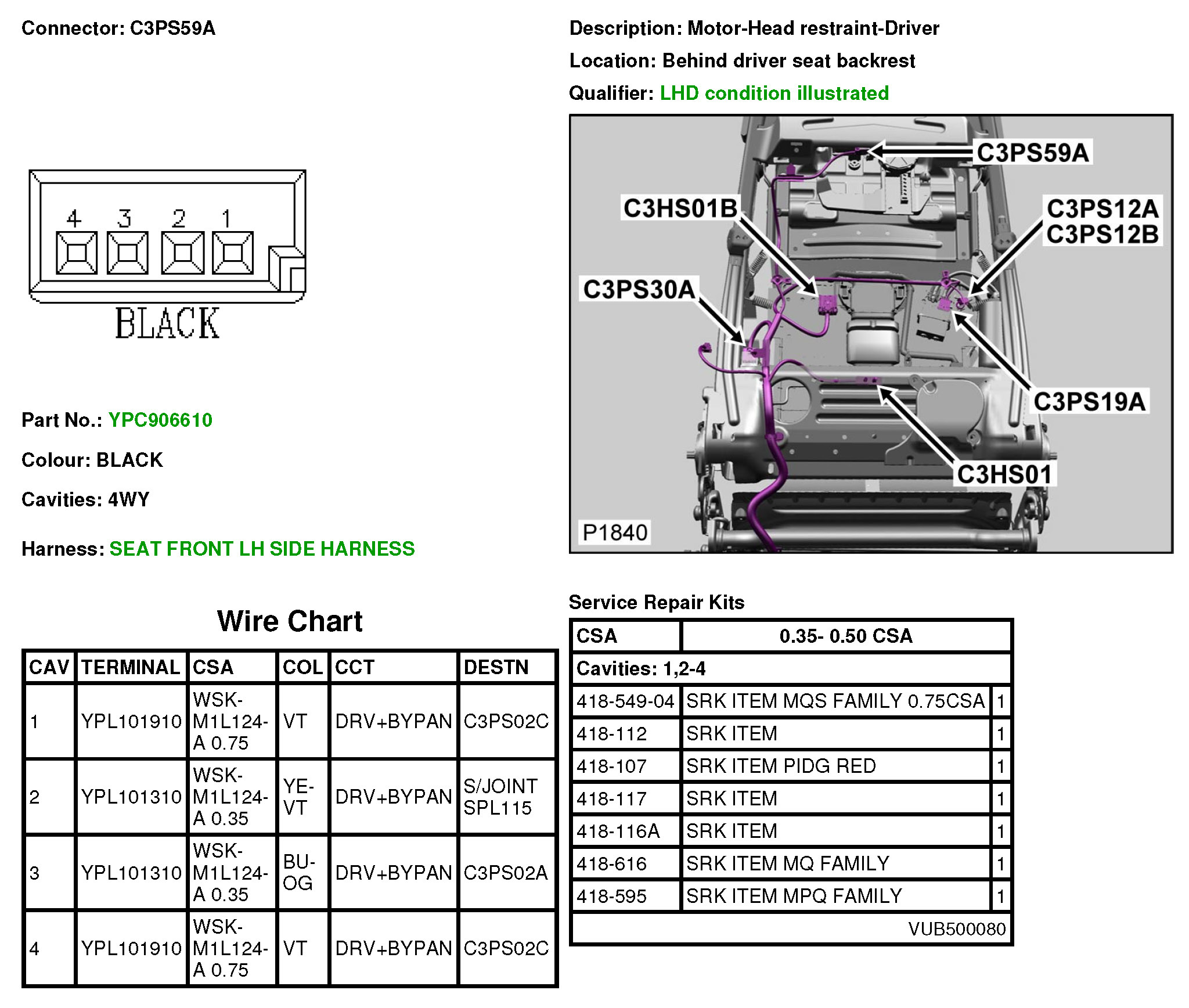

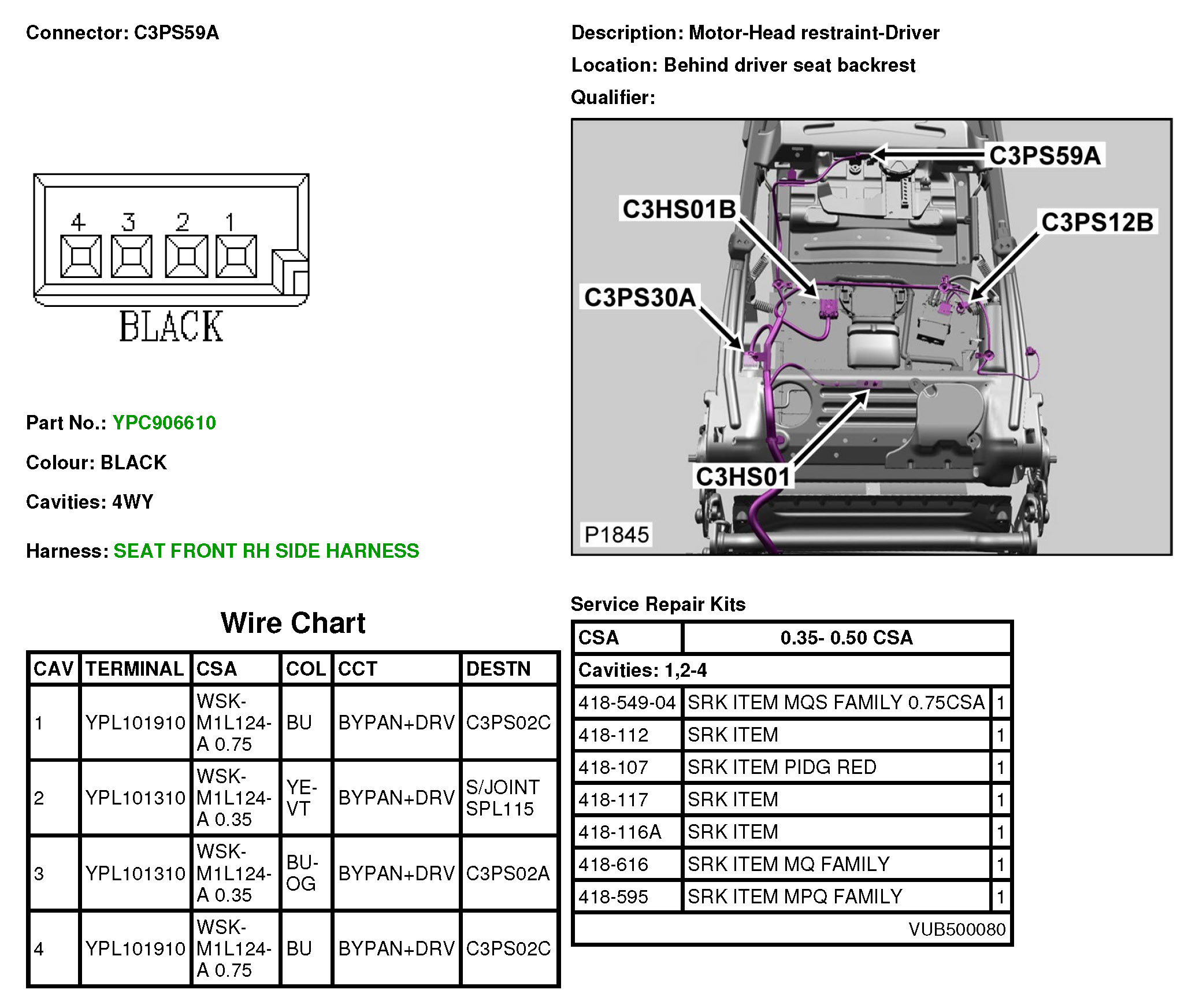

C3PS59A Motor-Head Restraint-Driver



C3PS59A
