Home
>>
Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
>>

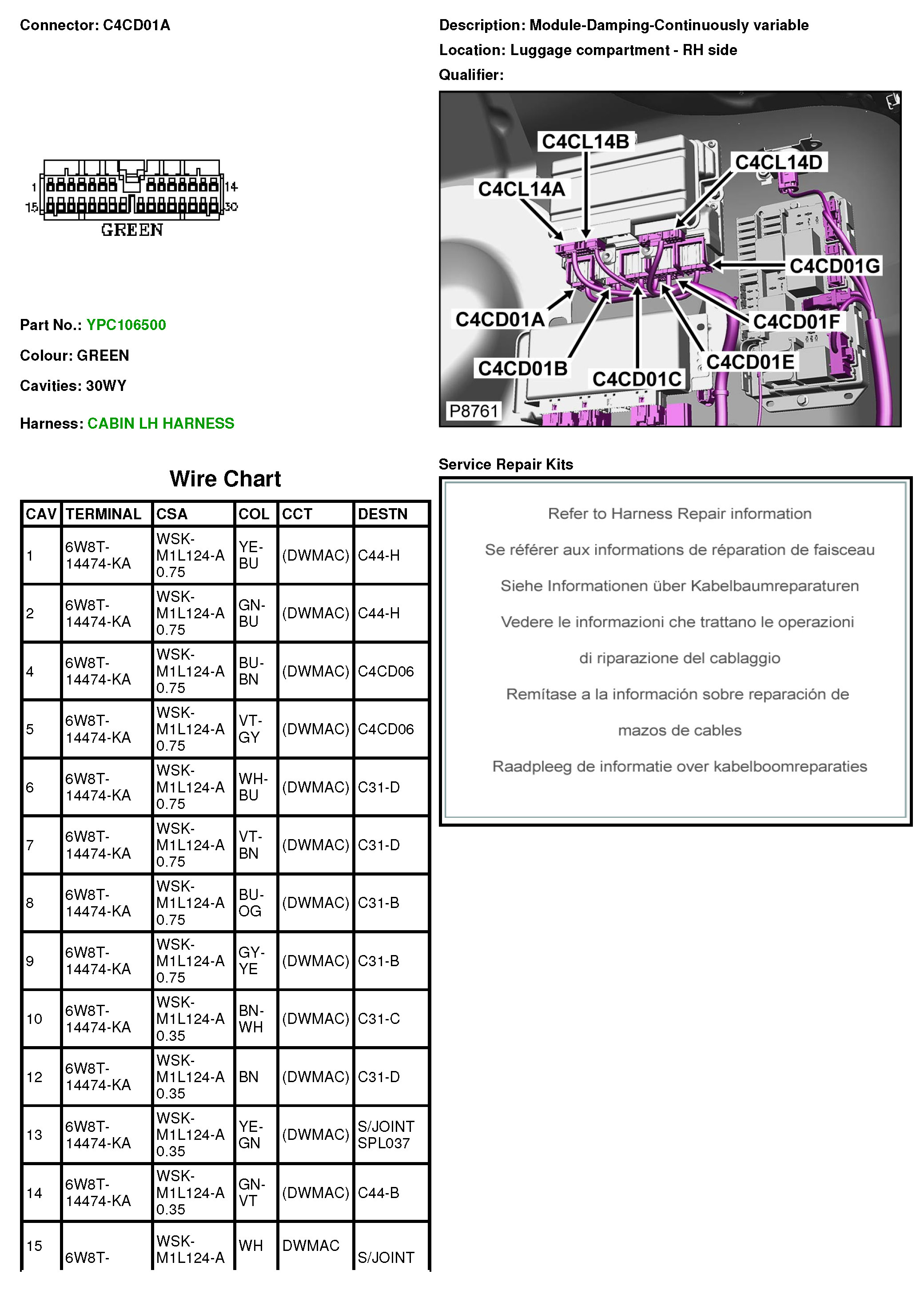

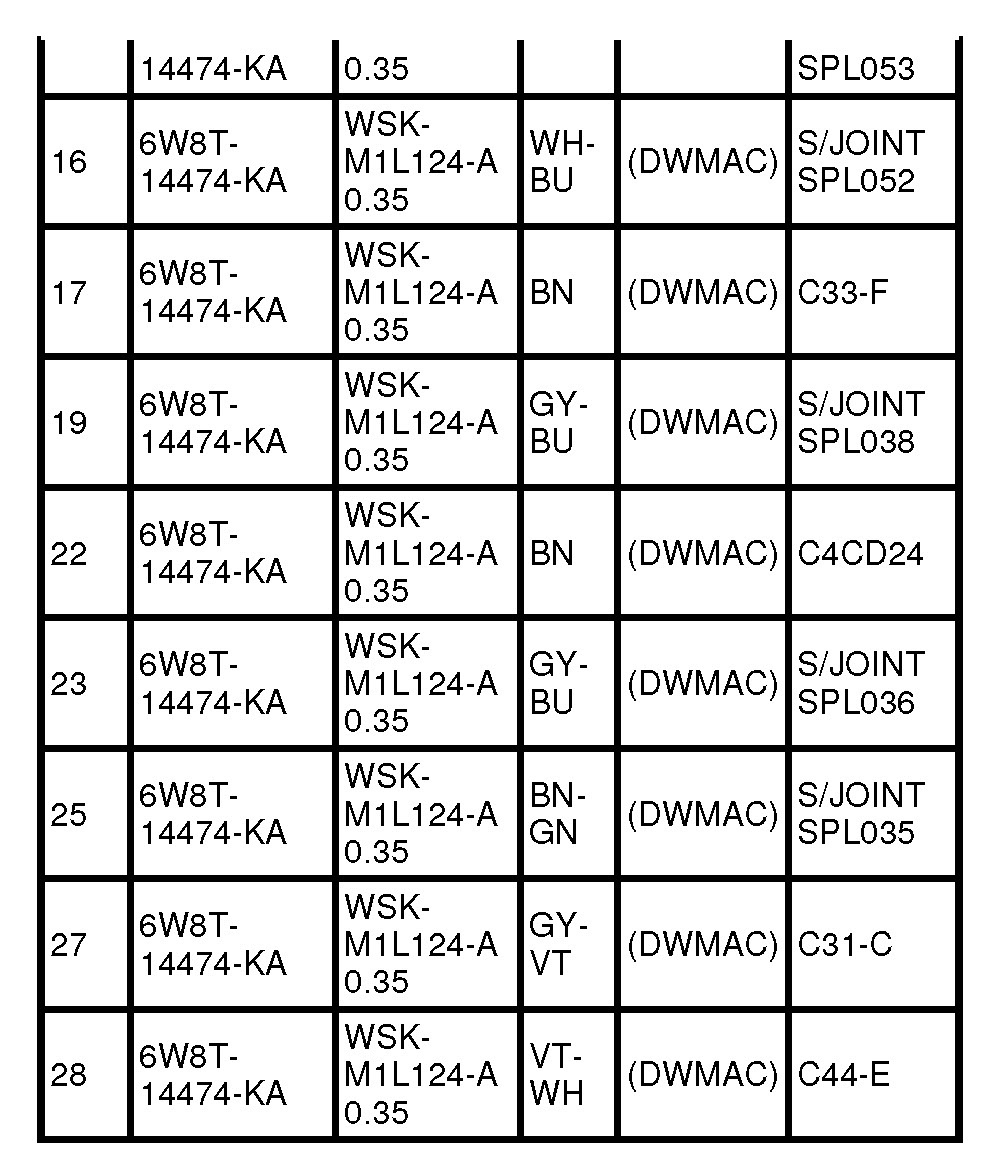

C4CD01A Module-Damping-Continuously Variable
C4CD01A Module-Damping-Continuously Variable
C4CD01A
