Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
>>

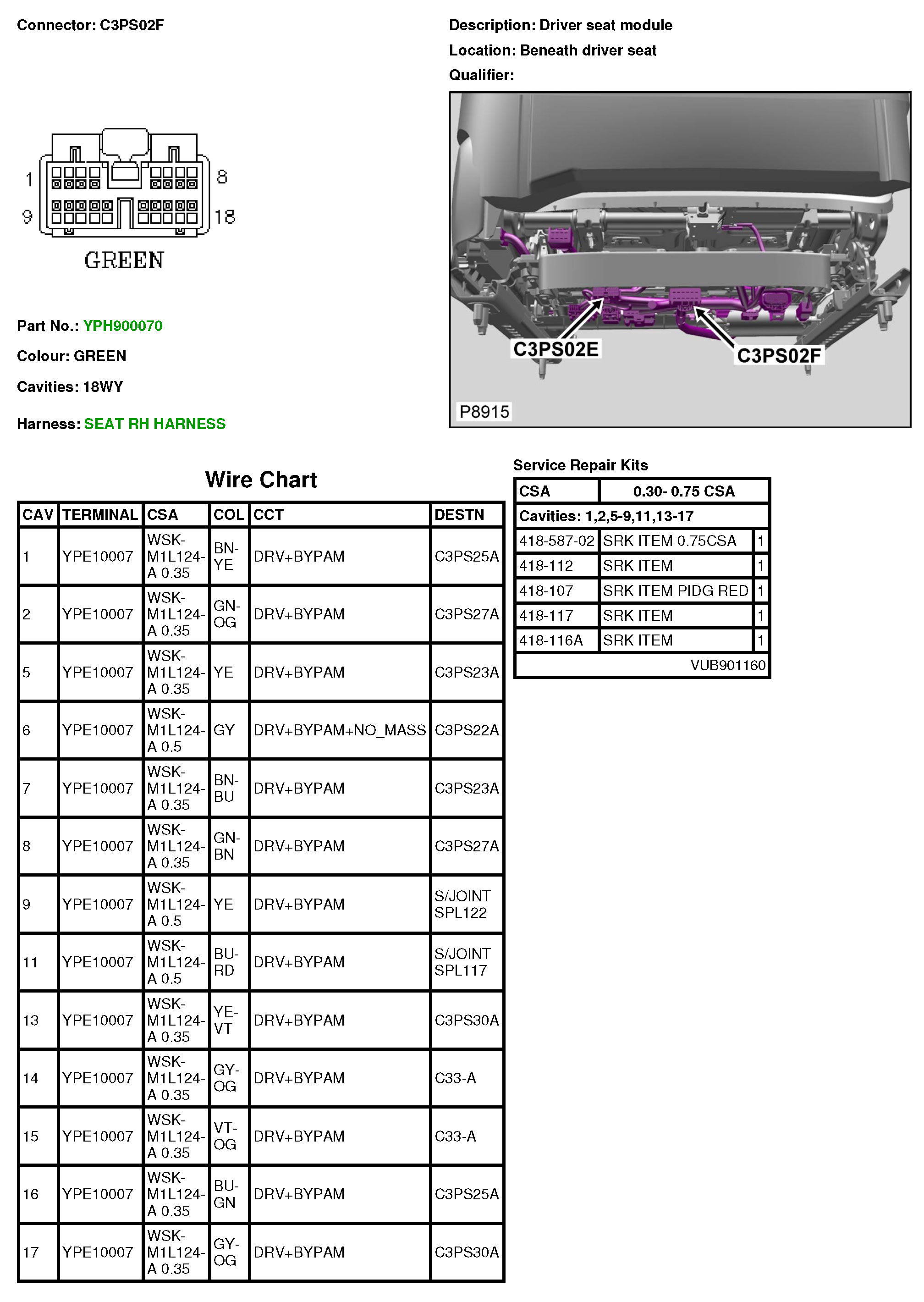

C3PS02F Driver Seat Module

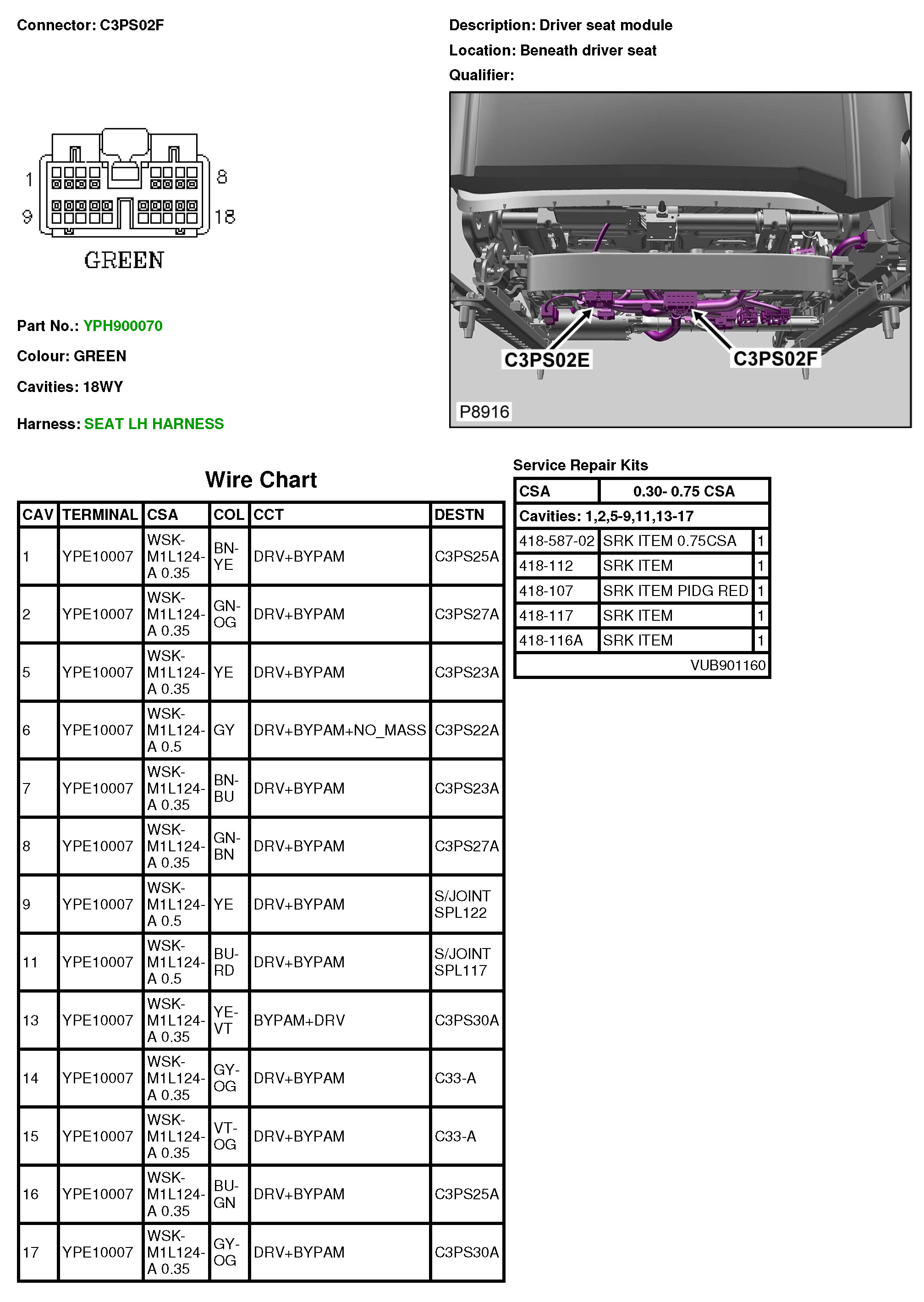

C3PS02F Driver Seat Module
C3PS02F
