XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
>>

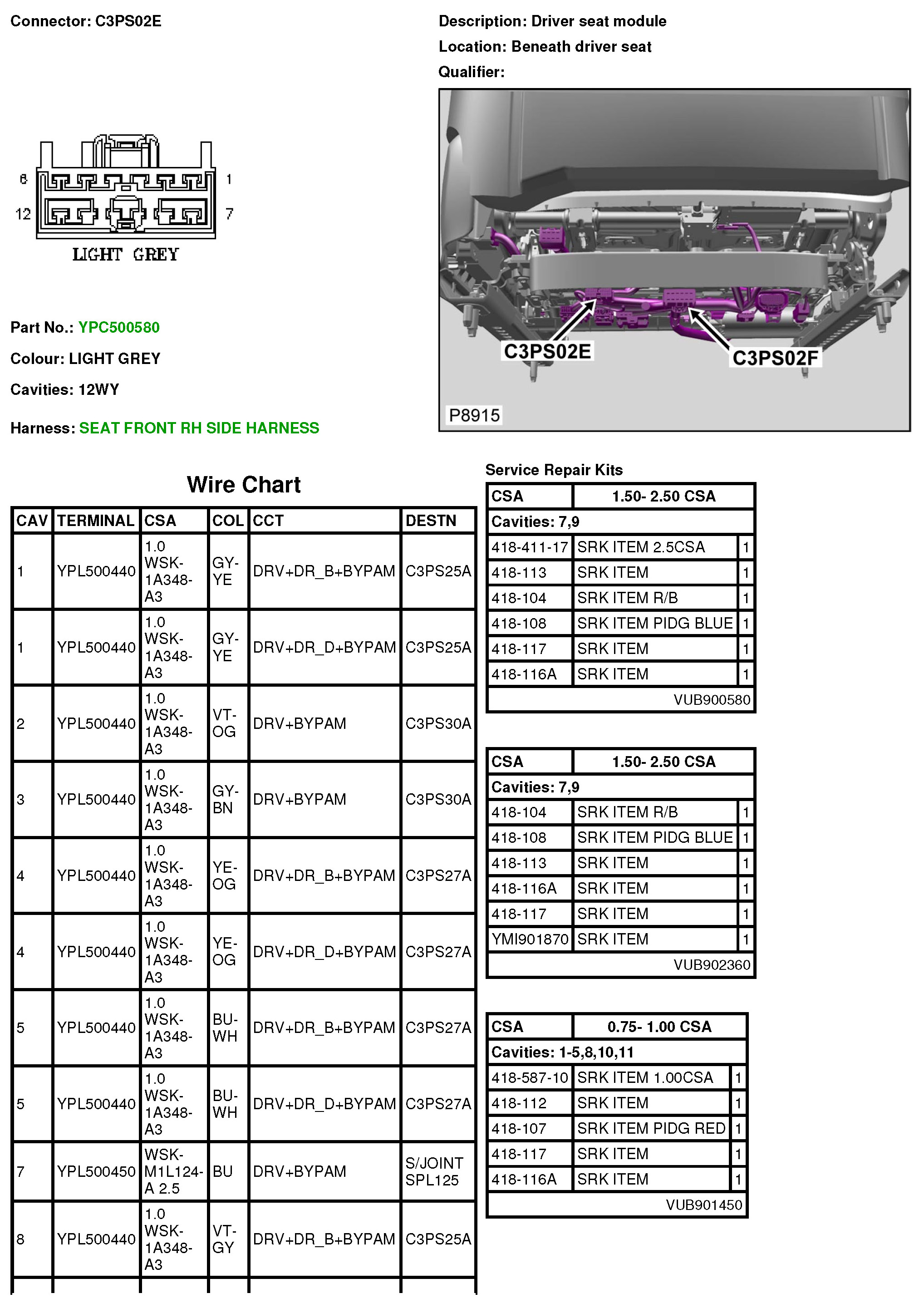

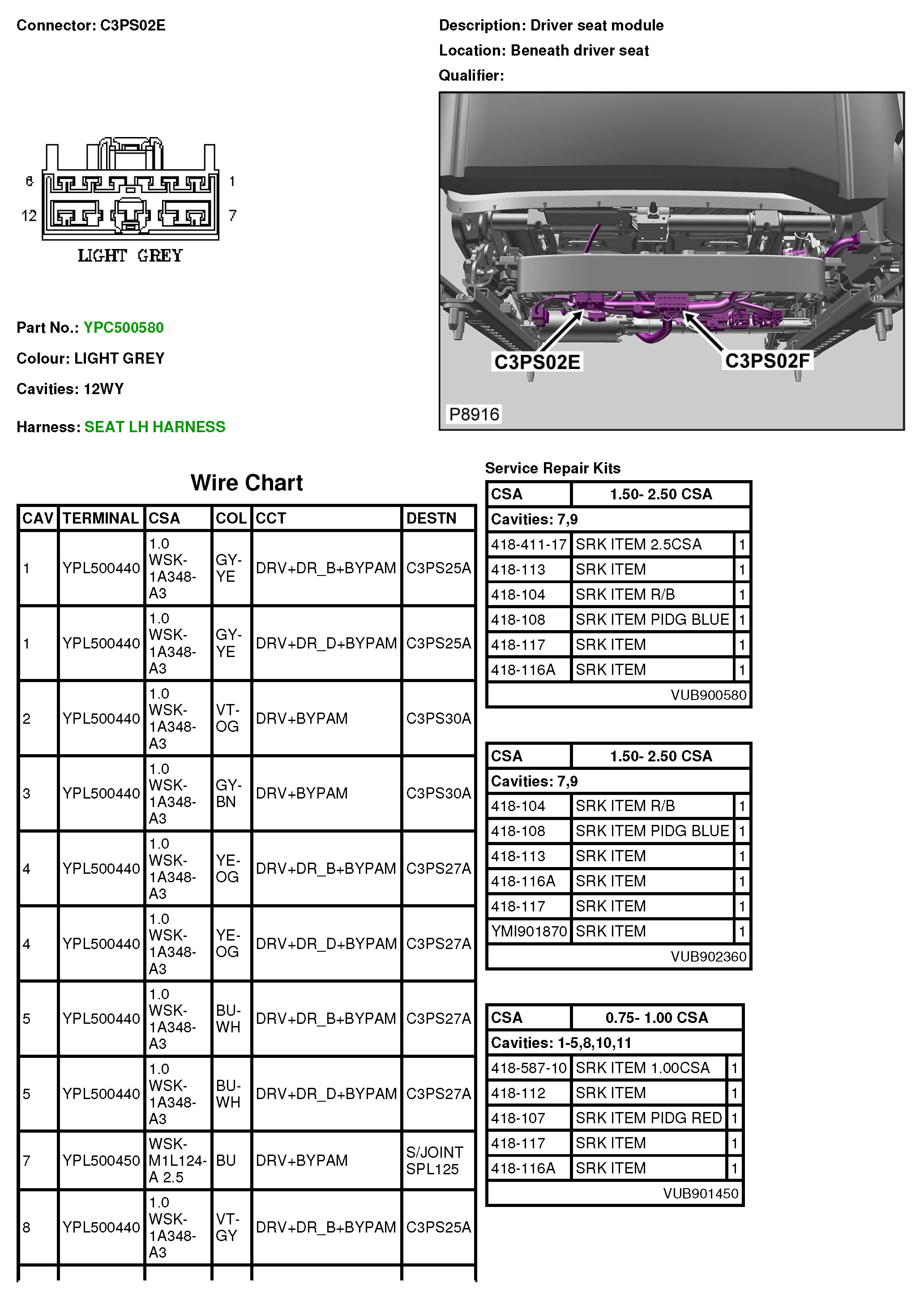

C3PS02E Driver Seat Module
C3PS02E Driver Seat Module
C3PS02E
