Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

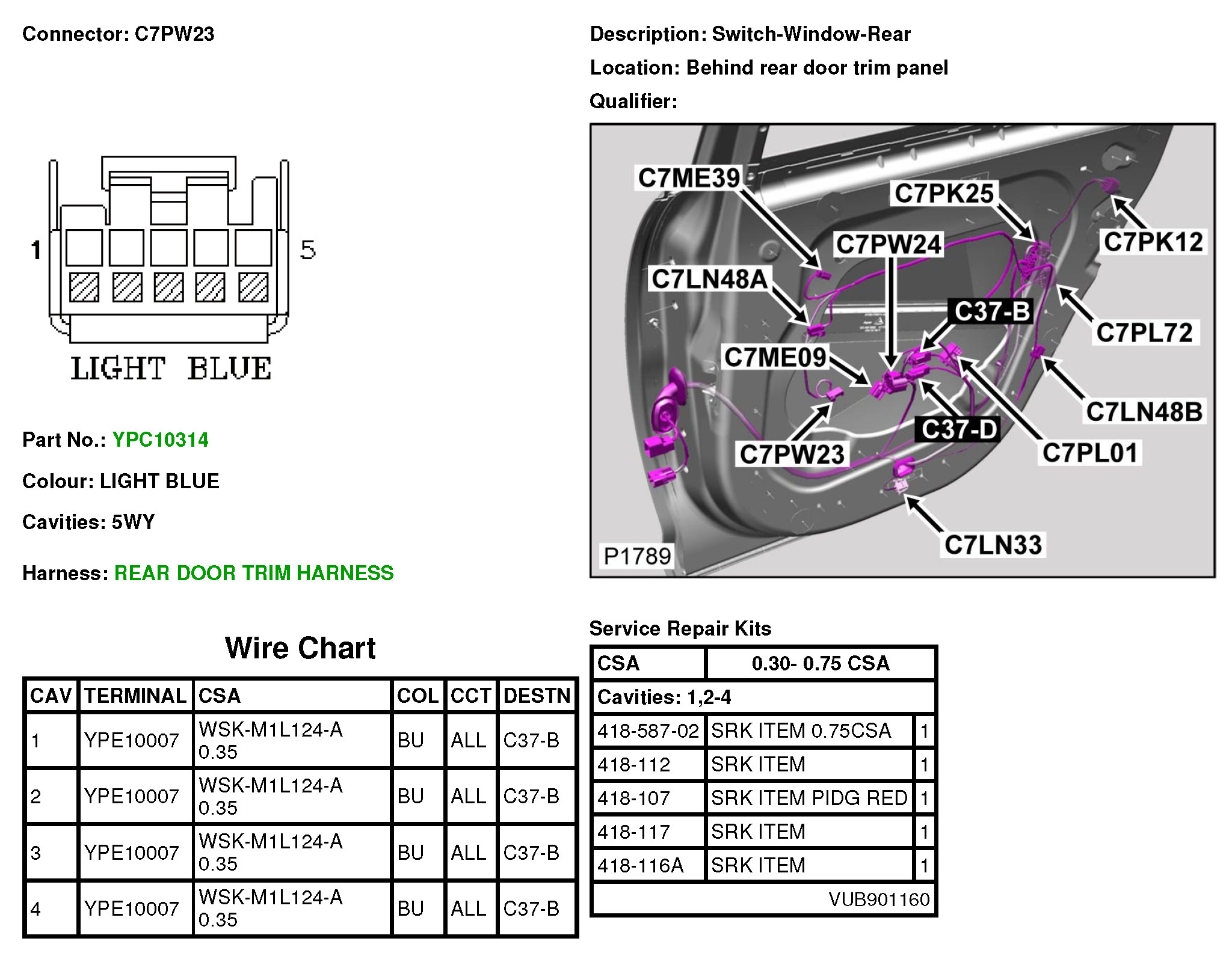

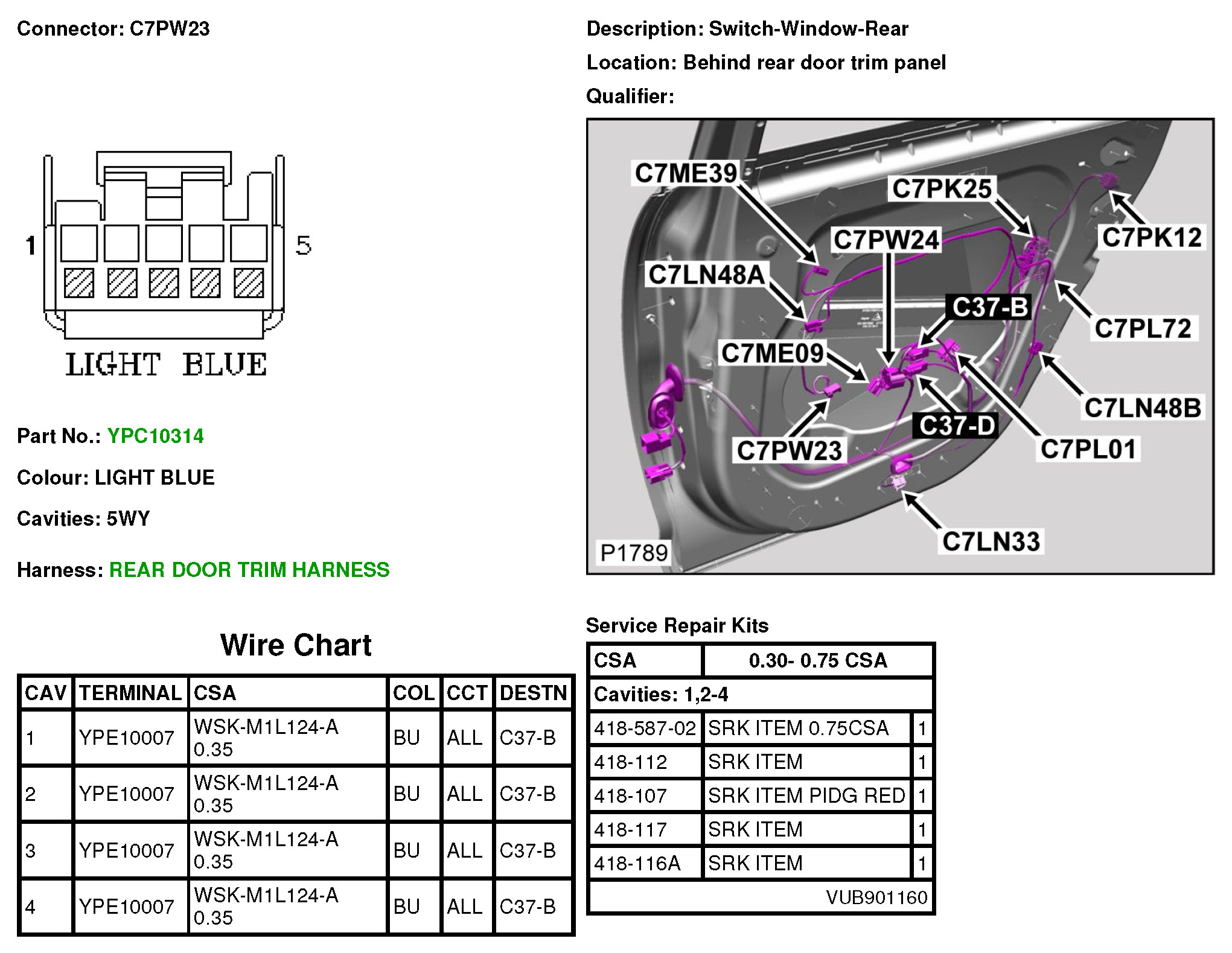

C7PW23 Switch-Window-Rear
C7PW23 Switch-Window-Rear
C7PW23
