XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

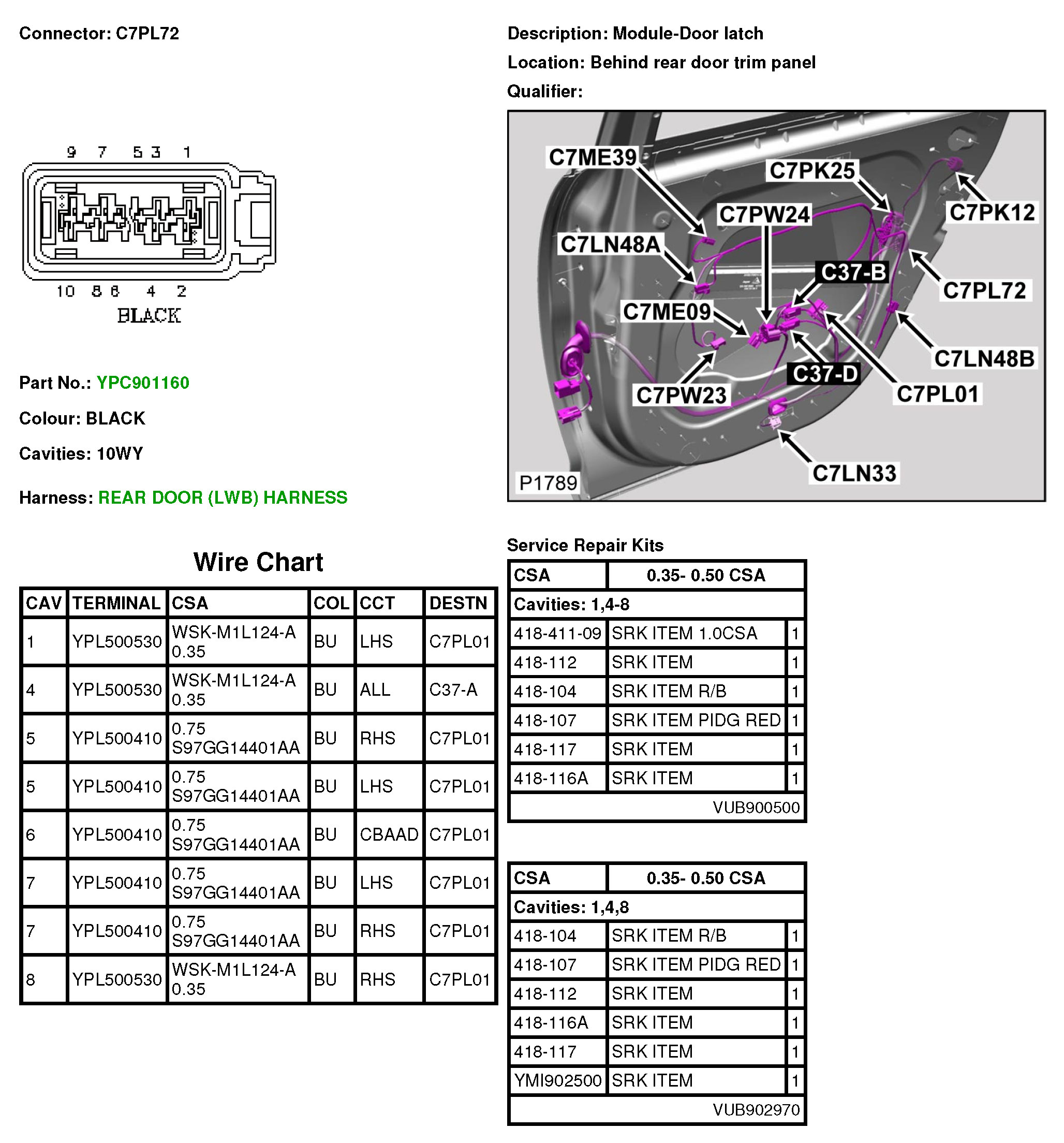

C7PL72 Module-Rear Door Latch
C7PL72 Module-Rear Door Latch
C7PL72
