Home
>>
Jaguar
>>
2012
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Control Module
>>
Diagrams
>>

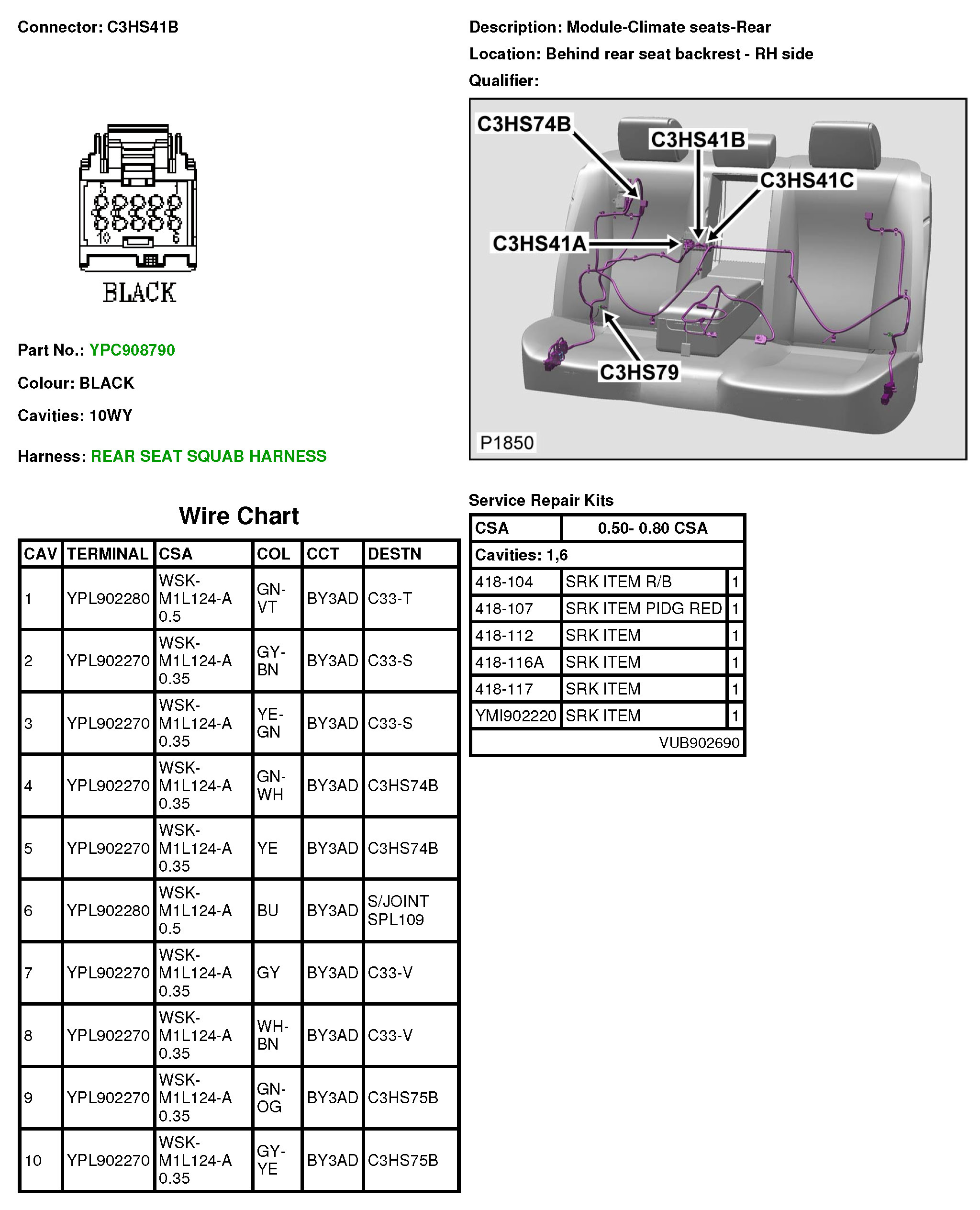

C3HS41B Module-Climate Seats-Rear
C3HS41B Module-Climate Seats-Rear
C3HS41B
