Jaguar
>>
2012
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Module
>>

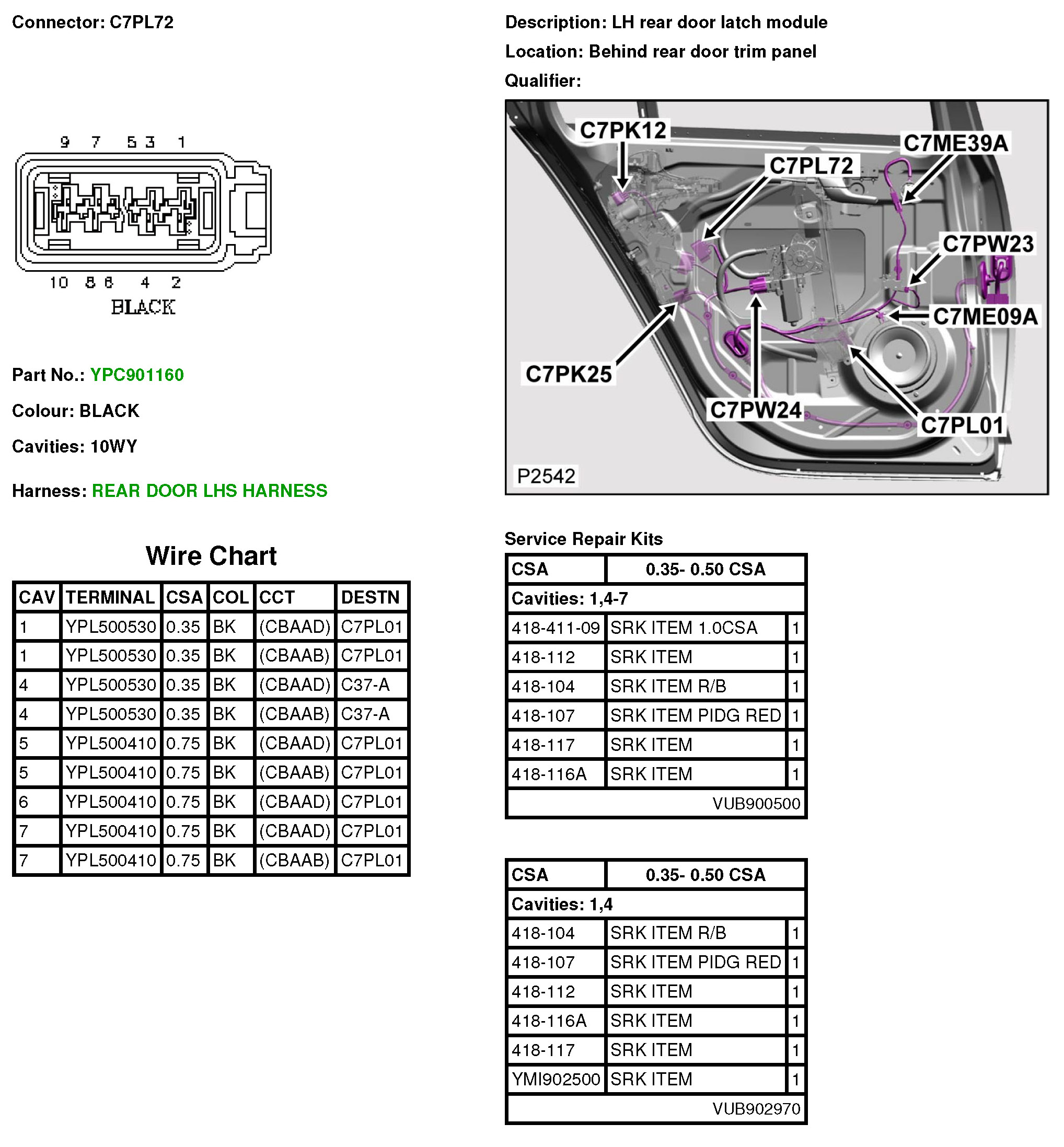

C7PL72 LH Rear Door Latch Module
C7PL72 LH Rear Door Latch Module
C7PL72
