Jaguar
>>
2012
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
>>

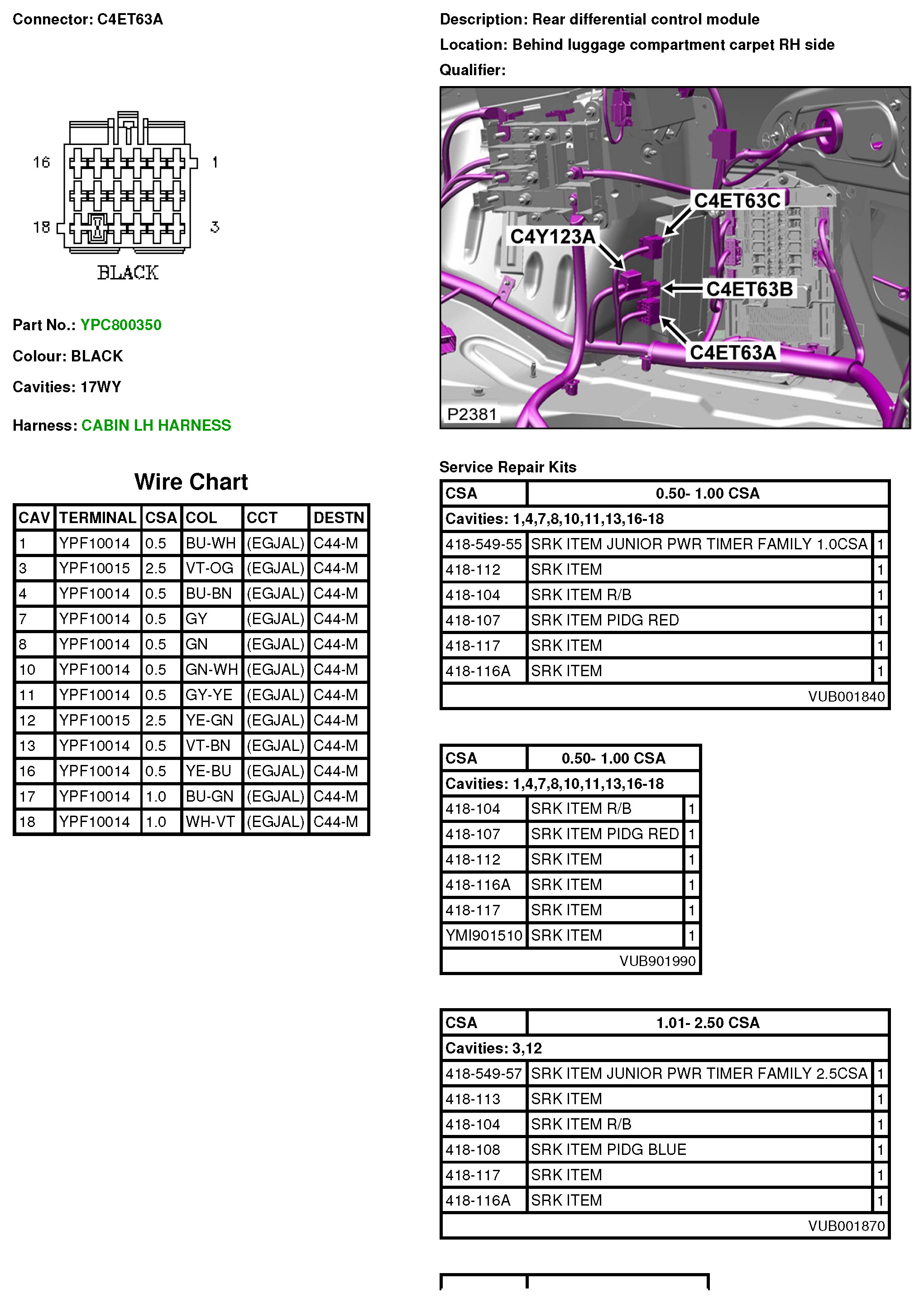

C4ET63A Rear Differential Control Module
C4ET63A Rear Differential Control Module
C4ET63A
