Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

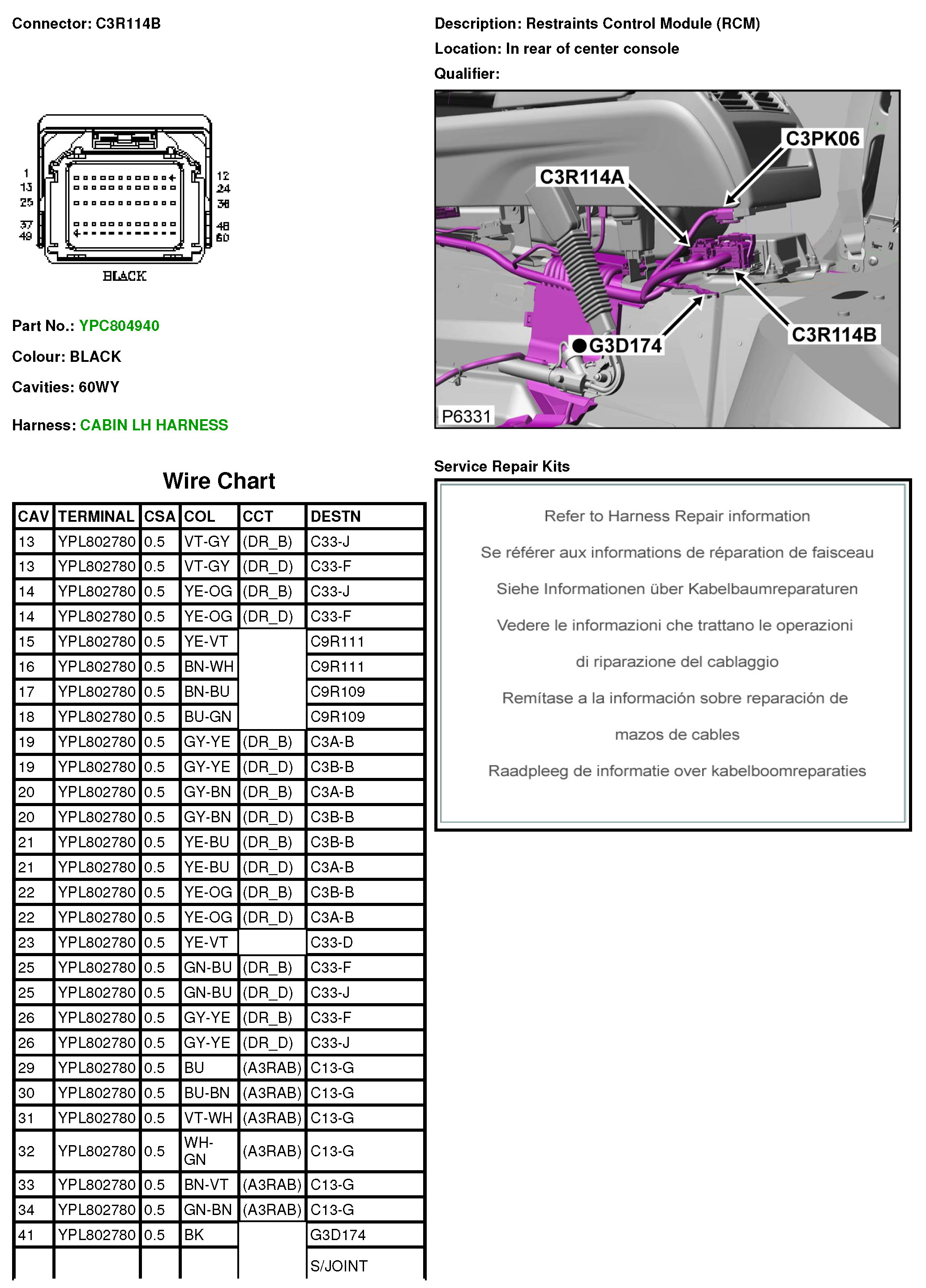

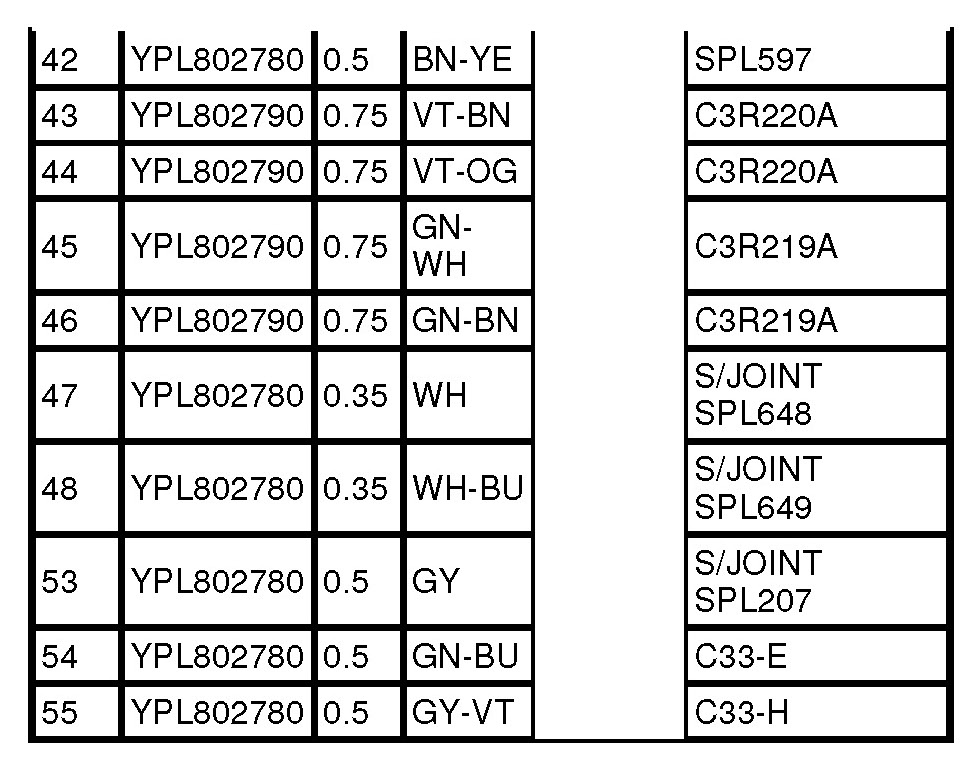

C3R114B Restraints Control Module (RCM)
C3R114B Restraints Control Module (RCM)
C3R114B
