Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Signal Processing Module
>>

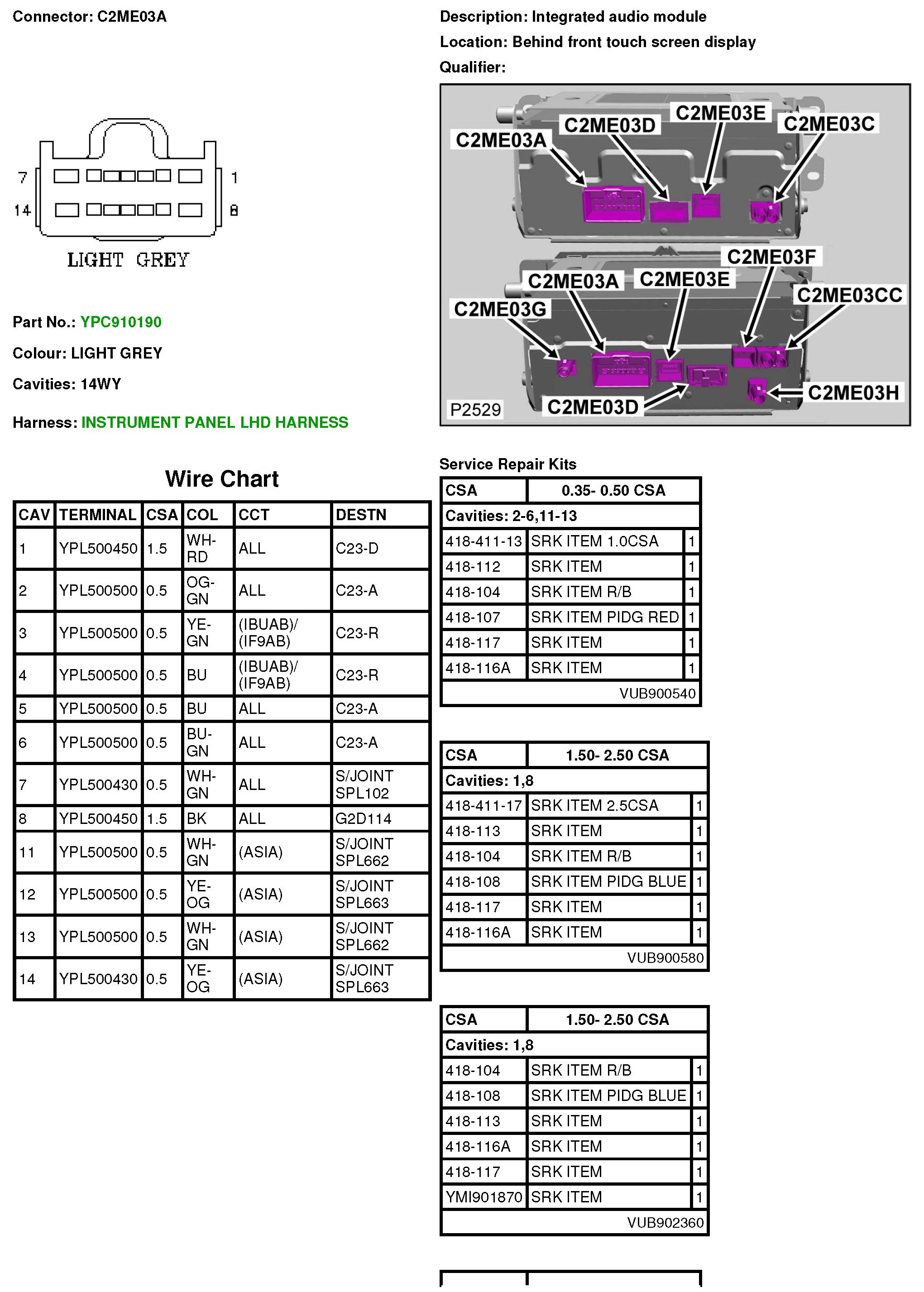

C2ME03A Integrated Audio Module
C2ME03A Integrated Audio Module
C2ME03A
