Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Temperature Sensor/Switch, Engine
>>

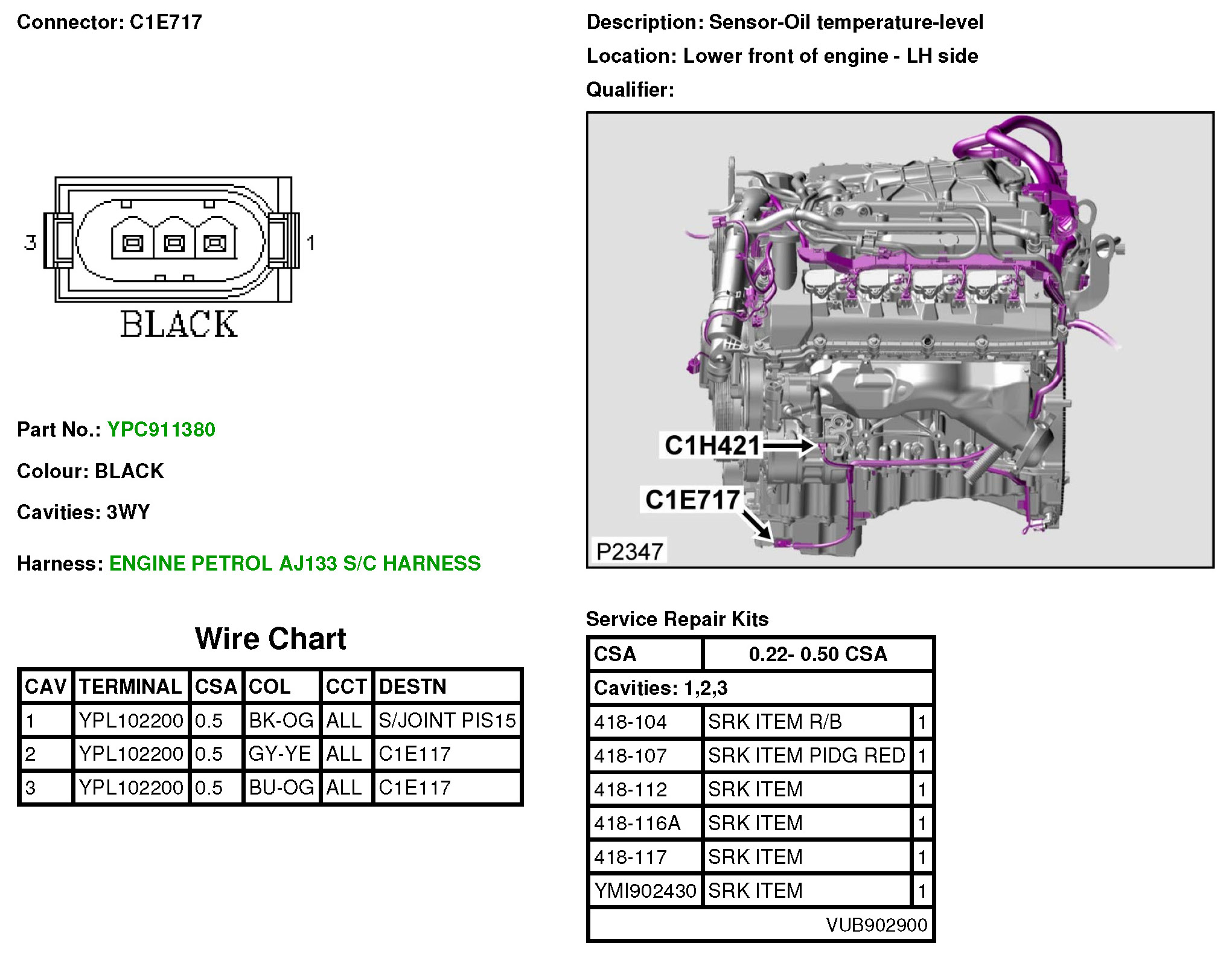

C1E717 Sensor-Oil Temperature-level

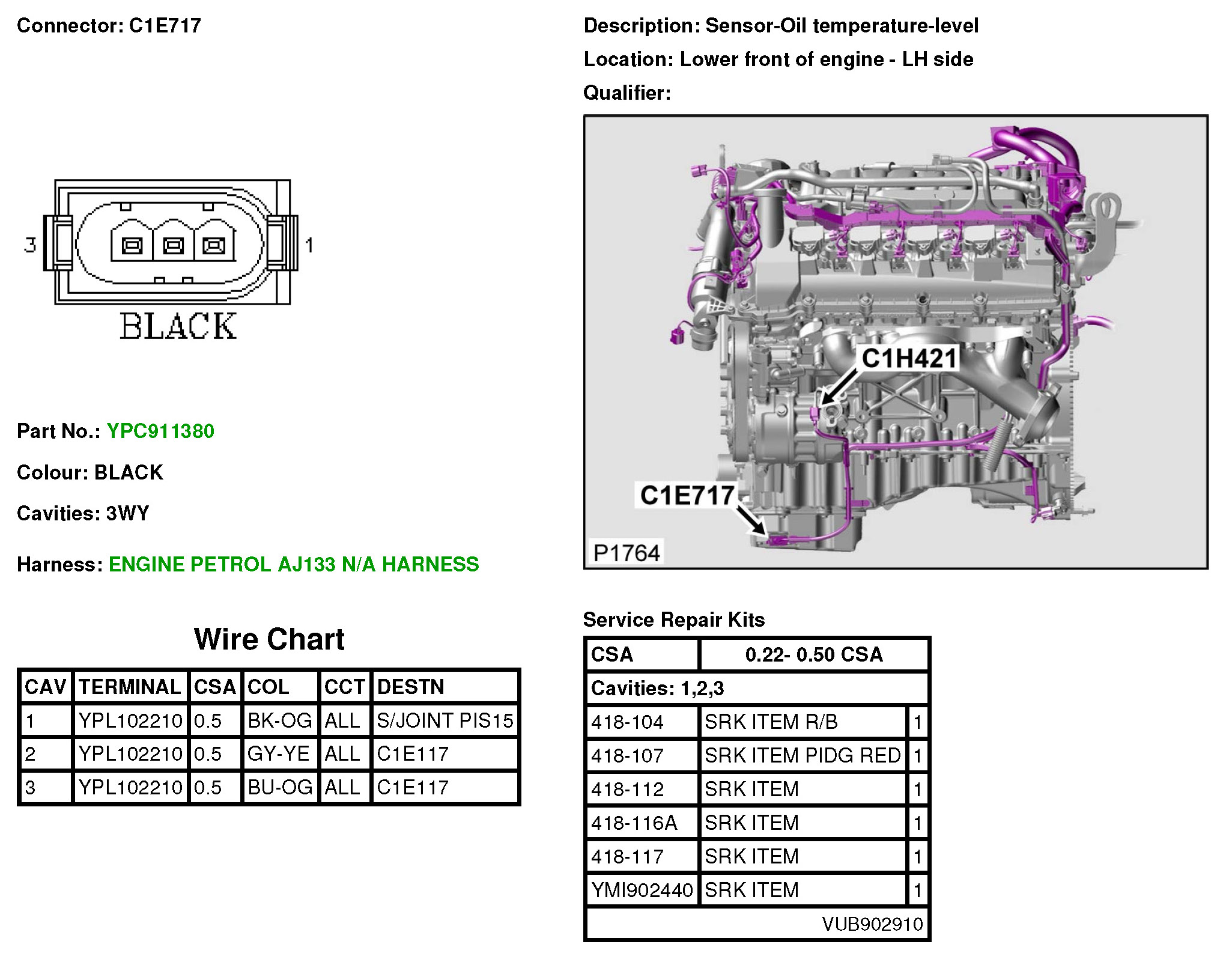

C1E717 Sensor-Oil Temperature-level
C1E717
