Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Impact Sensor
>>

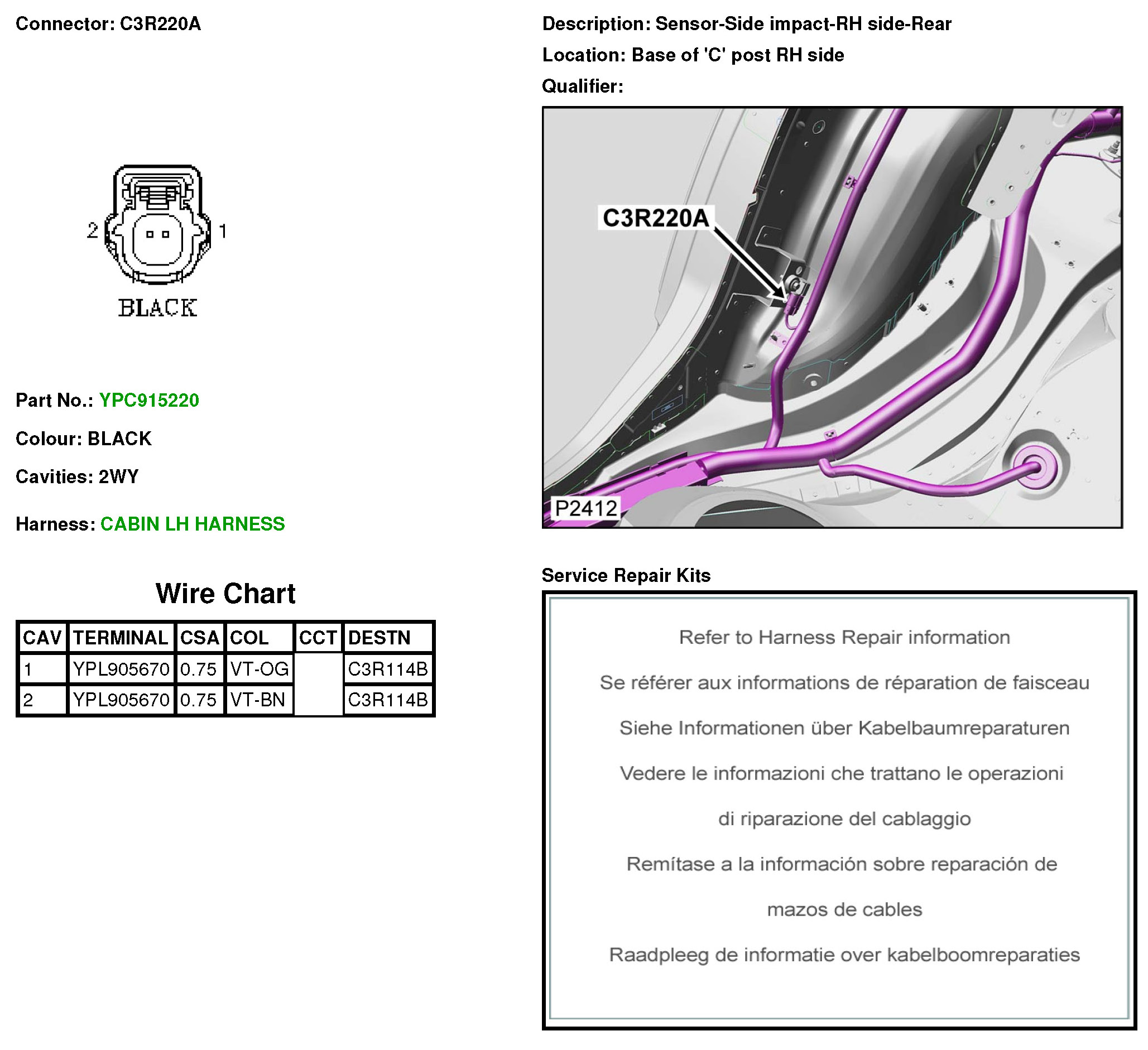

C3R220A Sensor-Side Impact-RH Side-Rear
C3R220A Sensor-Side Impact-RH Side-Rear
C3R220A
