Head Restraint Control Module
>>

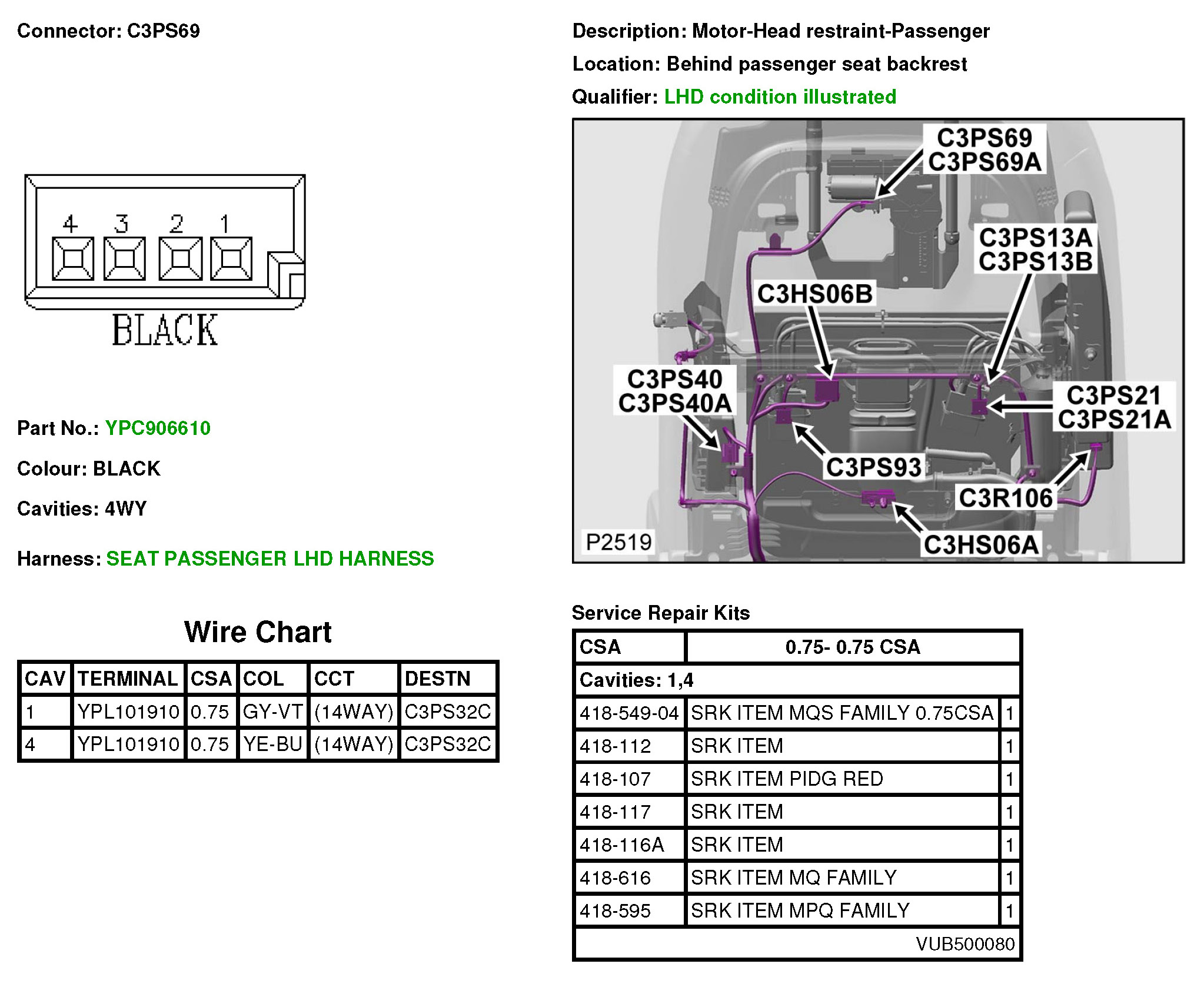

C3PS69 Motor-Head Restraint-Passenger
C3PS69 Motor-Head Restraint-Passenger
C3PS69
