Home >> Jaguar >> 2009 >> XK (X150) V8-4.2L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

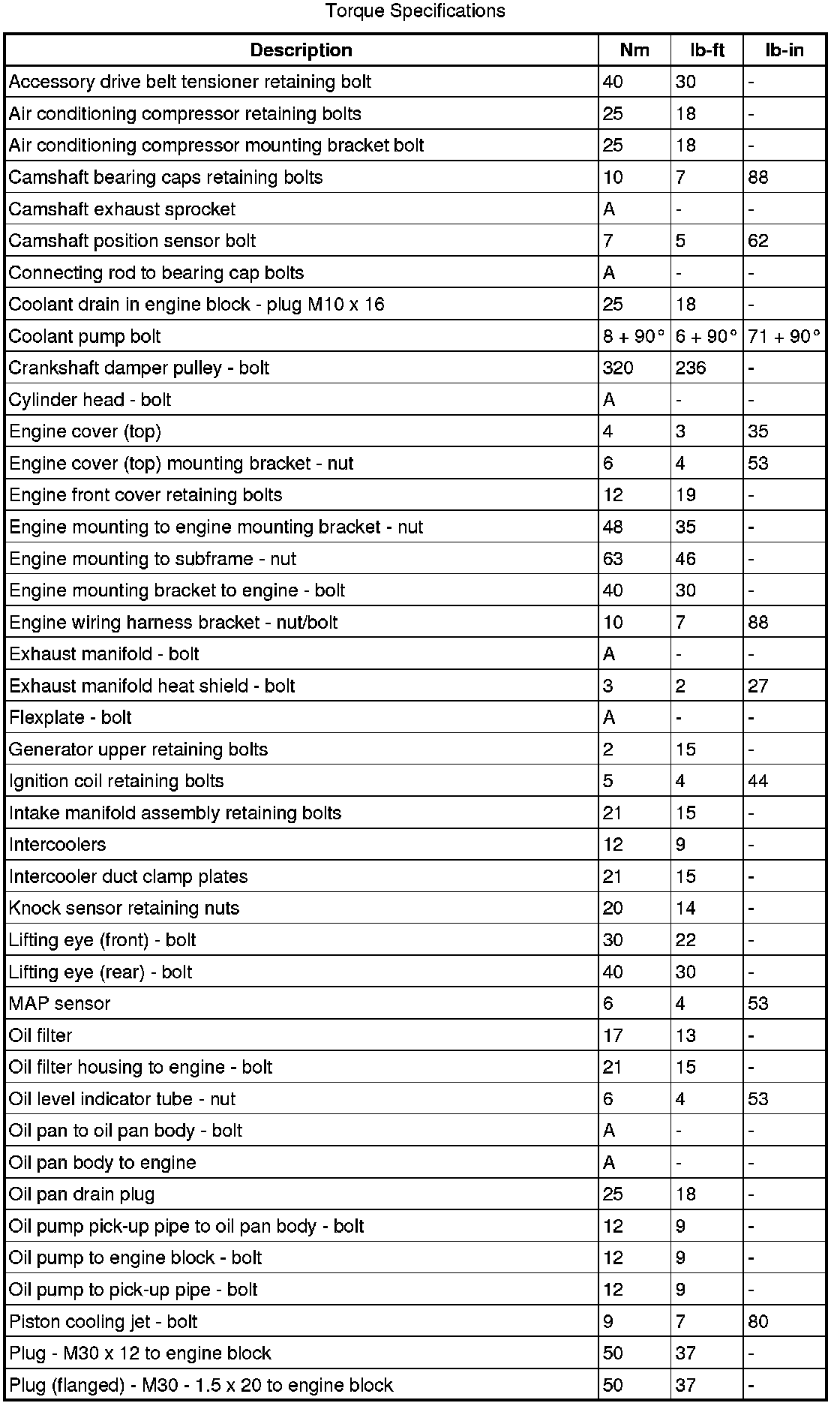

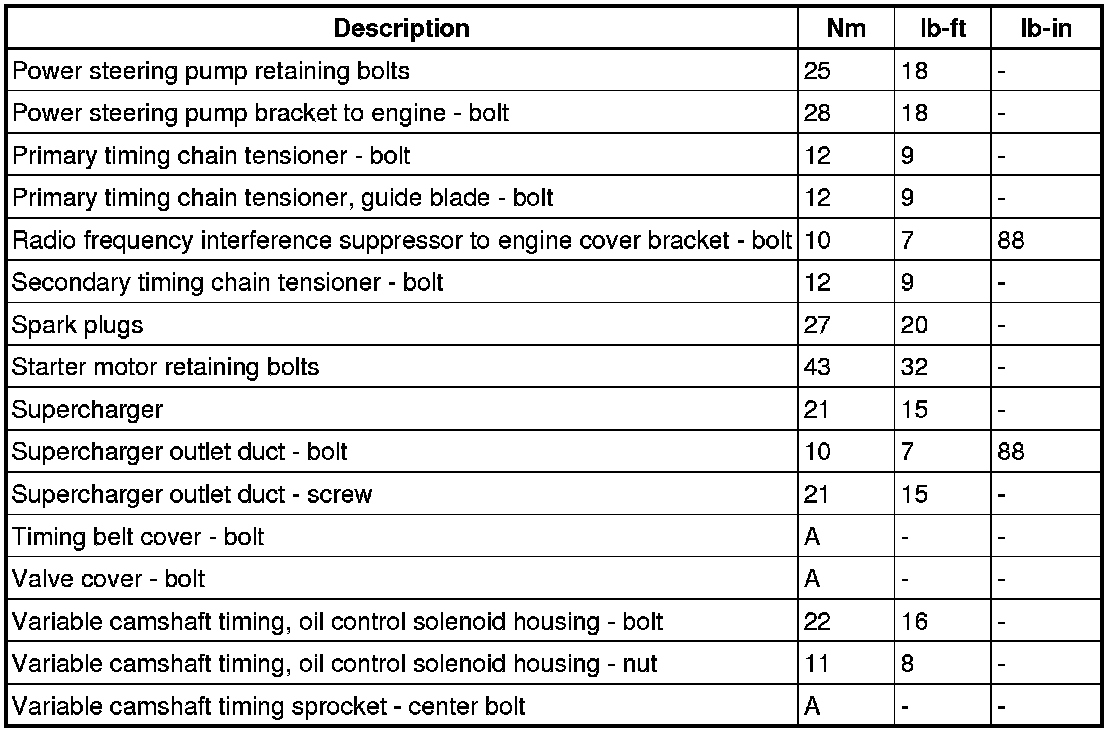

Specifications






































A = refer to procedure for correct torque sequence
