Electronic Brake Control Module
Electronic Brake Control Module
Control Module
Pin Identification

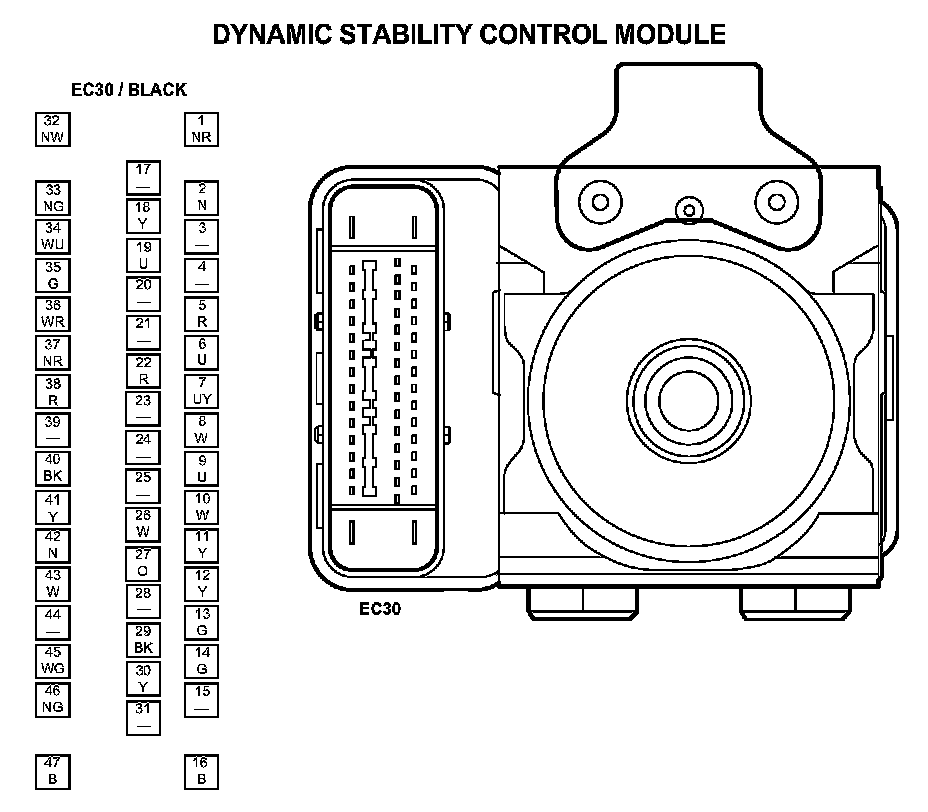

Dynamic Stability Control Module:
