Computers/Controls - False Diagnostic Trouble Codes
NUMBER: XK419-002MODEL: 2007 XK
DATE: April 06, 2006
SECTION: 419-10
Falsely Flagged Diagnostic Trouble Codes
AFFECTED VEHICLE RANGE:
New XK VIN: B00001 onwards
Model Year: 2007
CONDITION SUMMARY:
FALSELY FLAGGED DIAGNOSTIC TROUBLE CODES (DTC)
This bulletin has been issued to inform the dealers of a number of DTC that can be falsely flagged.
Situation:
This bulletin identifies a number of DTC's that may be cleared and ignored. The Integrated Diagnostic System (IDS) "help text" may provide alternative actions for some codes.
Action:

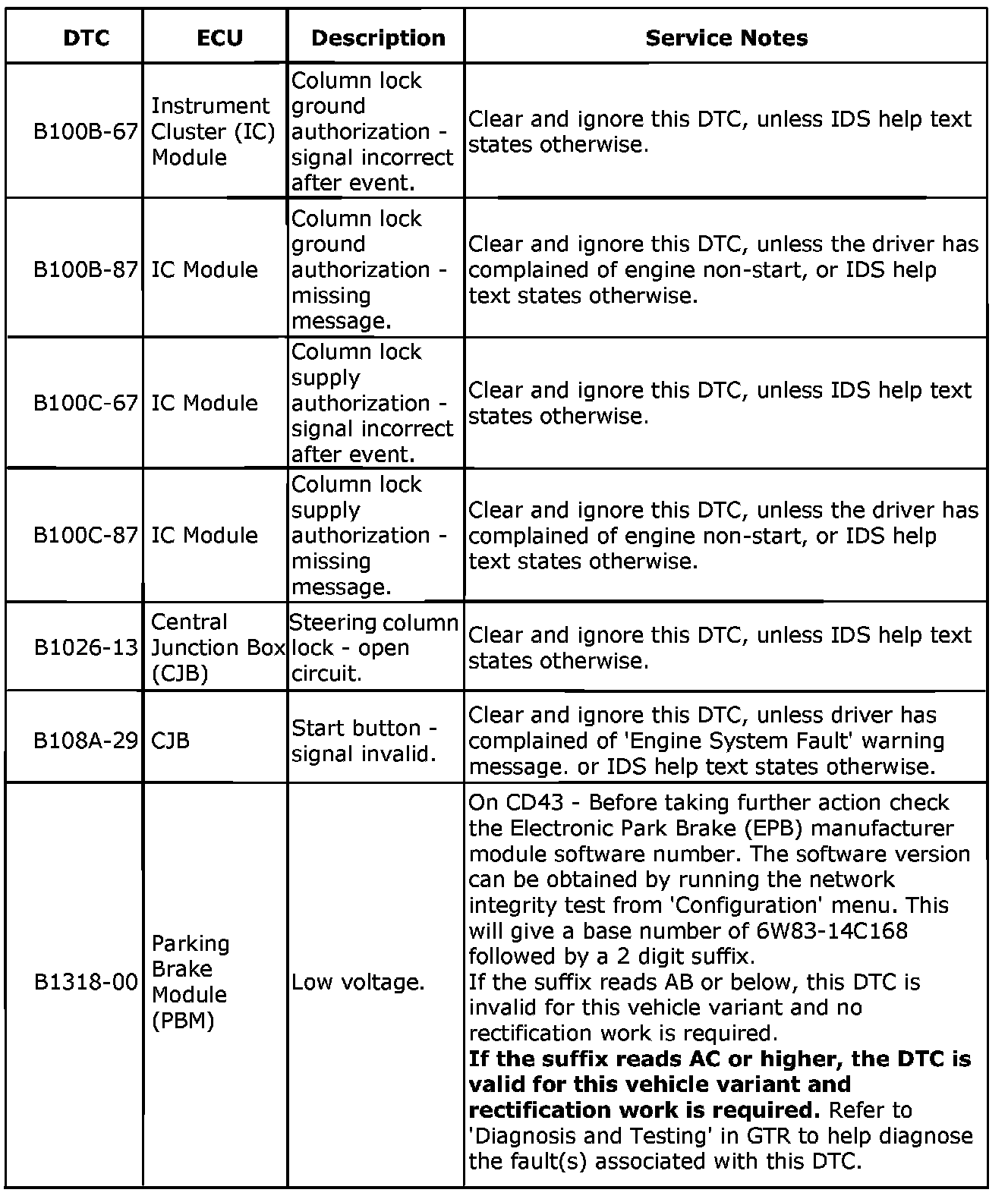

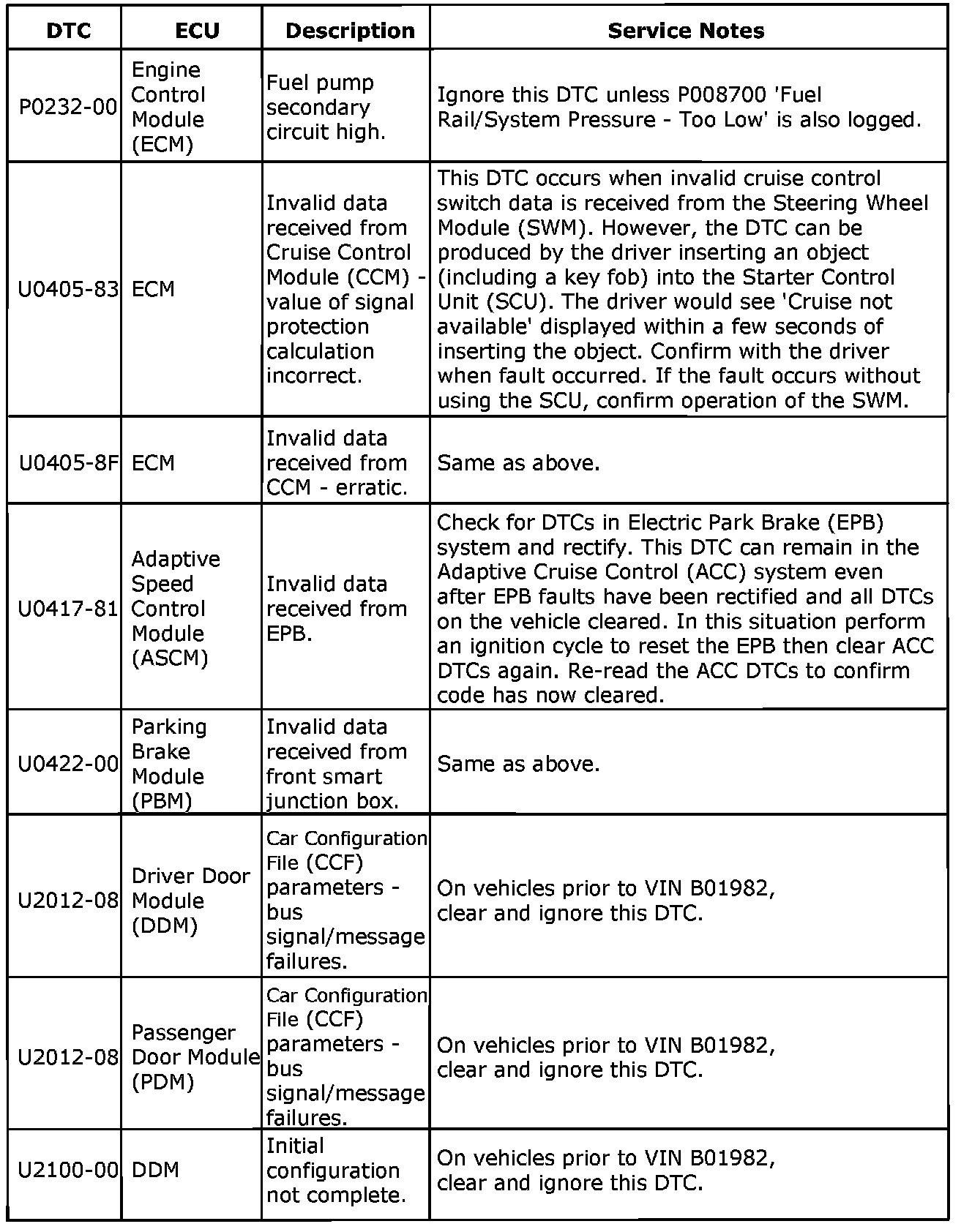

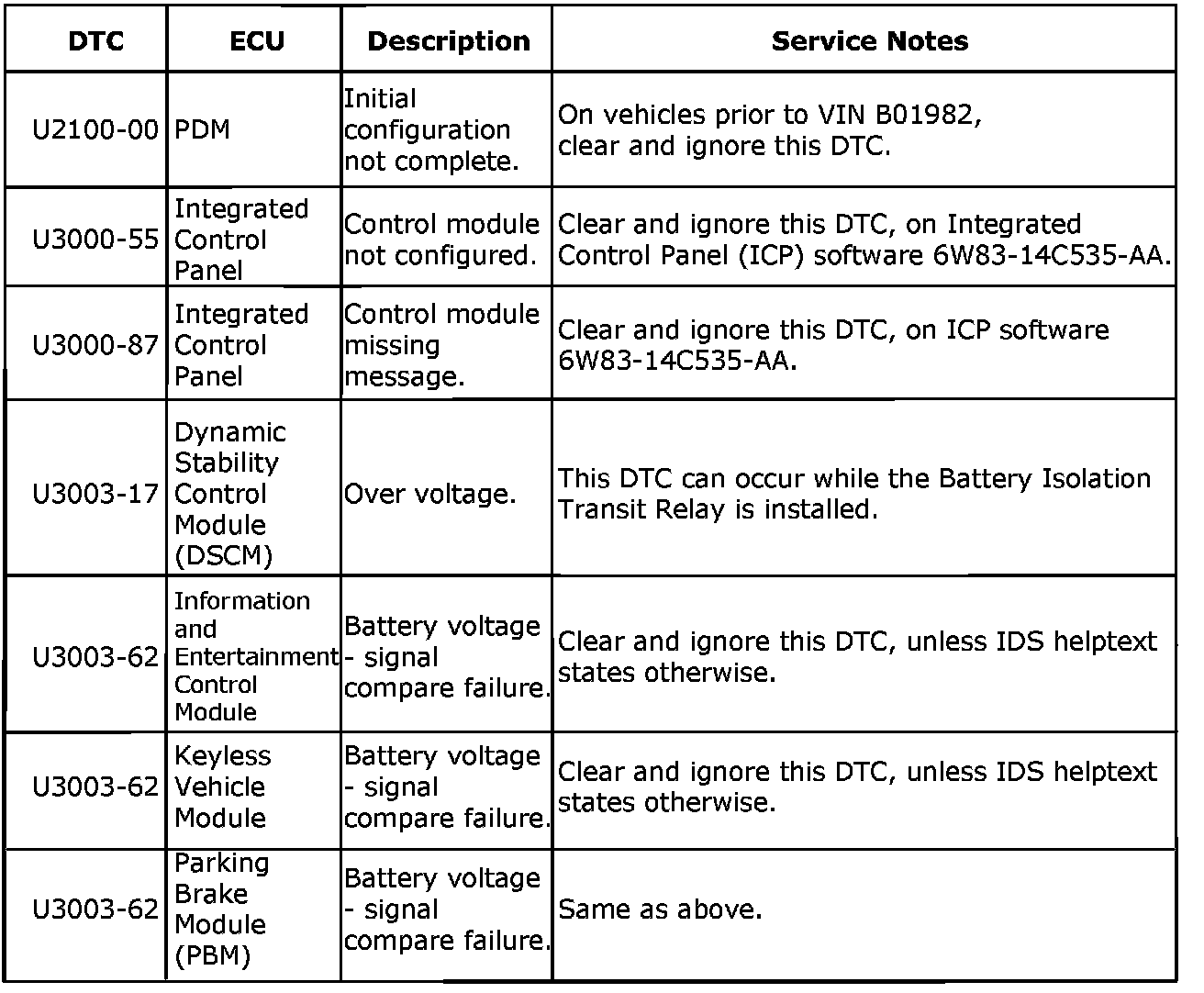

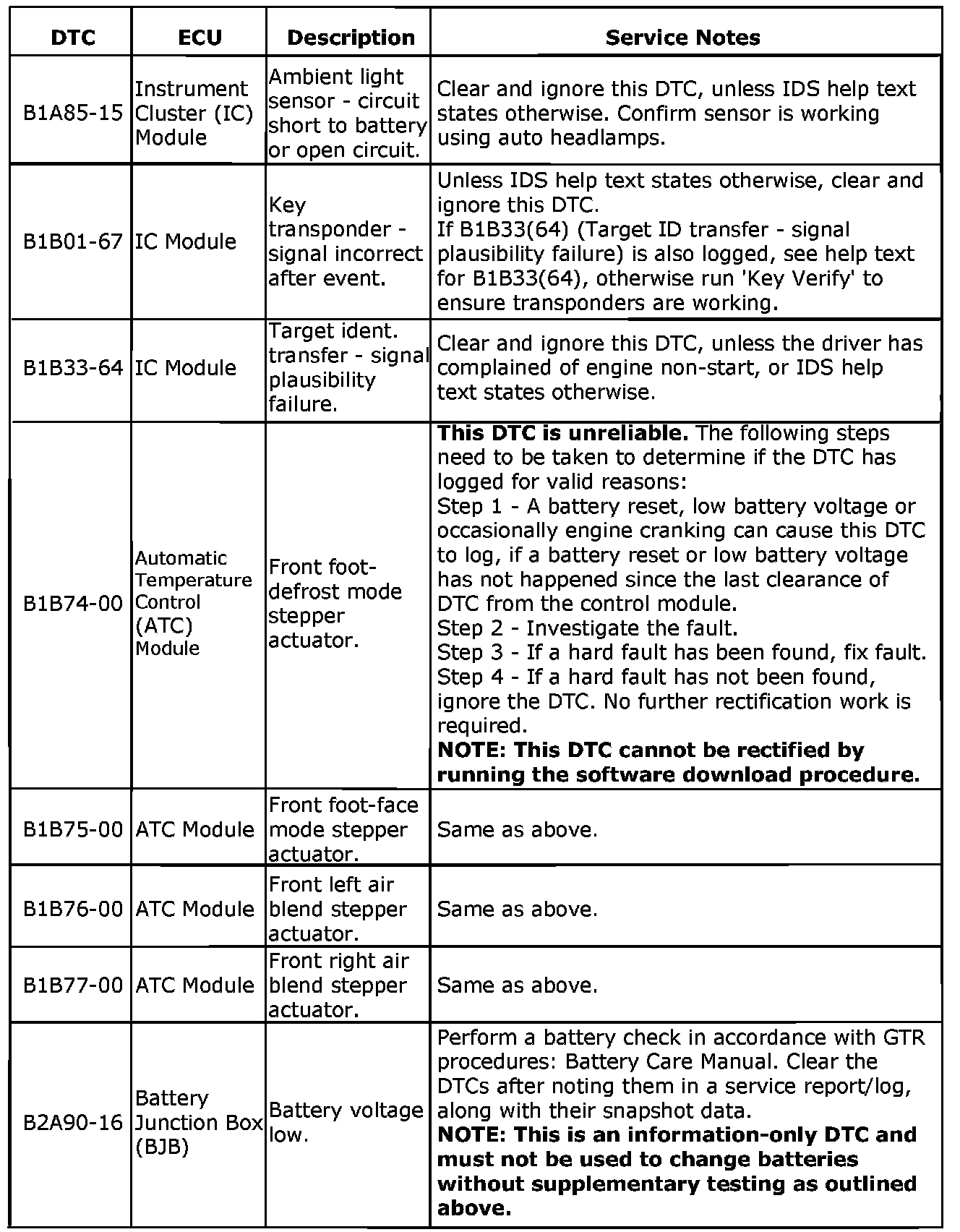

Refer to the appended table of codes associated with various vehicle modules that under most circumstances can be ignored or simply explained by the "Service Notes" information.
PARTS:
No parts required. Information purposes only.
WARRANTY:
Normal warranty policy and procedures apply.
REPAIR PROCEDURE
IDENTIFY AND CLEAR DIAGNOSTIC TROUBLE CODES
