Camshaft Position (CMP) Sensor RH (18.31.11)

Camshaft Position (CMP) Sensor RH (18.31.11)

Removal
1. Remove the intake air resonator.
2. Release the engine wiring harness.

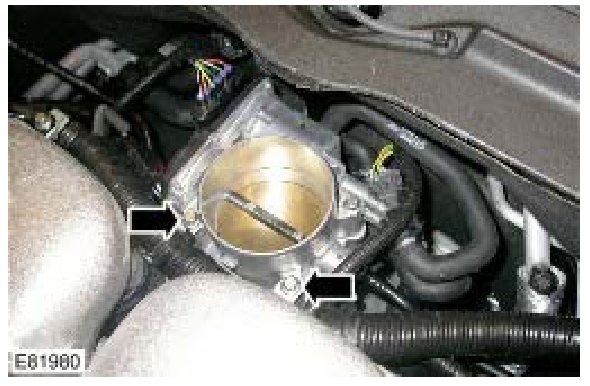

- Remove the 2 bolts.

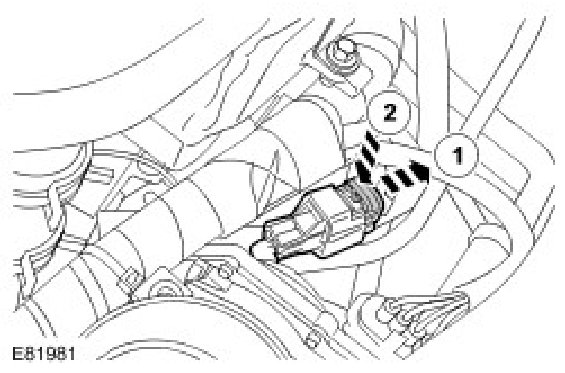

3. Disconnect the CMP sensor electrical connector.
- Slide the red connector latch to one side.

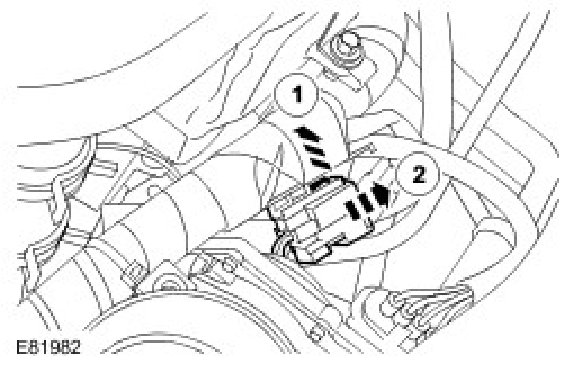

4. Release the CMP sensor electrical connector.
- Release the clip.

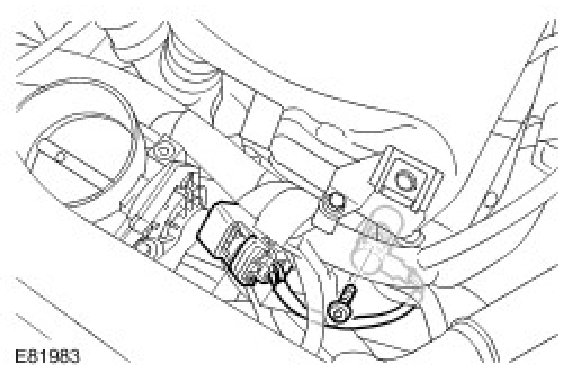

5. Remove the CMP sensor.
- Remove the Torx bolt.
- Remove and discard the O-ring seal.







Installation
1. Install the CMP sensor.
- Clean the components.
- Install a new O-ring seal.
- Tighten the Torx bolt to 7 Nm (5 lb.ft).
- Connect and secure the electrical connector.
2. Attach the engine wiring harness.
- Tighten the bolts to 10 Nm (7 lb.ft).
3. Install the intake air resonator.
