Power Seat Control Module
Power Seat Control Module

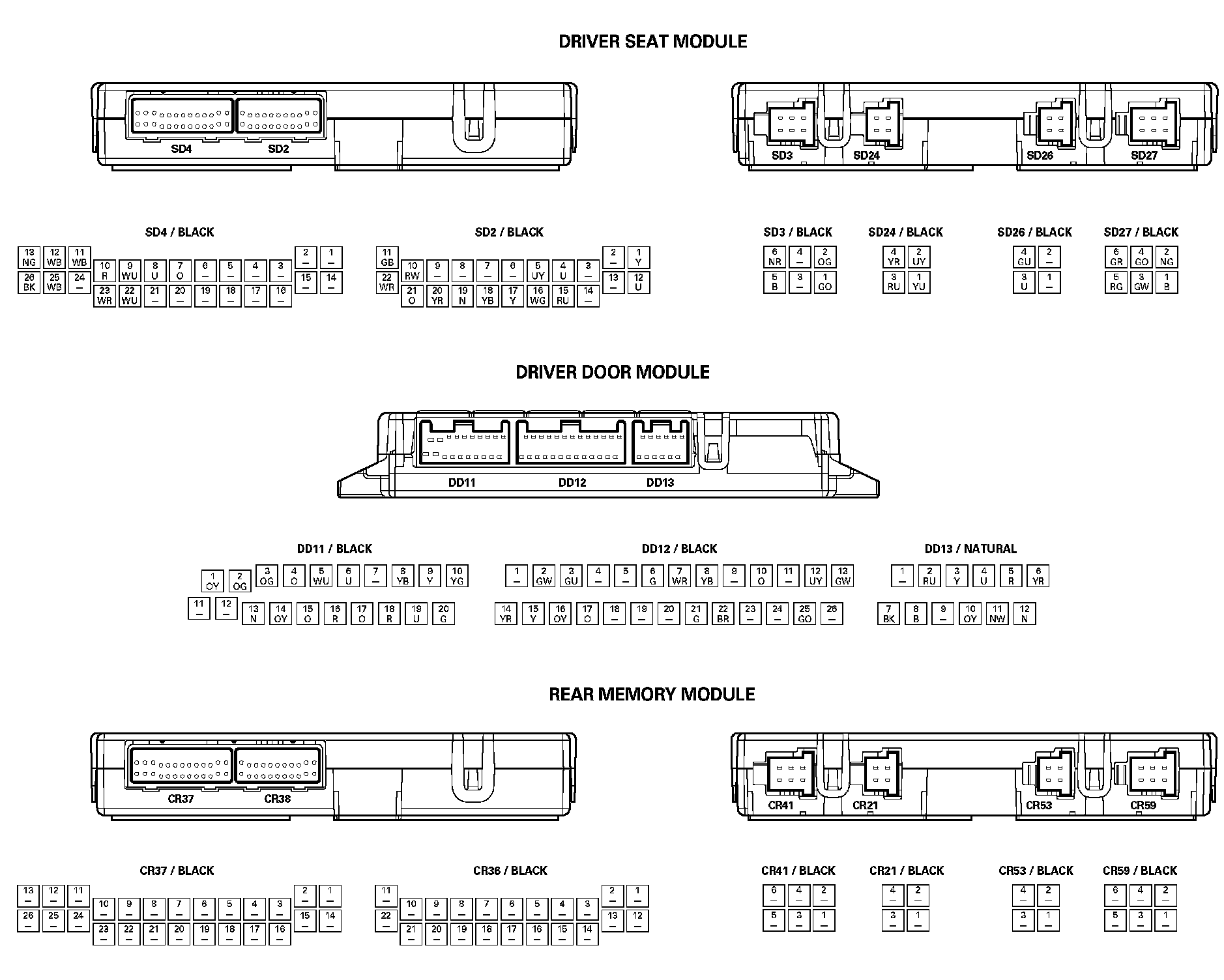

Driver Seat Module
Control Module Pin Identification:
