Ignition Coil: Service and Repair

Ignition Coil-On-Plug

Removal
Right-Hand Bank
1. Remove the intake manifold.







2. Remove the ignition coil.
1. Disconnect the electrical connector.
2. Remove the ignition coil securing bolt.
3. Remove the ignition coil.

Left-Hand Bank

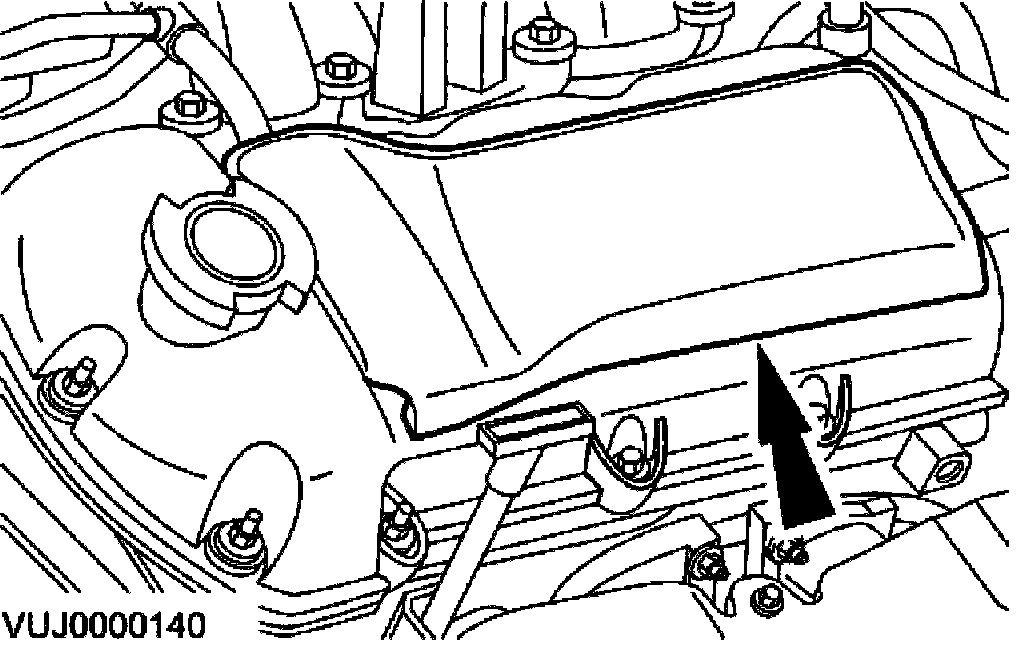

3. Remove the engine cover







4. Remove the ignition coil.
1. Disconnect the electrical connector
2. Remove the ignition coil securing bolt.
3. Remove the ignition coil.

Installation

1. NOTE: Apply a light film of Dielectric compound to the ignition coil meeting Jaguar specification.

To install, reverse the removal procedure.
