Variable Valve Timing Solenoid: Service and Repair

Variable Camshaft Timing Oil Control Solenoid

Removal

Left and Right-Hand Banks
1. Disconnect the battery ground cable.

Left-Hand Bank
2. Remove the valve cover.

Right-Hand Bank
3. Remove the intake manifold.
4. Remove the valve cover.

Left and Right-Hand Banks

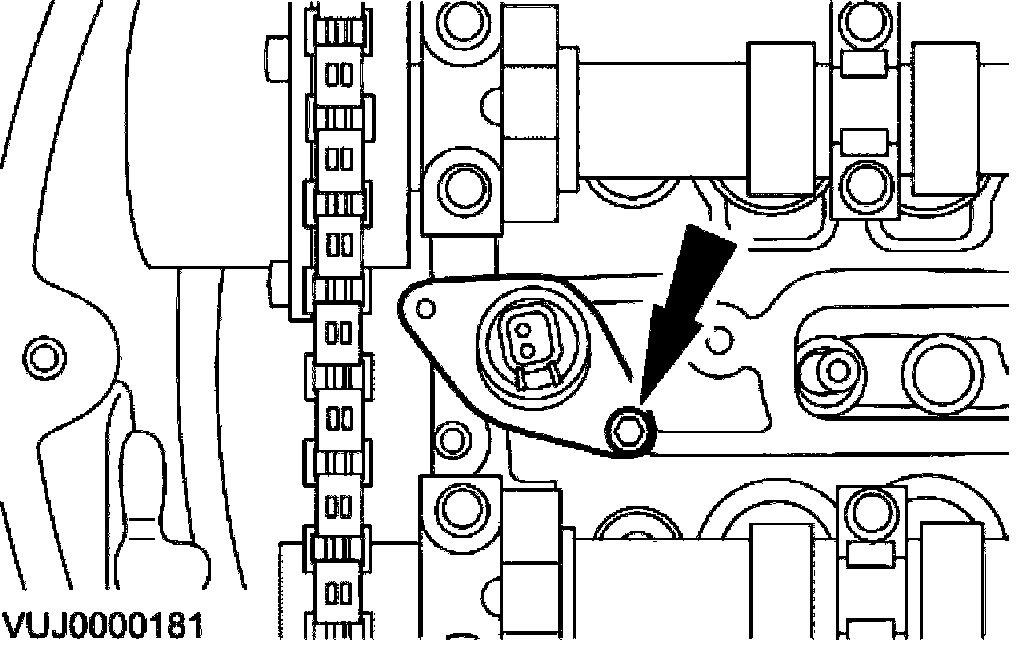

5. Remove the variable camshaft timing control solenoid.

Installation

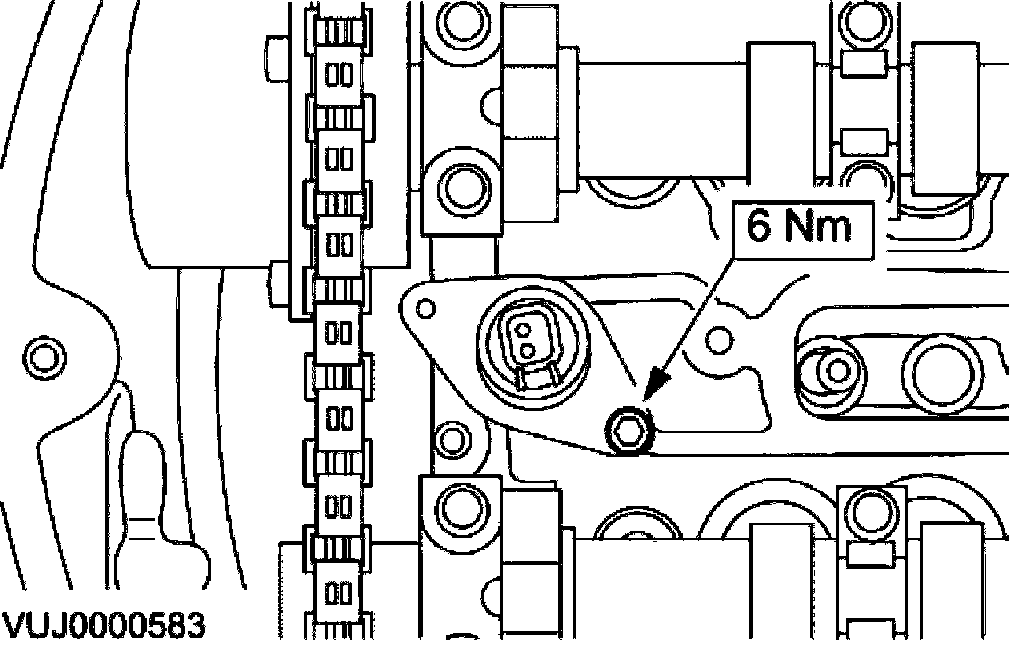

1. To install, reverse the removal procedure.
