Tightening Torques & Sequences



Fastener Tightening Specifications

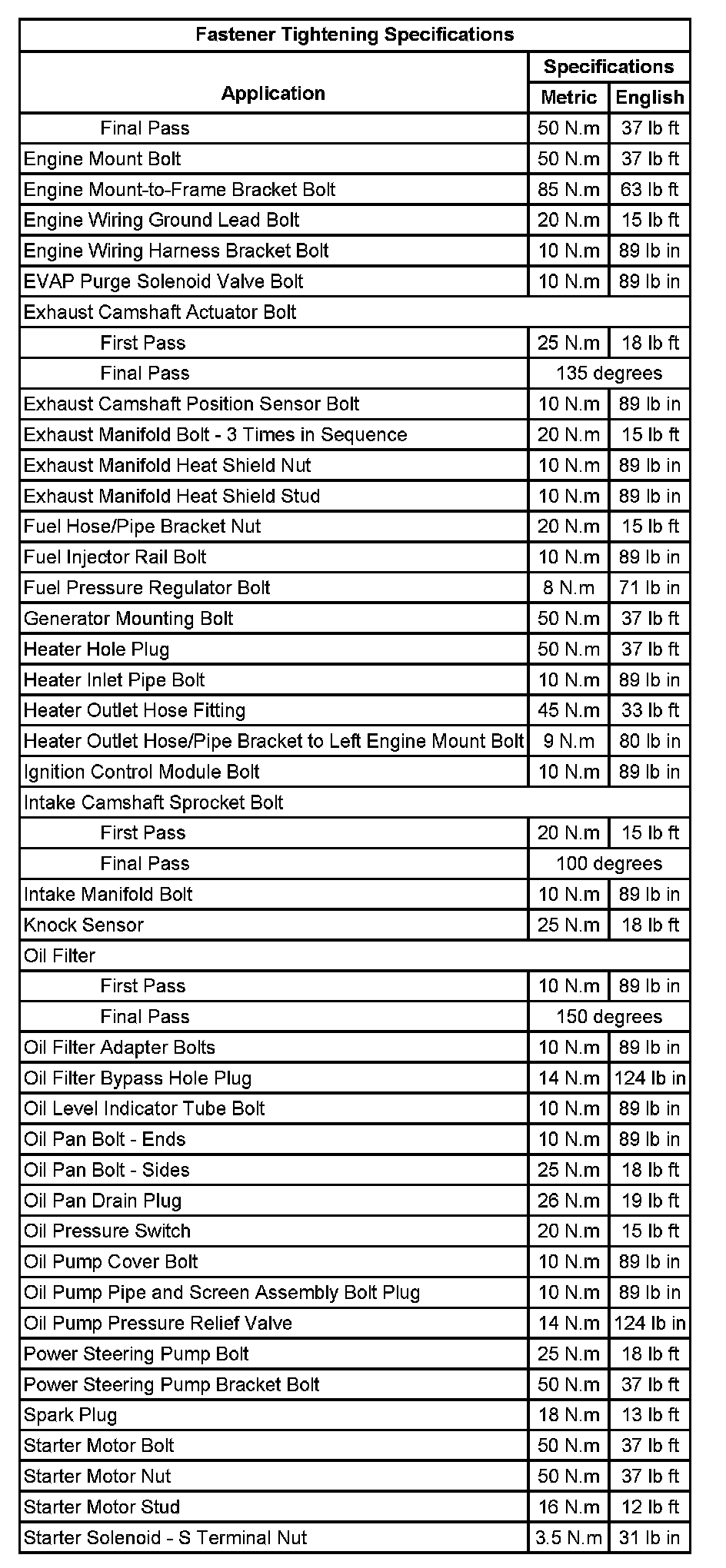

Fastener Tightening Specifications (Part 1):

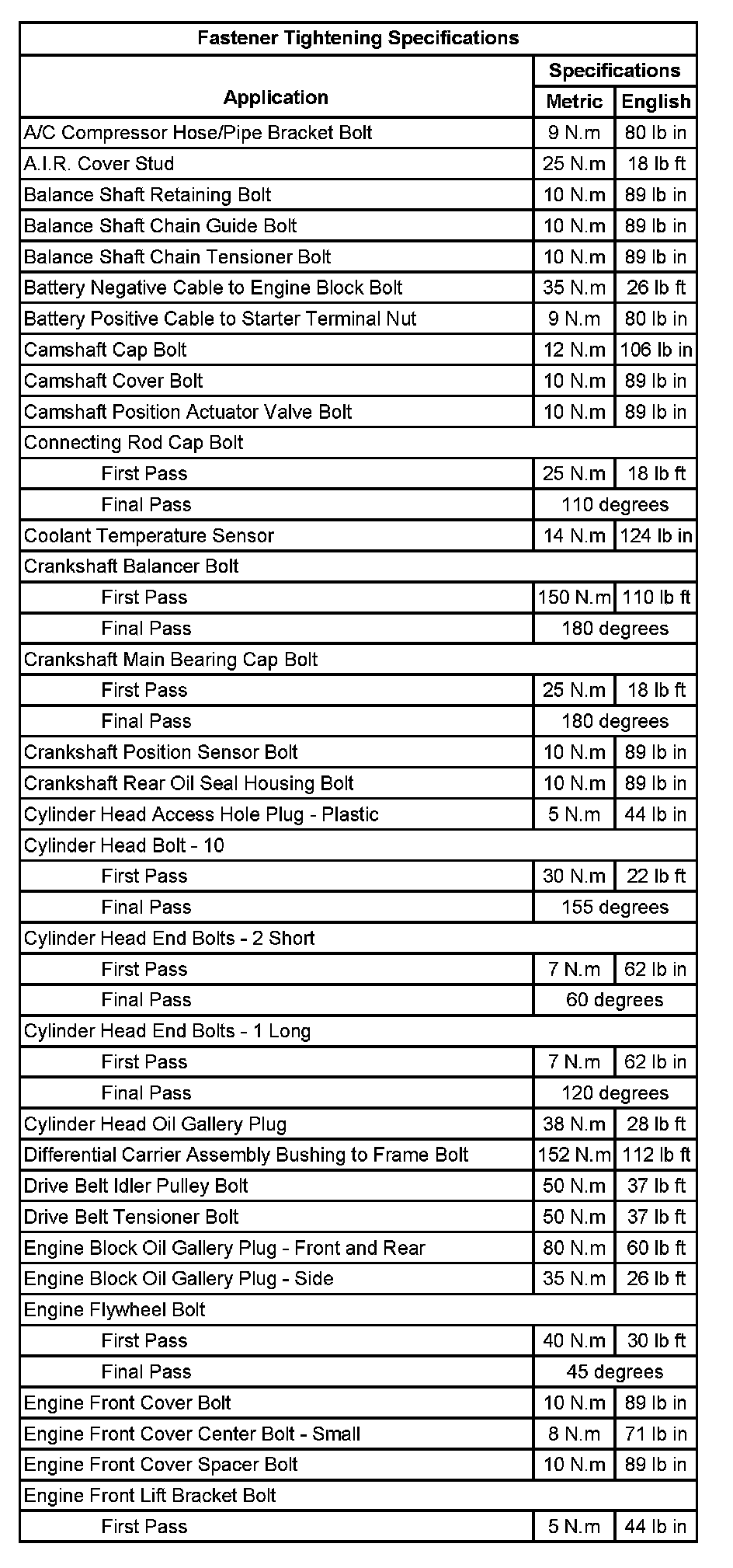

Fastener Tightening Specifications (Part 2):




Fastener Tightening Specifications (Part 3):
