Isuzu Truck
>>
2007
>>
Ascender 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

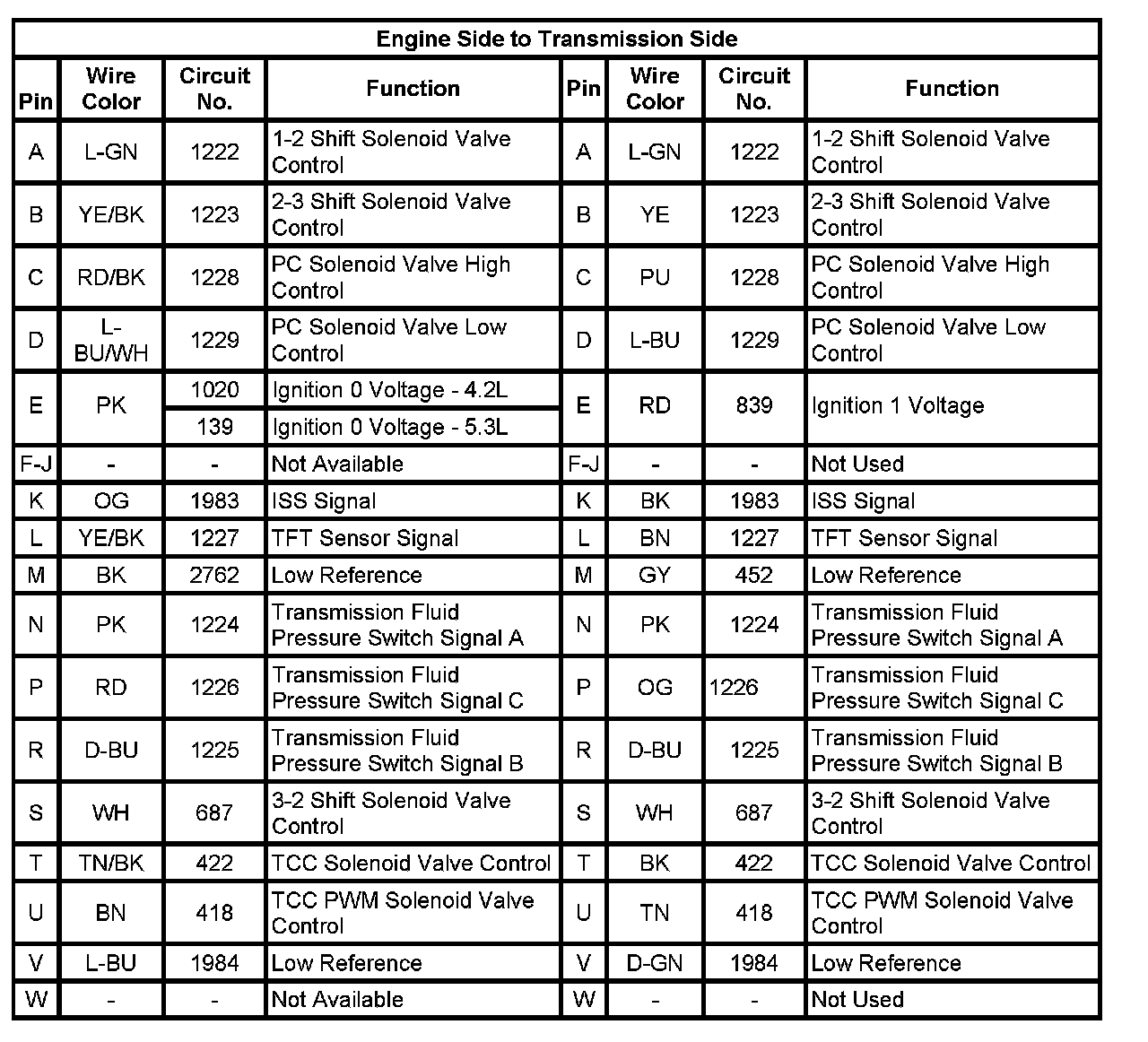

Engine Side to Transmission Side
Engine Side to Transmission Side:
