Isuzu Truck
>>
2003
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
Exploded Views

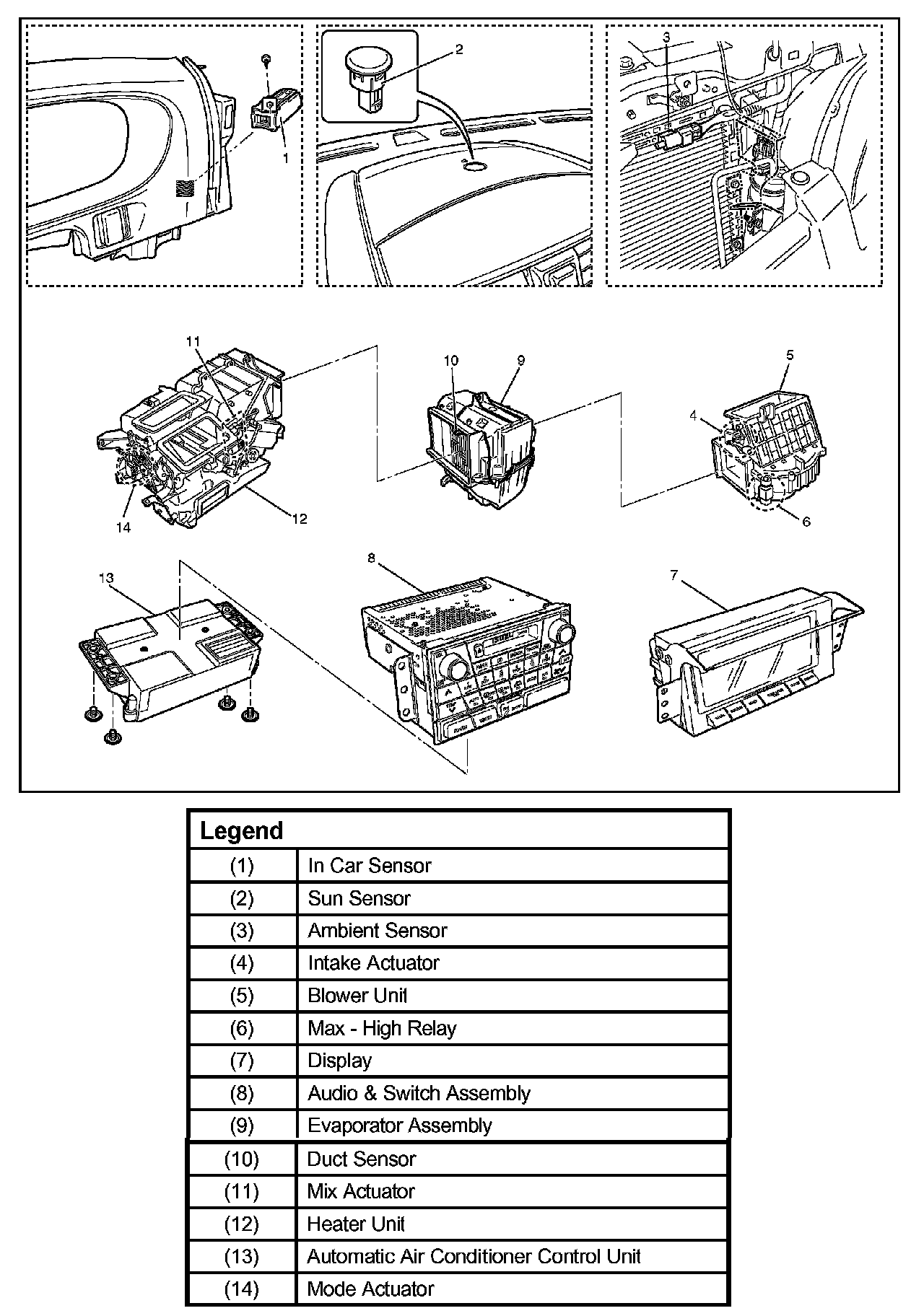

Automatic Air Conditioner Parts Configuration:
