Engine Mechanical Specifications

Engine Mechanical Specifications

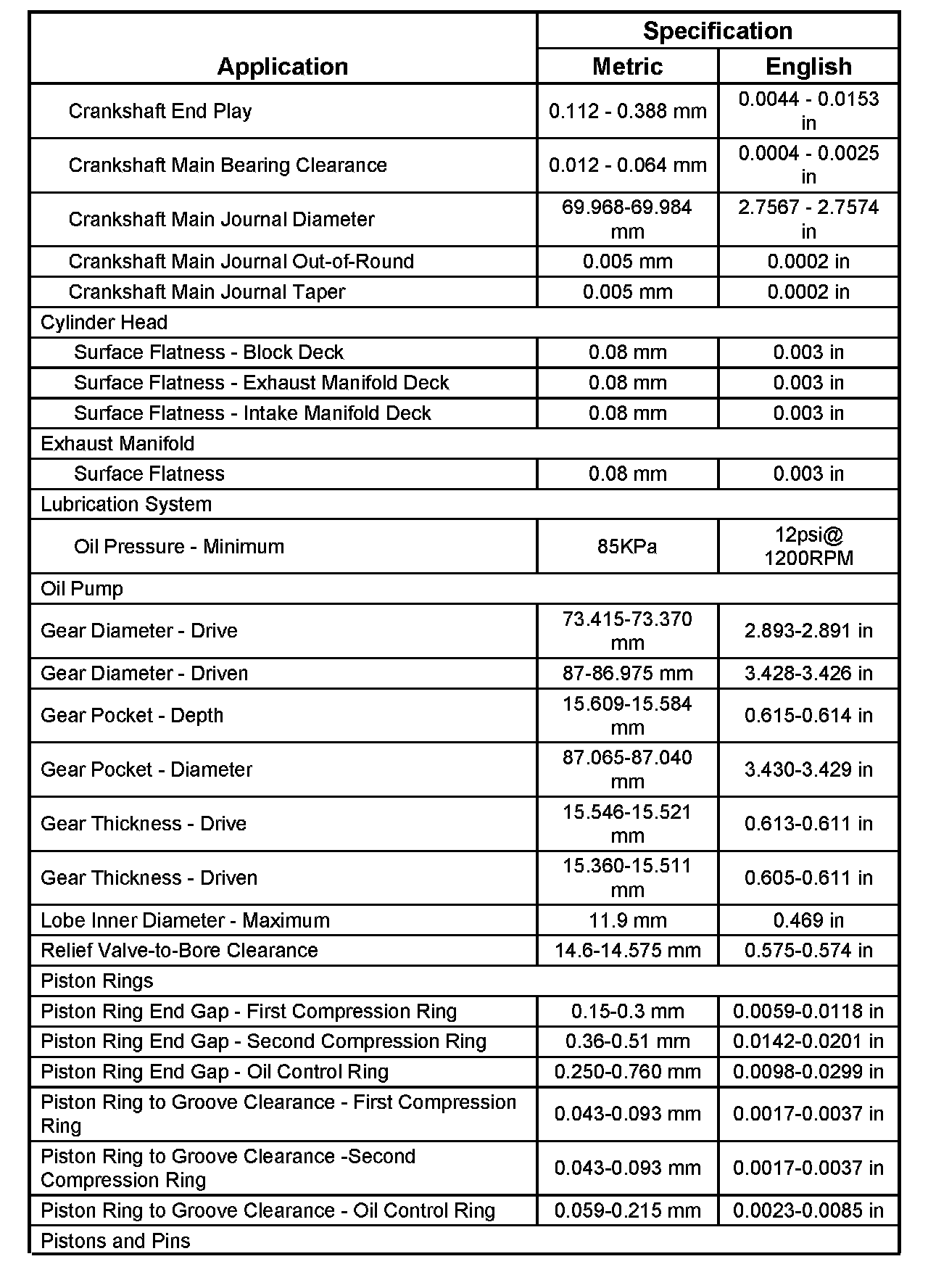

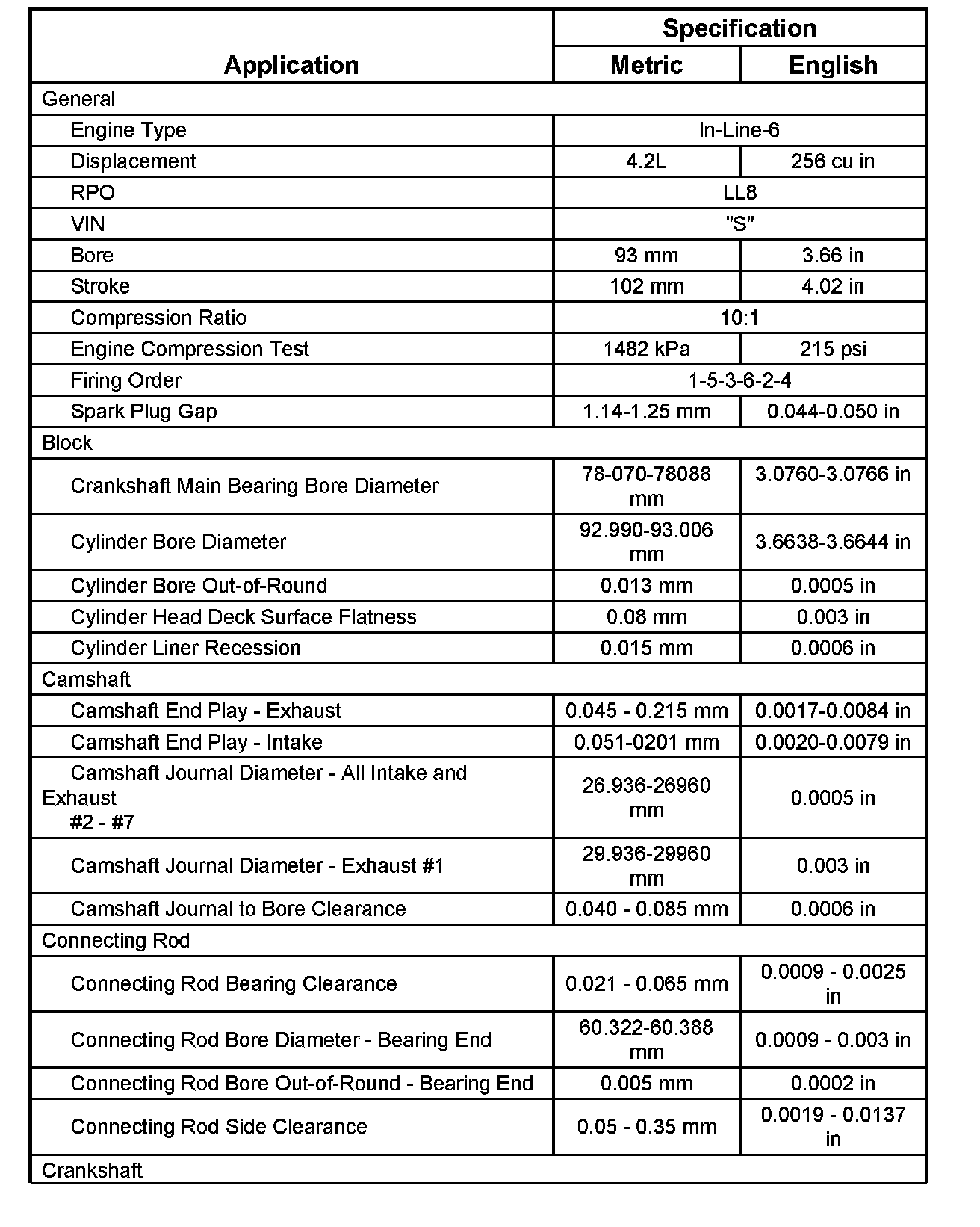

Engine Mechanical Specifications (1 Of 3):




Engine Mechanical Specifications (2 Of 3):




Engine Mechanical Specifications (3 Of 3):
