Isuzu Truck
>>
2002
>>
Trooper LS 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Tailgate
>>
System Diagram
System Diagram

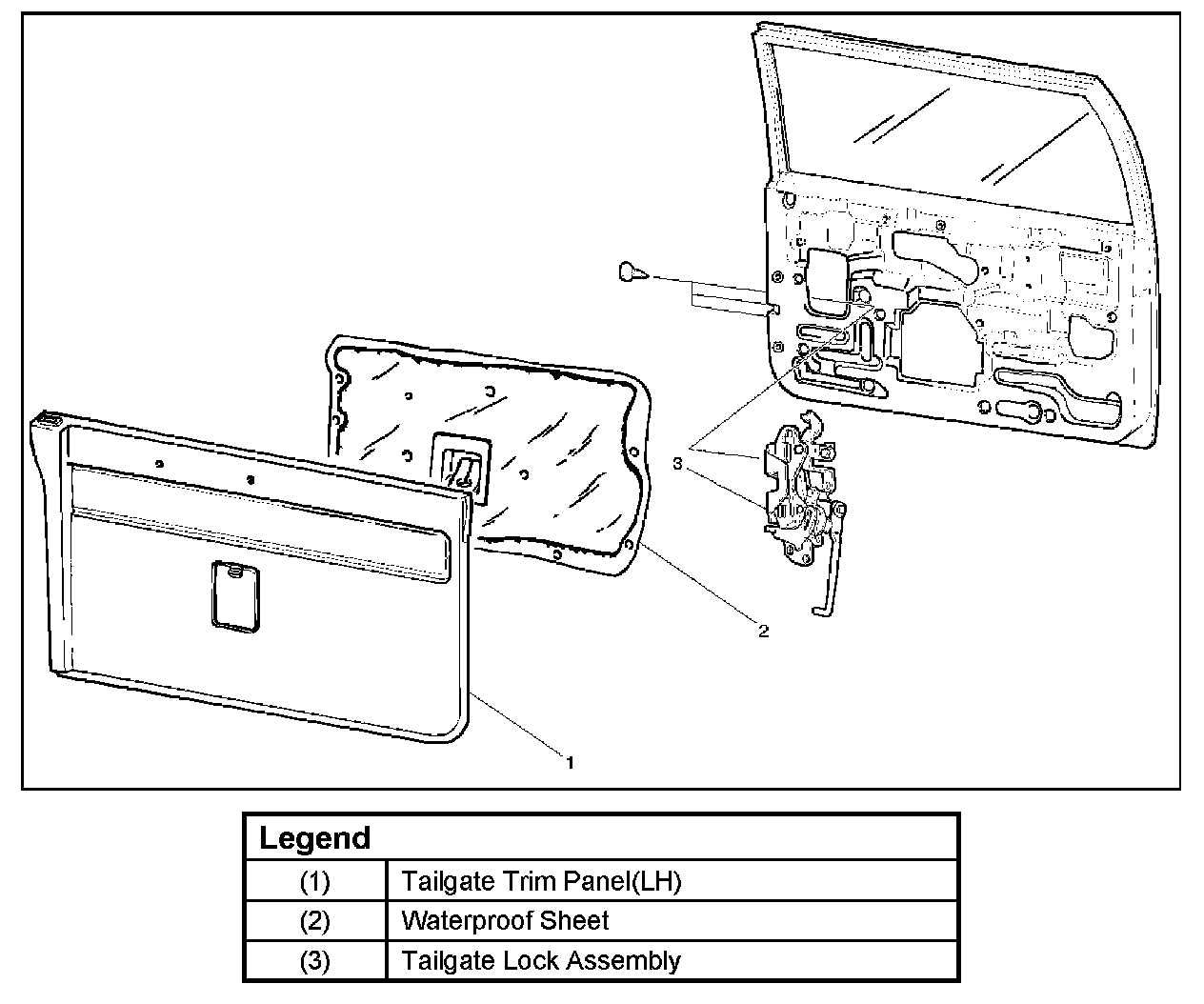

Tailgate Lock Assembly (LH) And Associated Parts:

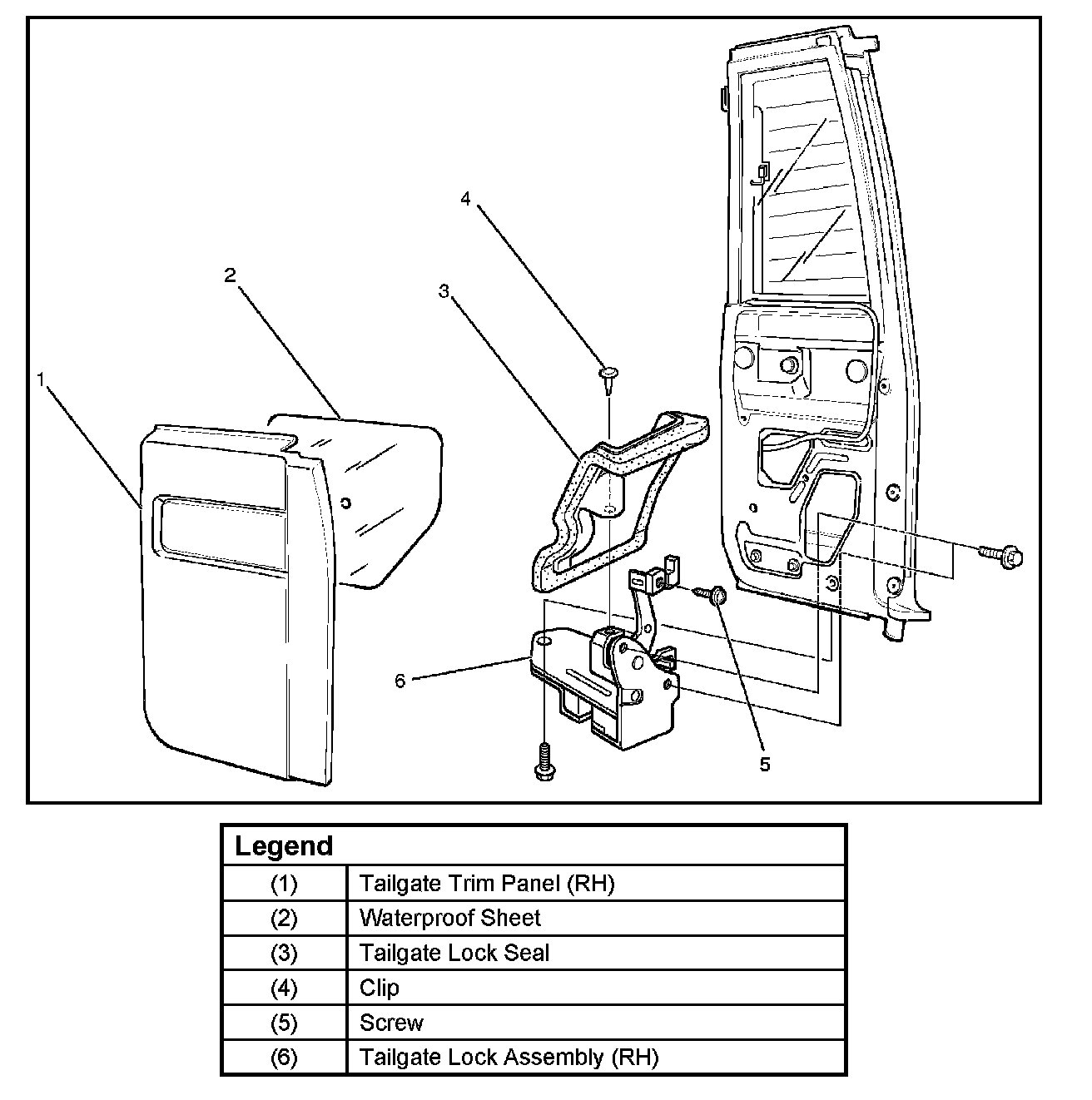

Tailgate Lock Assembly (RH) And Associated Parts:
