Home
>>
Isuzu Truck
>>
2001
>>
Rodeo LSE 4WD V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
>>
System Diagram
>>

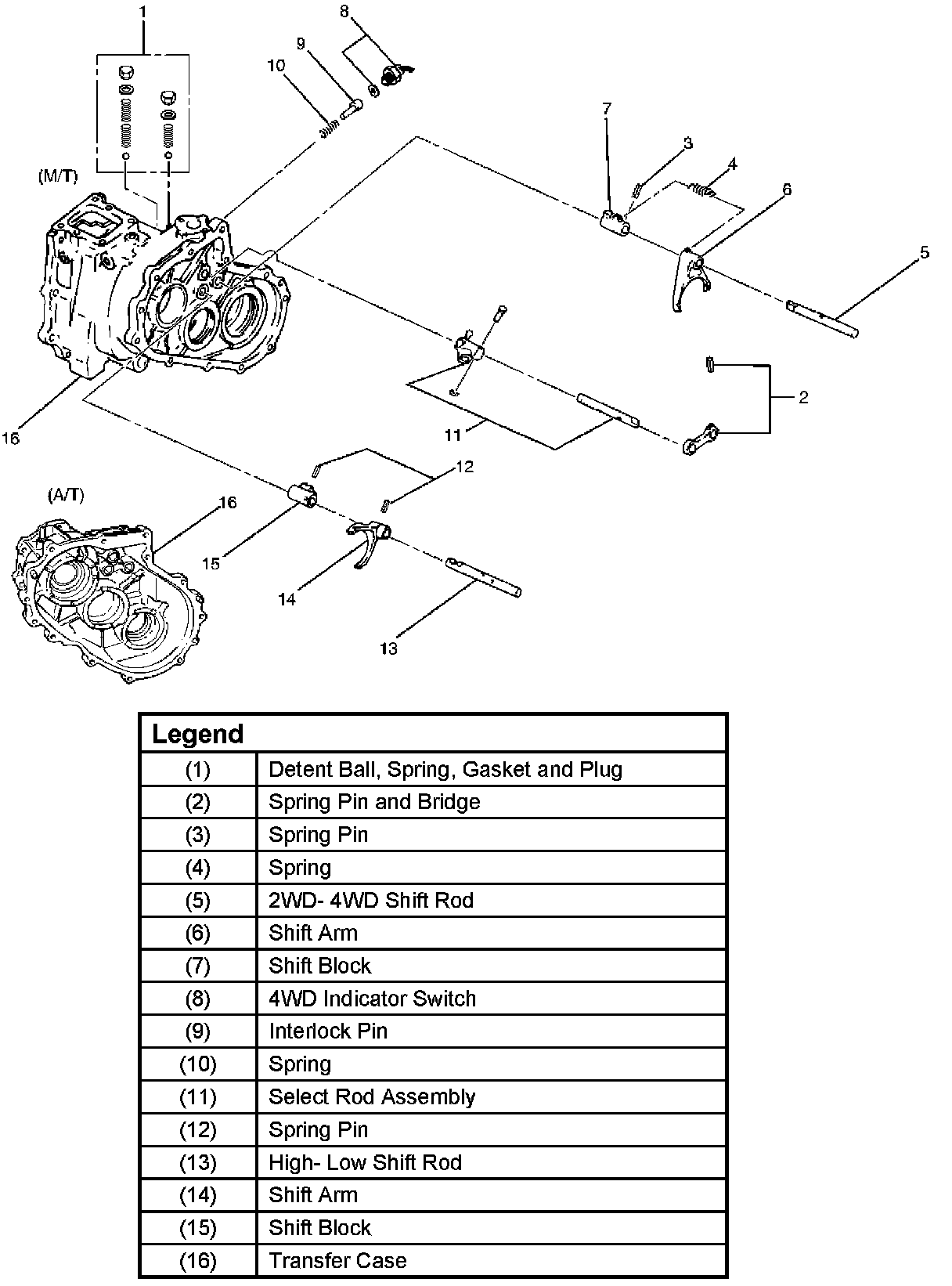

Detent, Shift Arm, and Interlock Pin (Transfer Case Assembly)
Detent, Shift Arm, and Interlock Pin (Transfer Case Assembly)
