Home
>>
Isuzu Truck
>>
2000
>>
VehiCROSS 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Seats
Seats

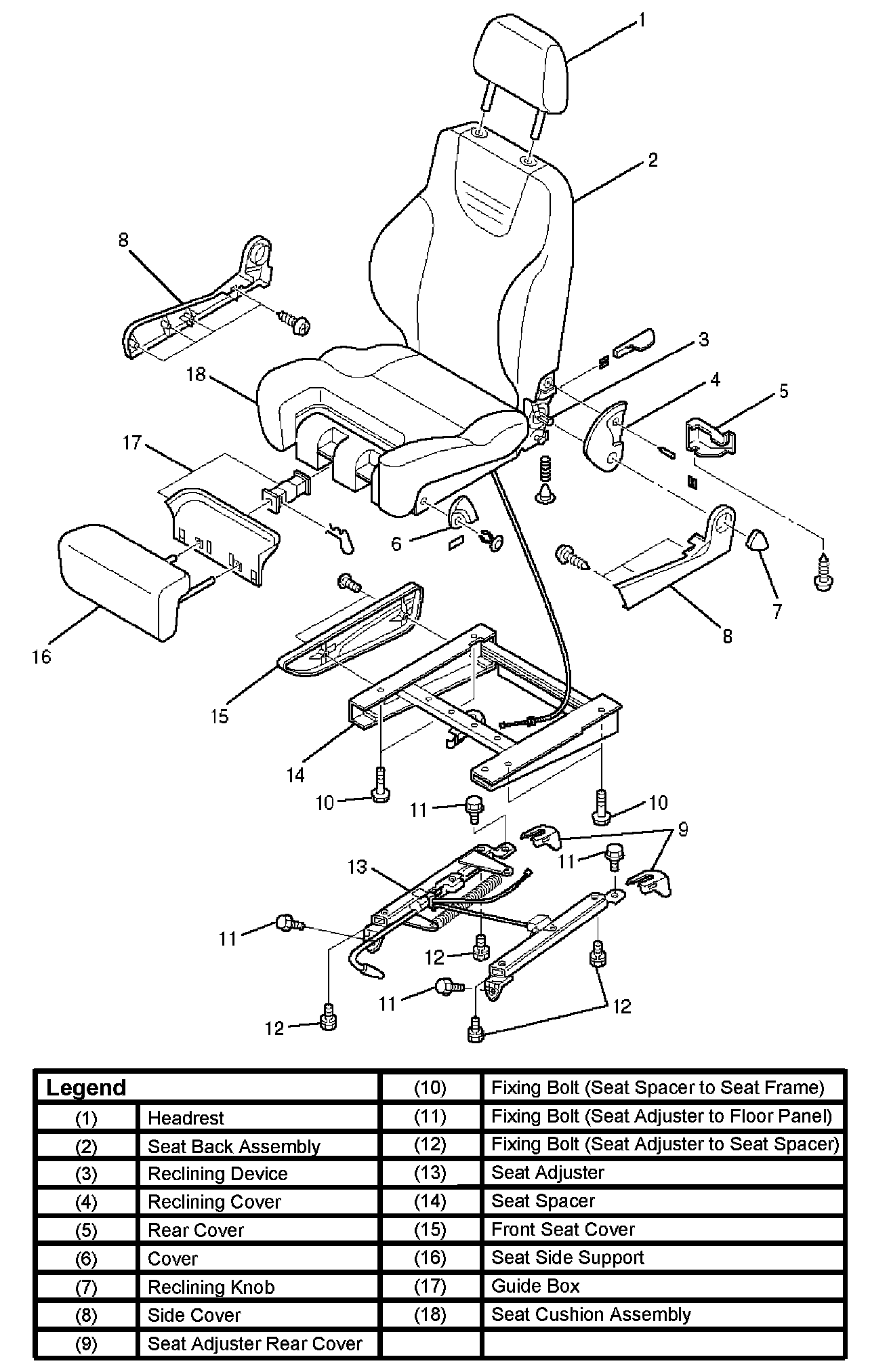

Front Seat Assembly - Disassembled View:

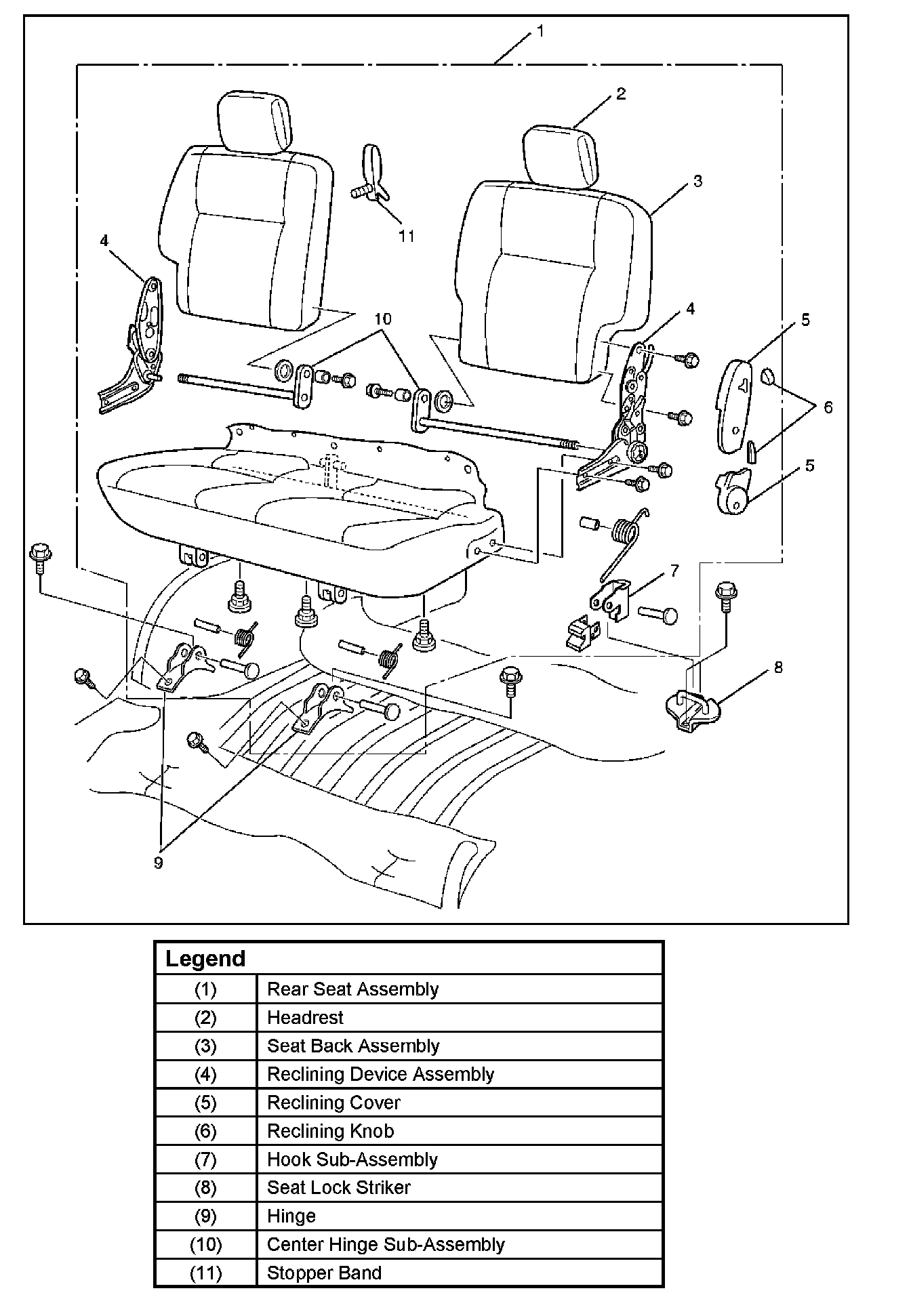

Rear Seat Assembly - Disassembled View:
