Home >> Isuzu Truck >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> System Diagram >> Fuel Controls

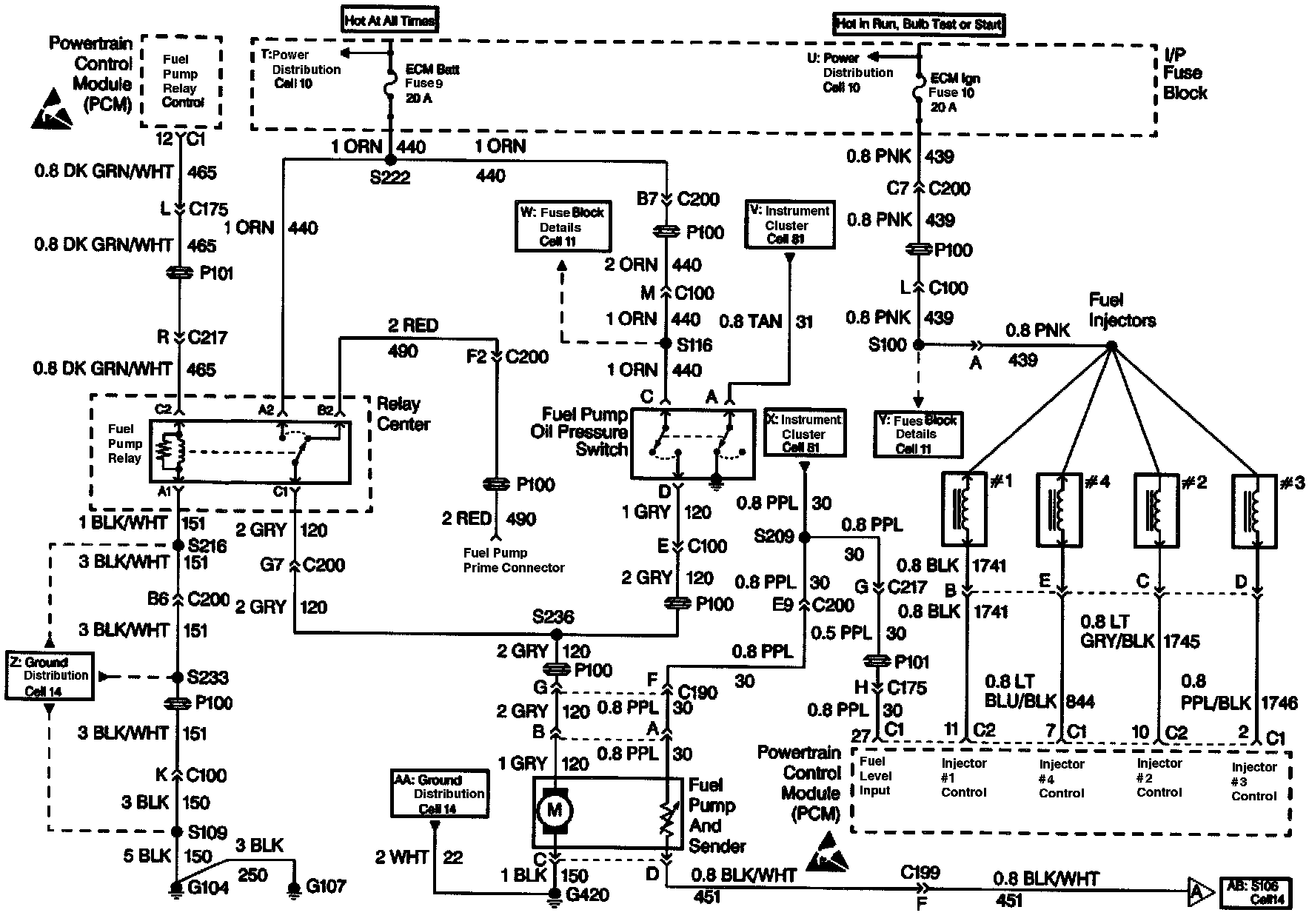

Fuel Controls

Engine Controls: Fuel Controls:
