Isuzu Truck
>>
1991
>>
Trooper II V6-2827cc 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Automatic Transmission Control
>>
Pattern Select Switch

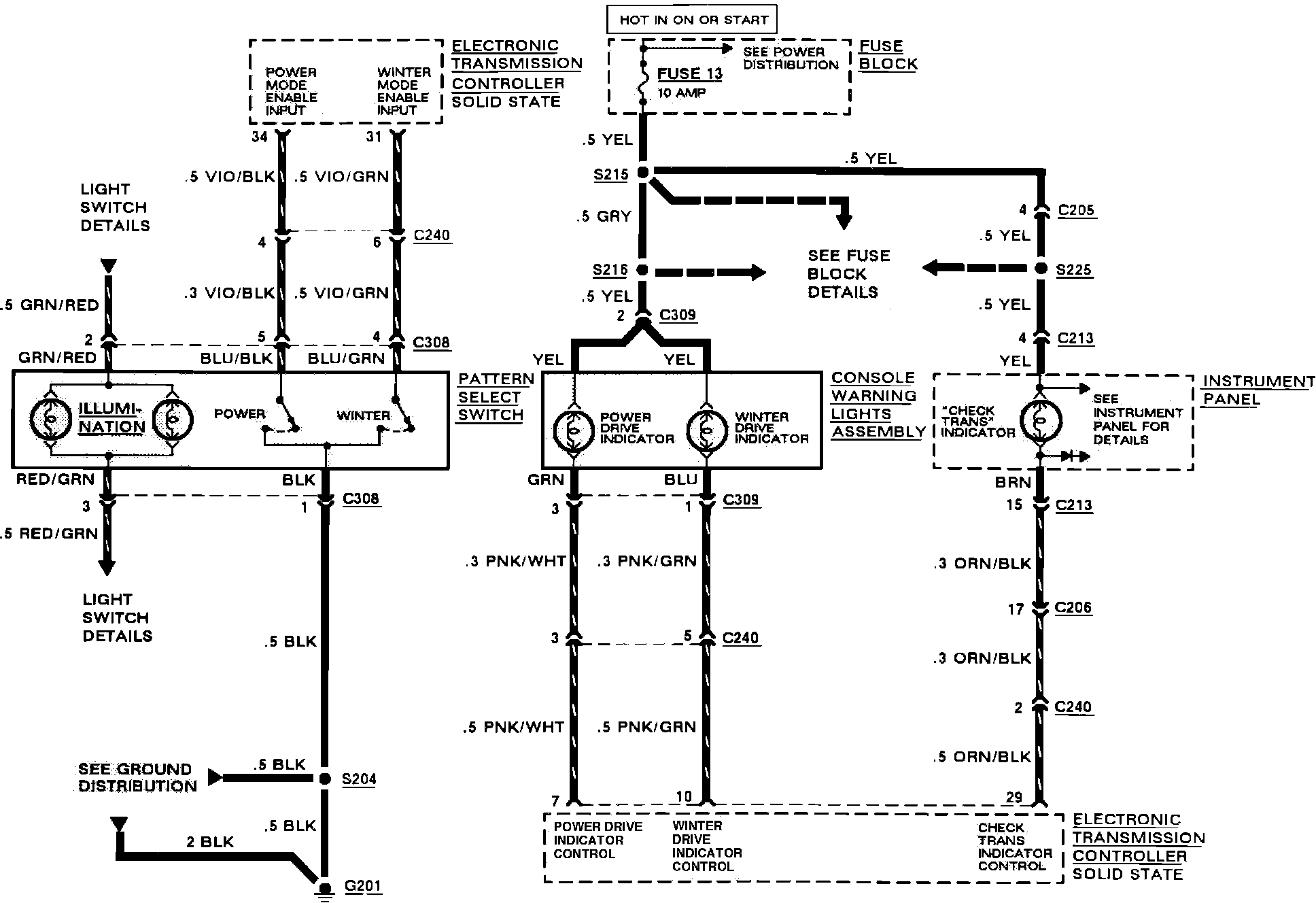

Pattern Select Switch
Automatic Transmission Control: Indicator Lamps:
