Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2012
>>
M37 V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Engine Control System
Engine Control System
COMPONENT PARTS

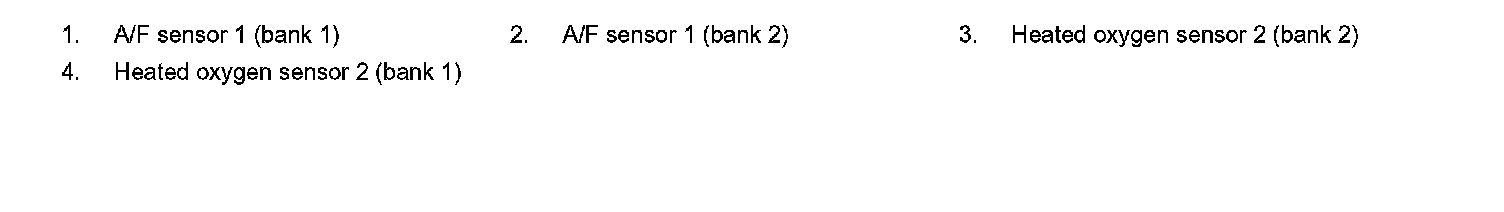

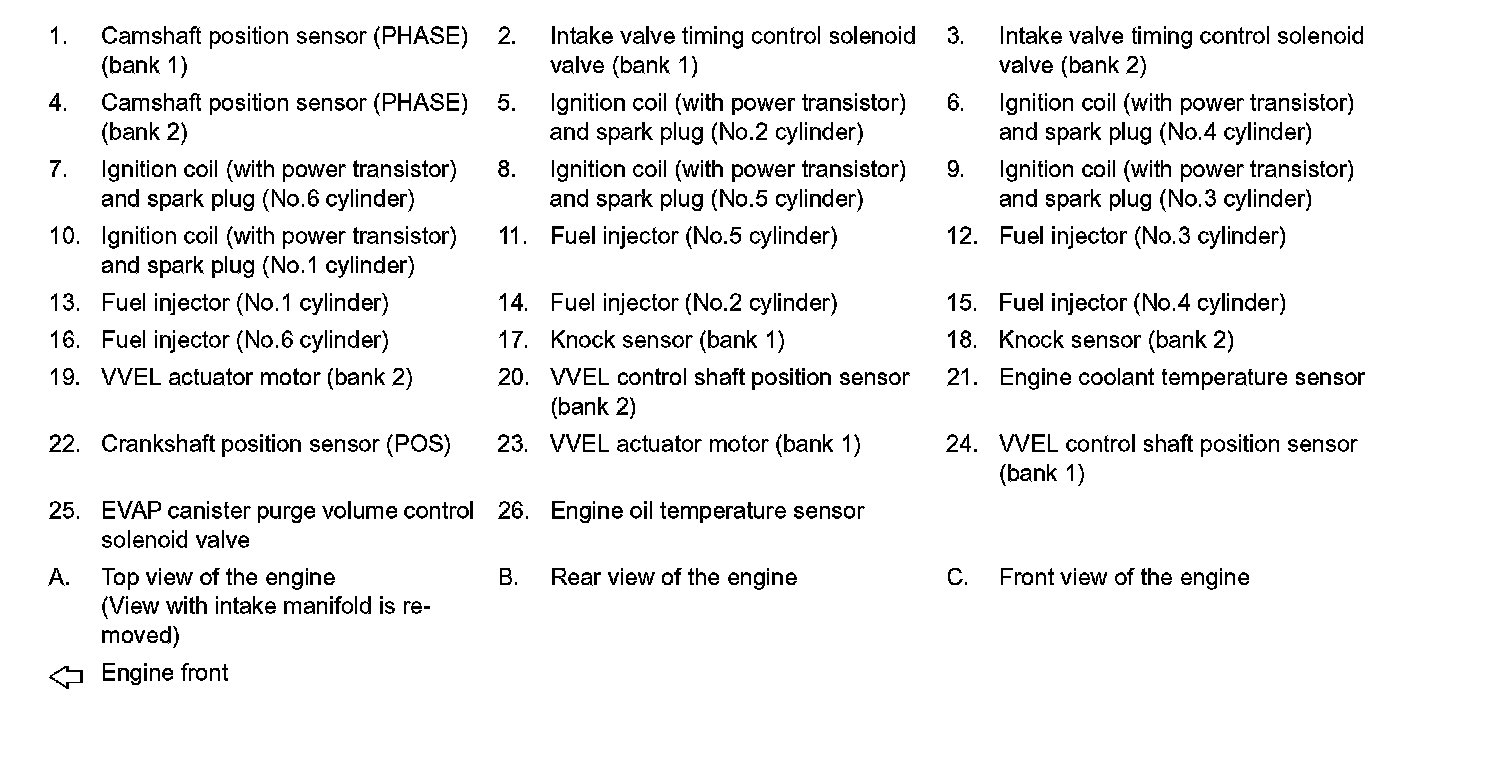

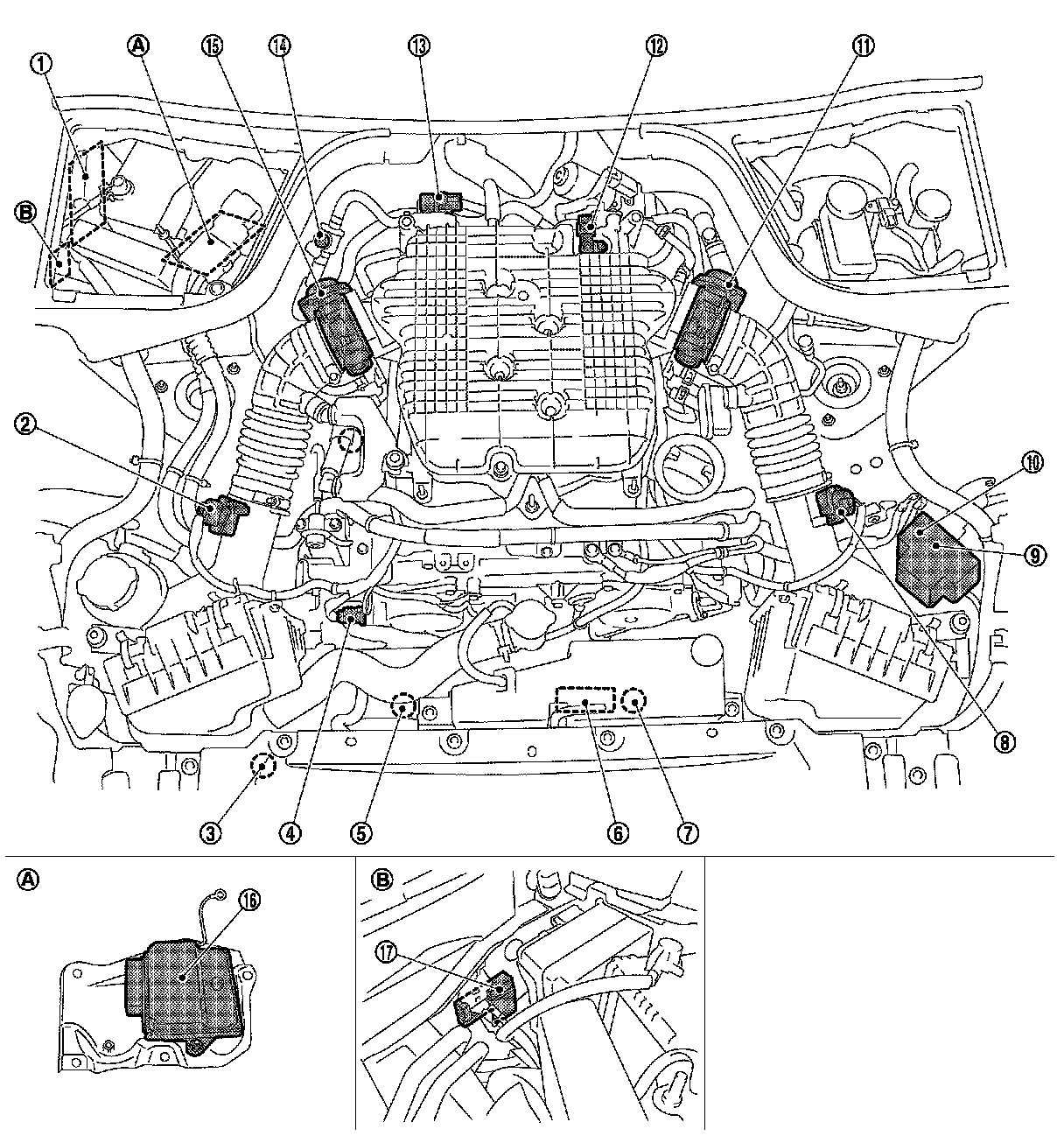

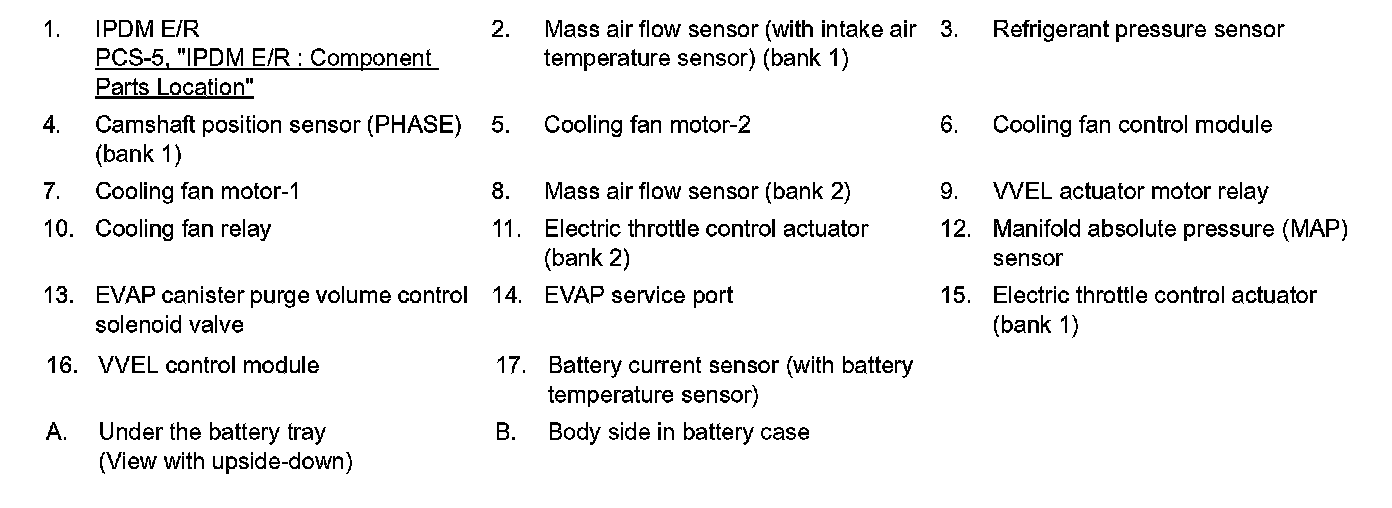

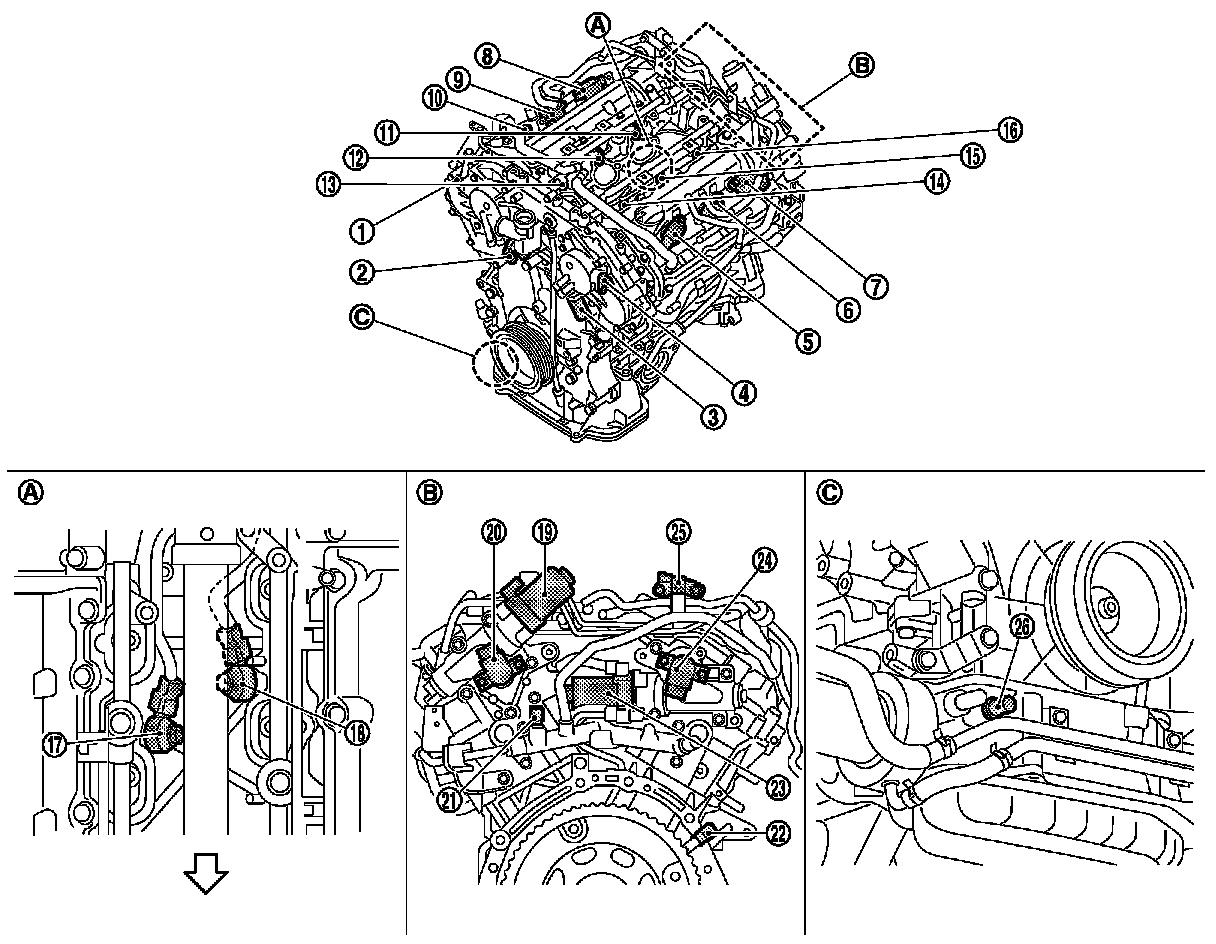

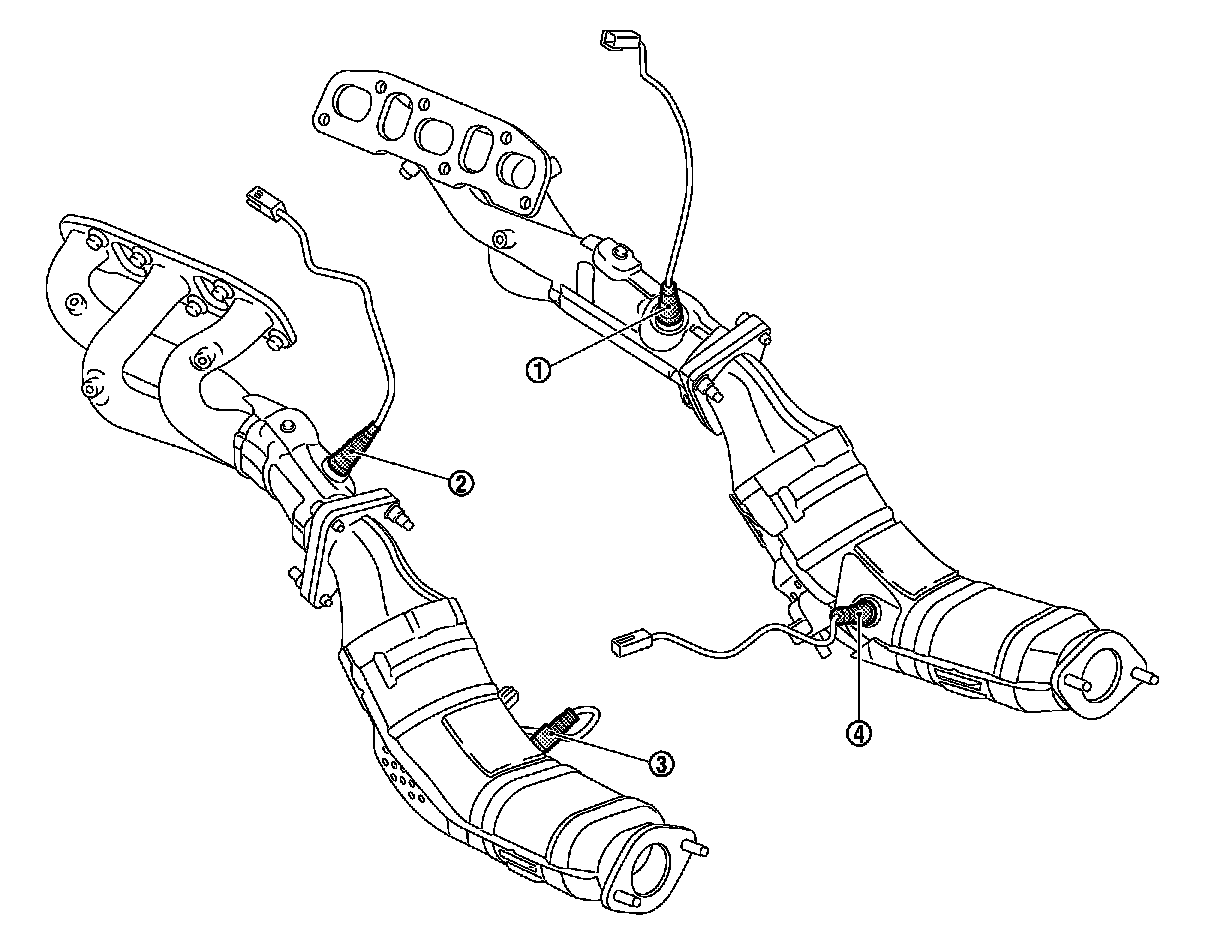

ENGINE CONTROL SYSTEM : Component Parts Location
