Driver Seat Control Unit

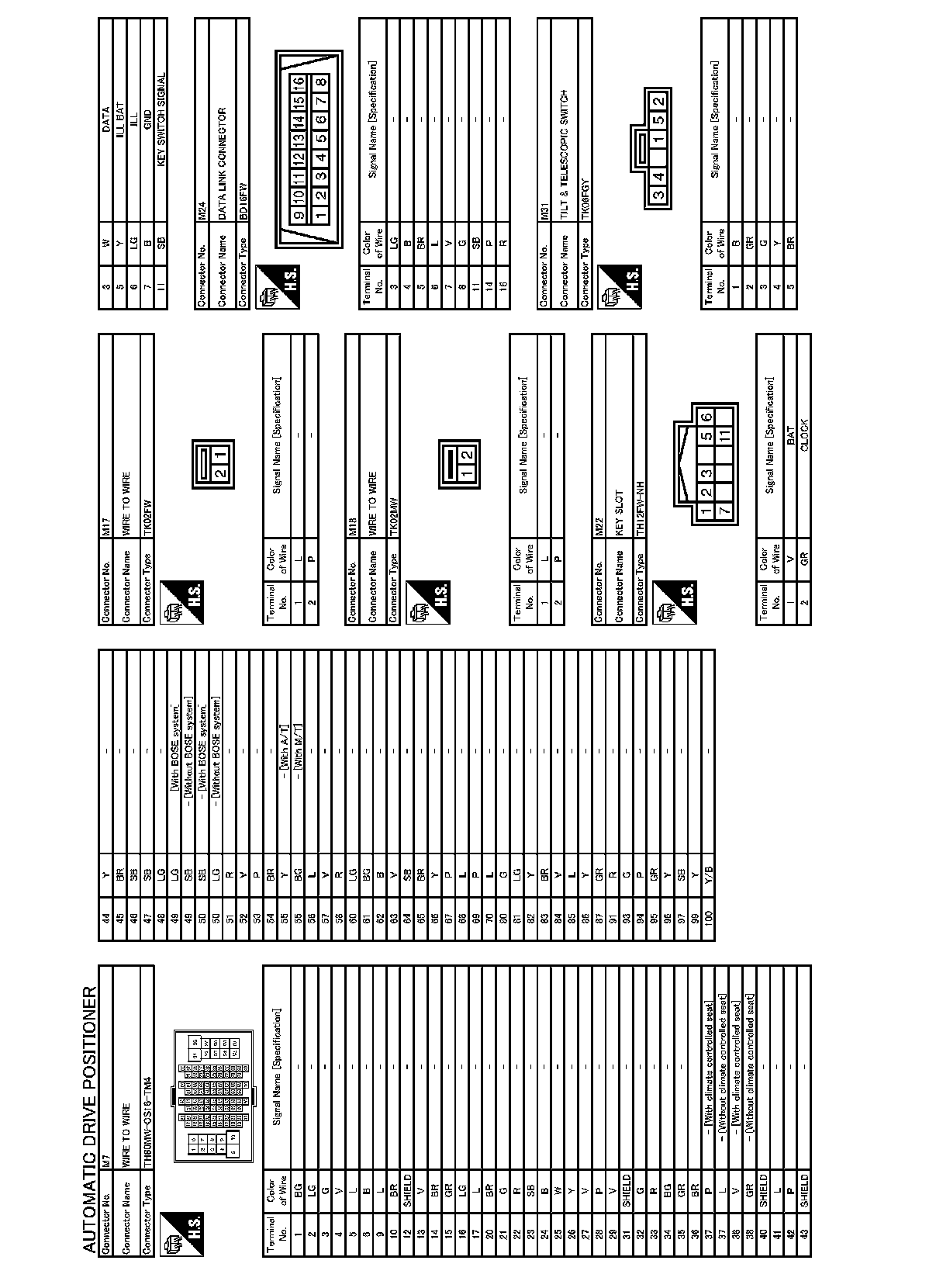

DRIVER SEAT CONTROL UNIT (WITH AUTOMATIC DRIVE POSITIONER)

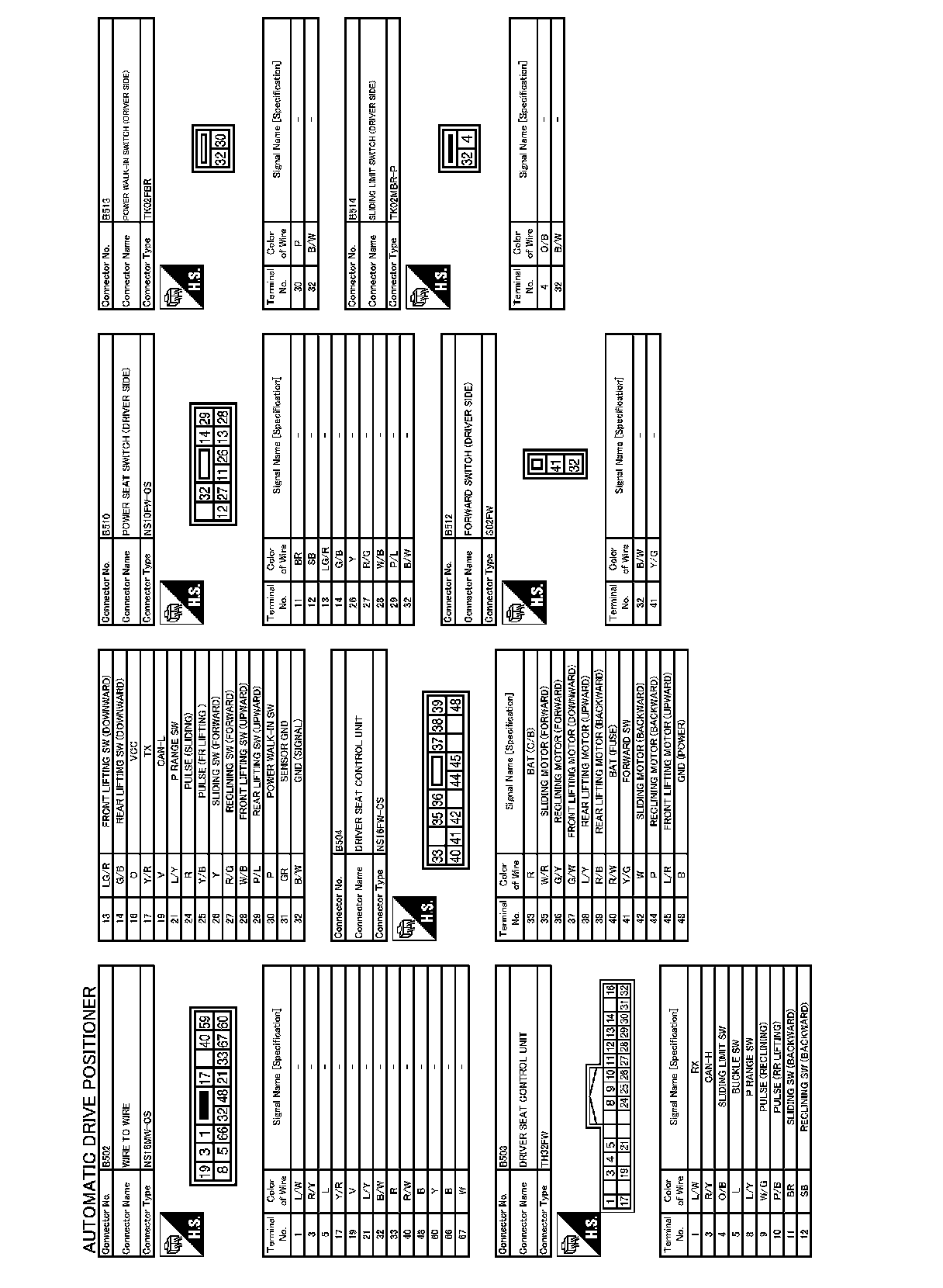

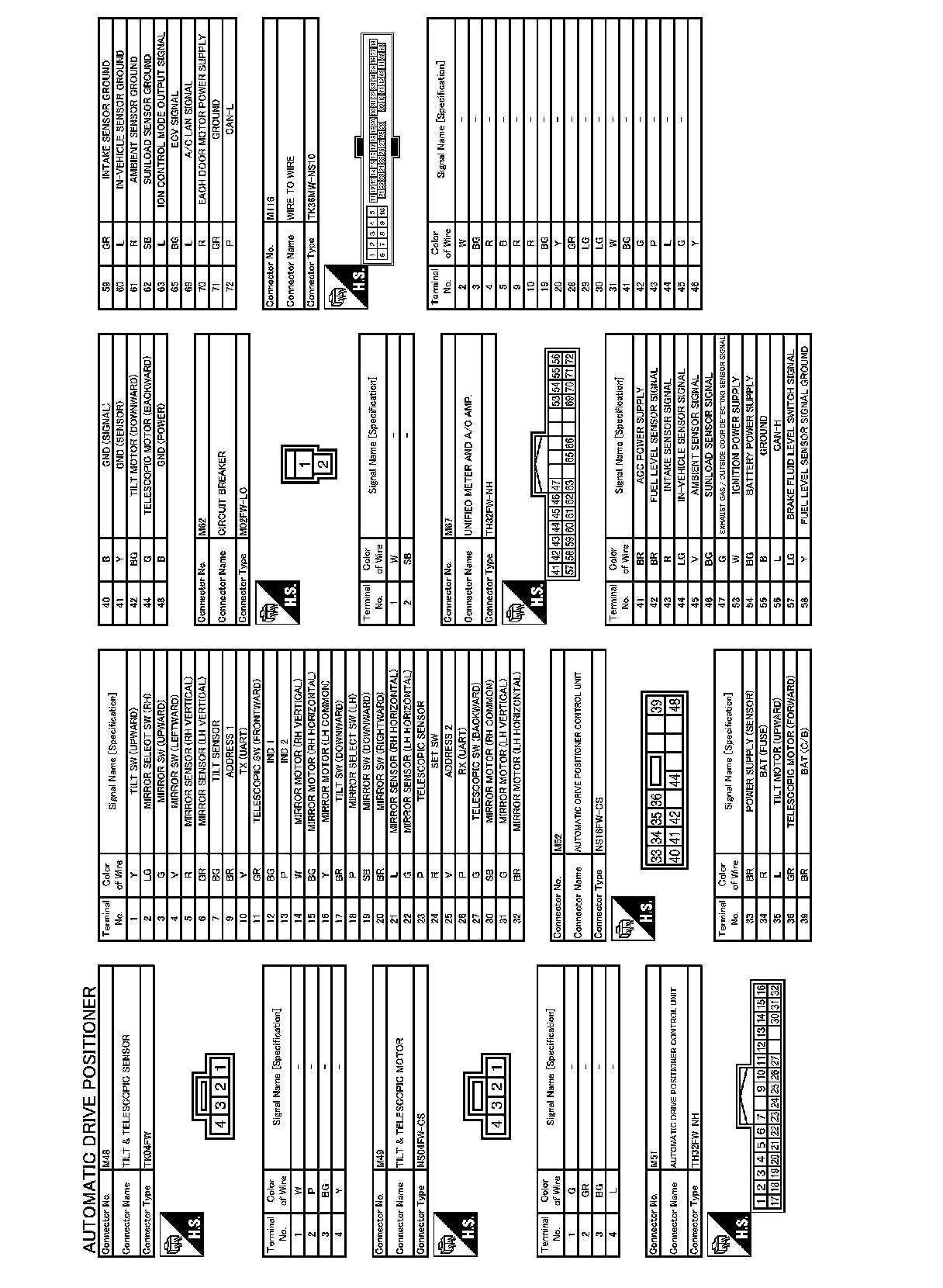

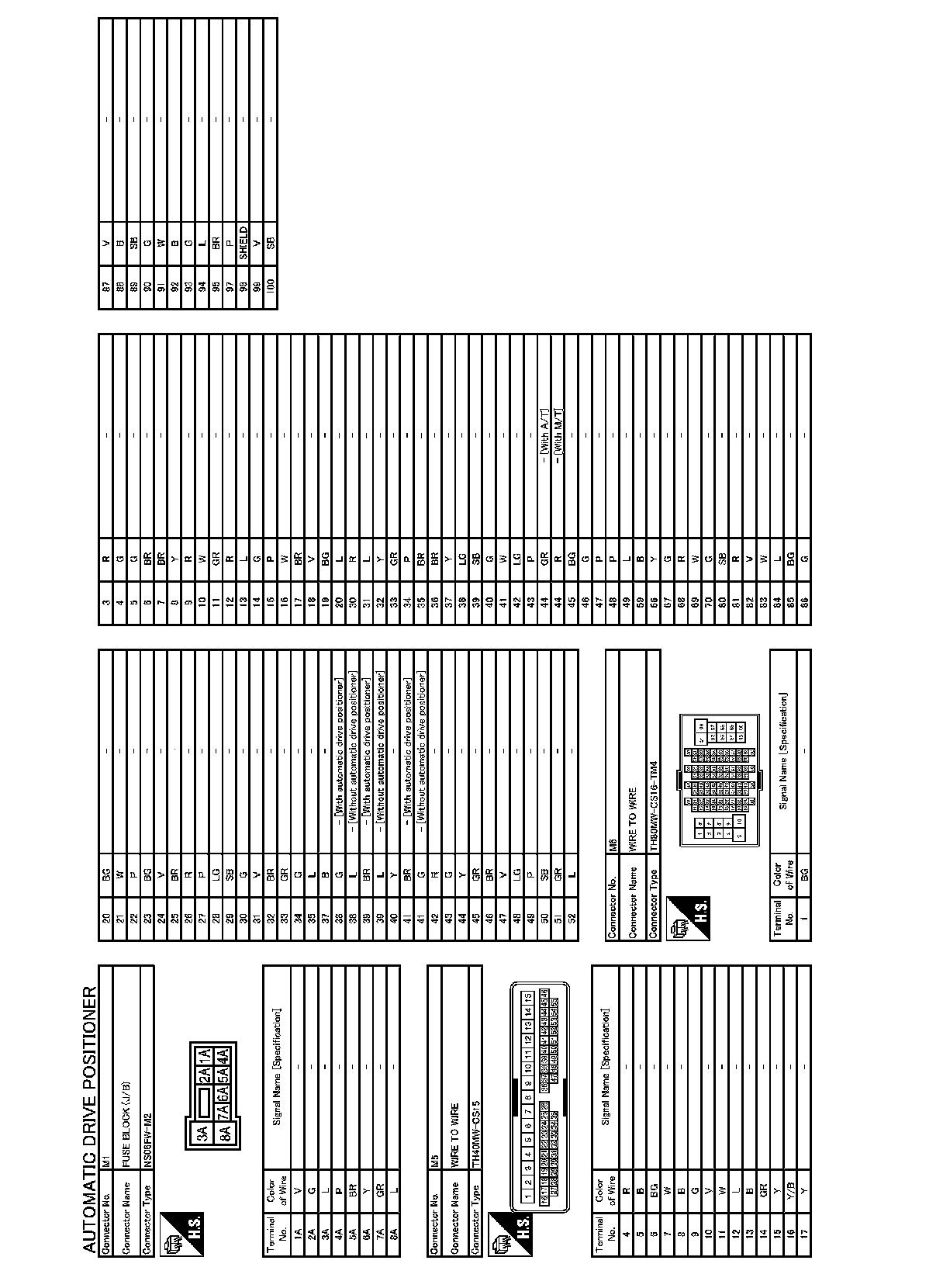

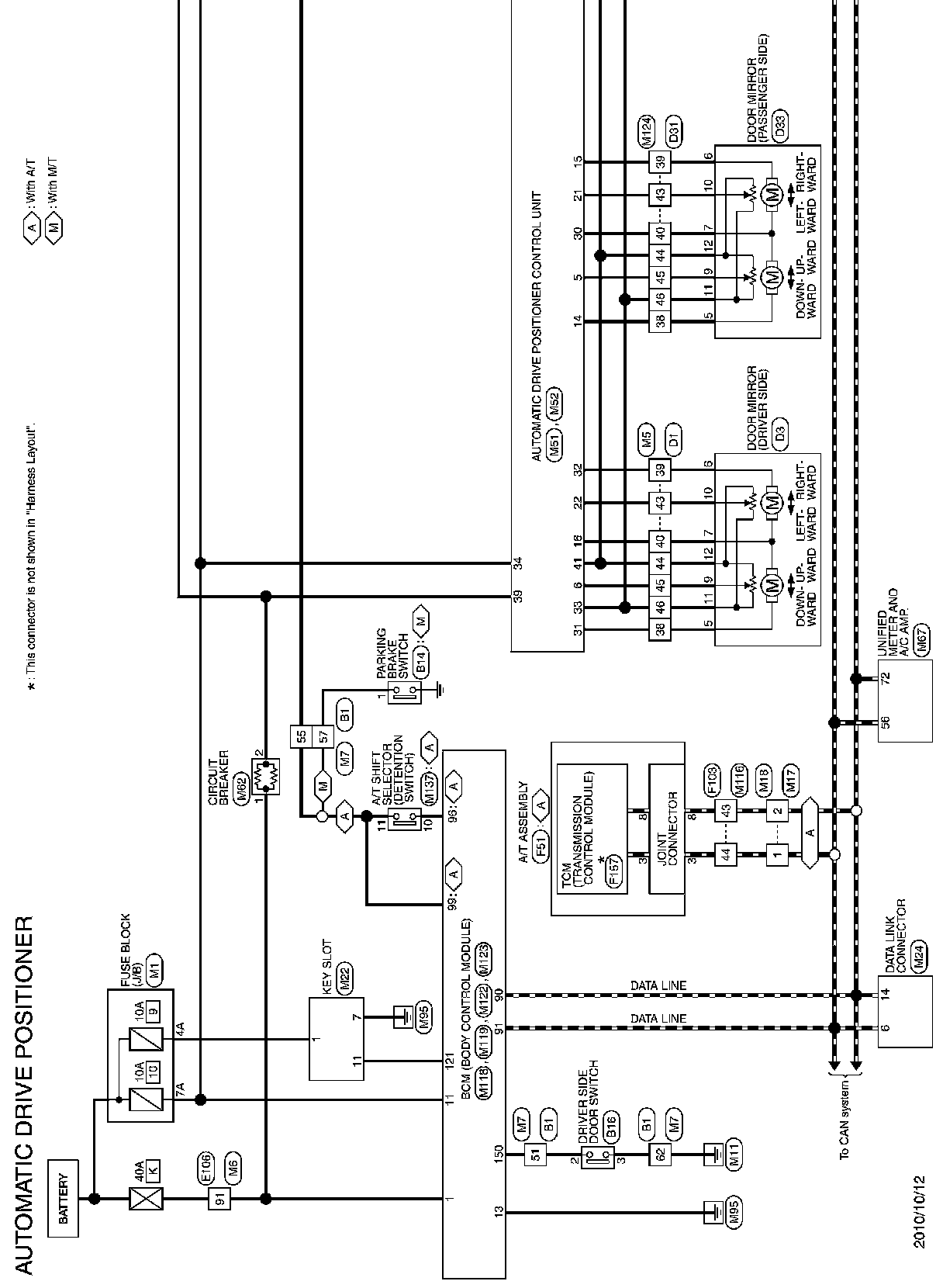

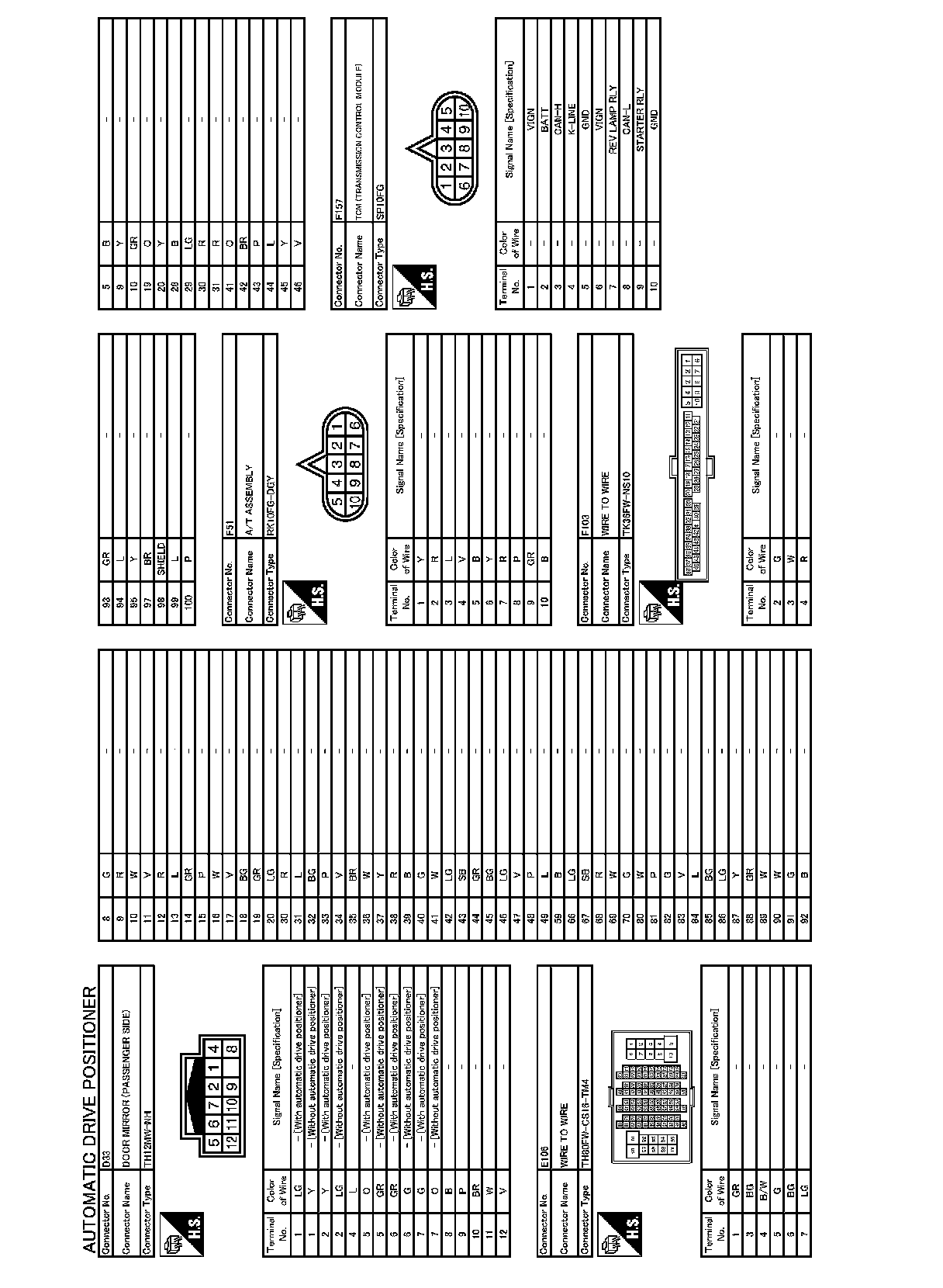

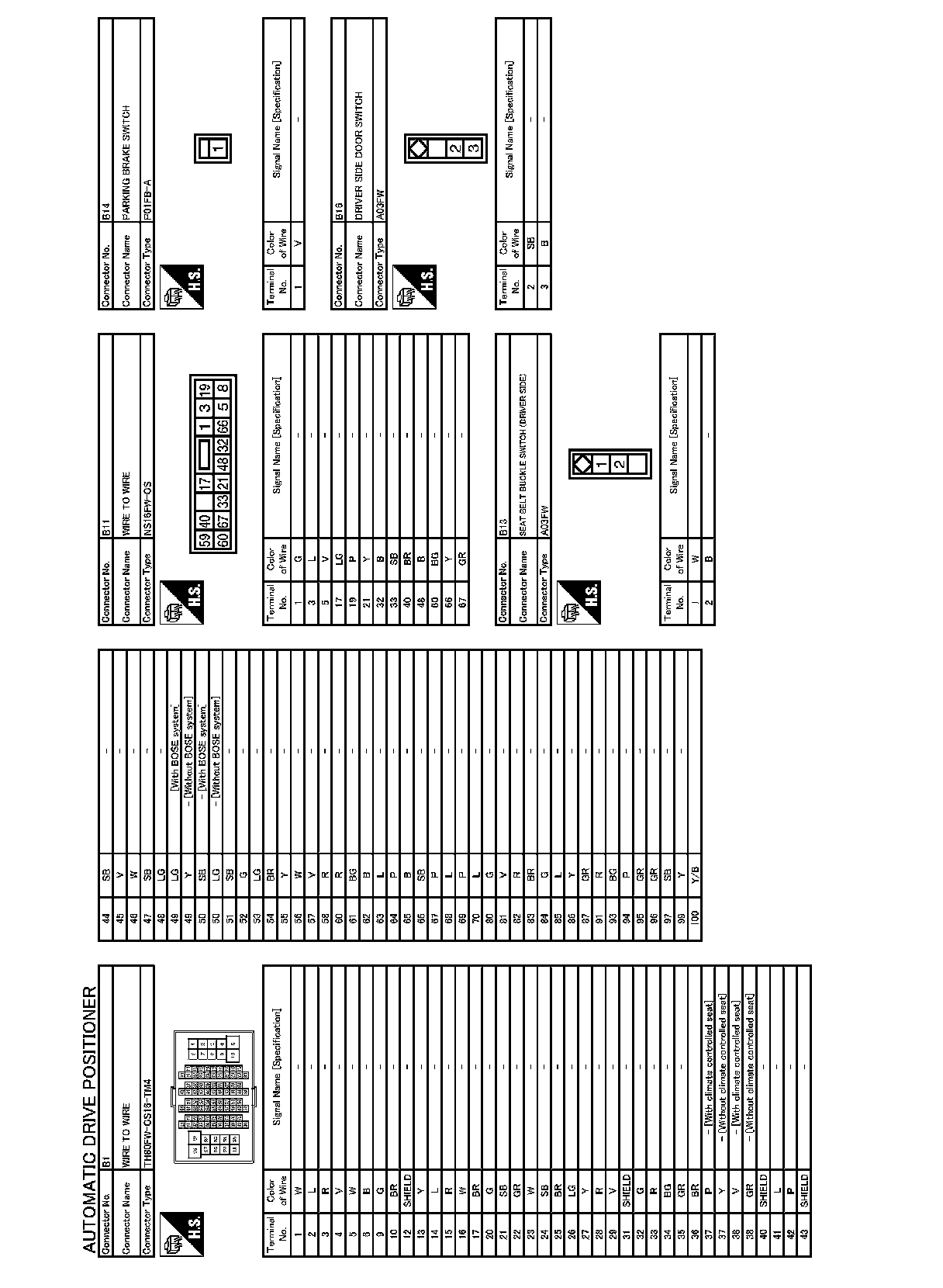

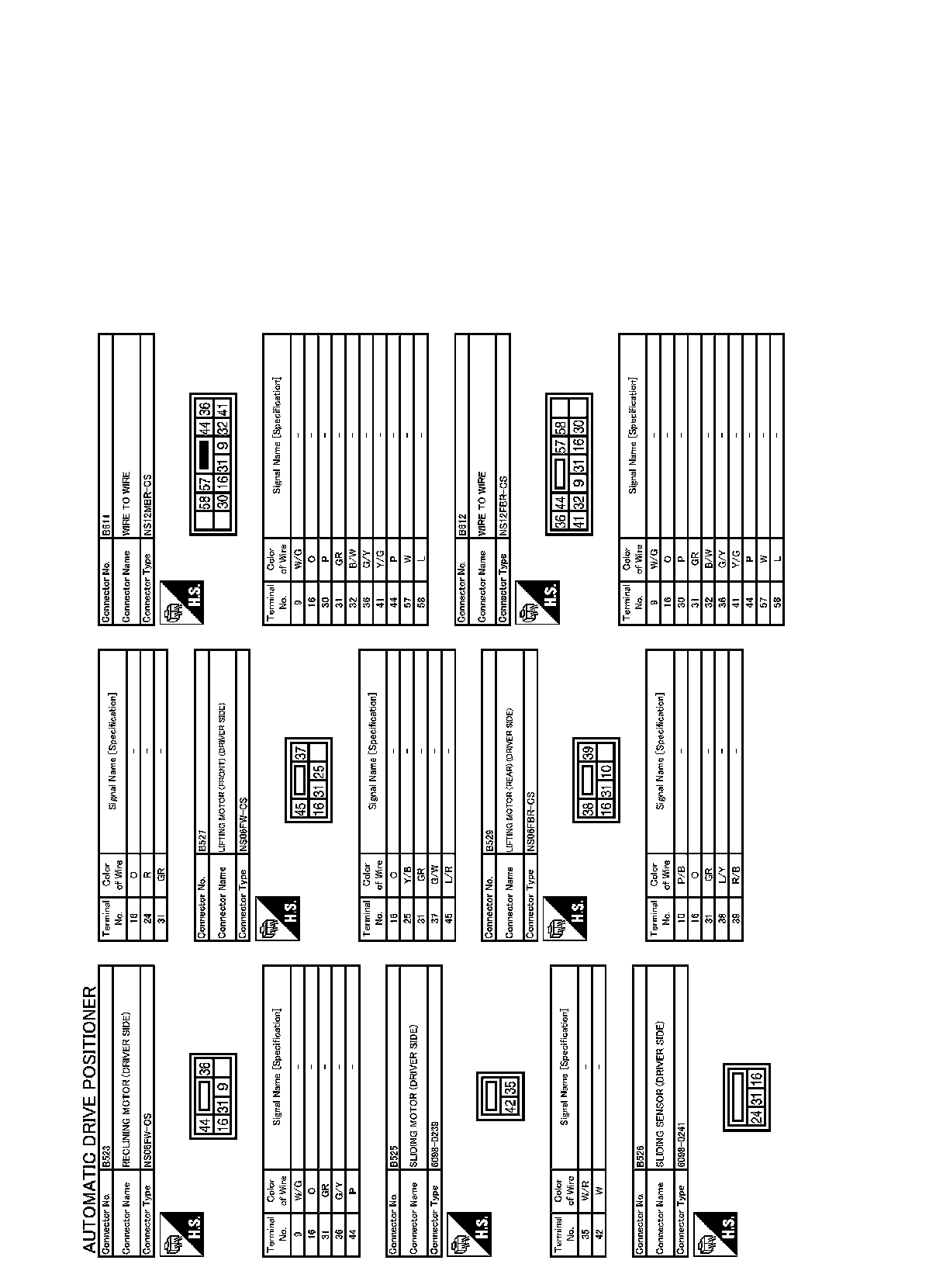

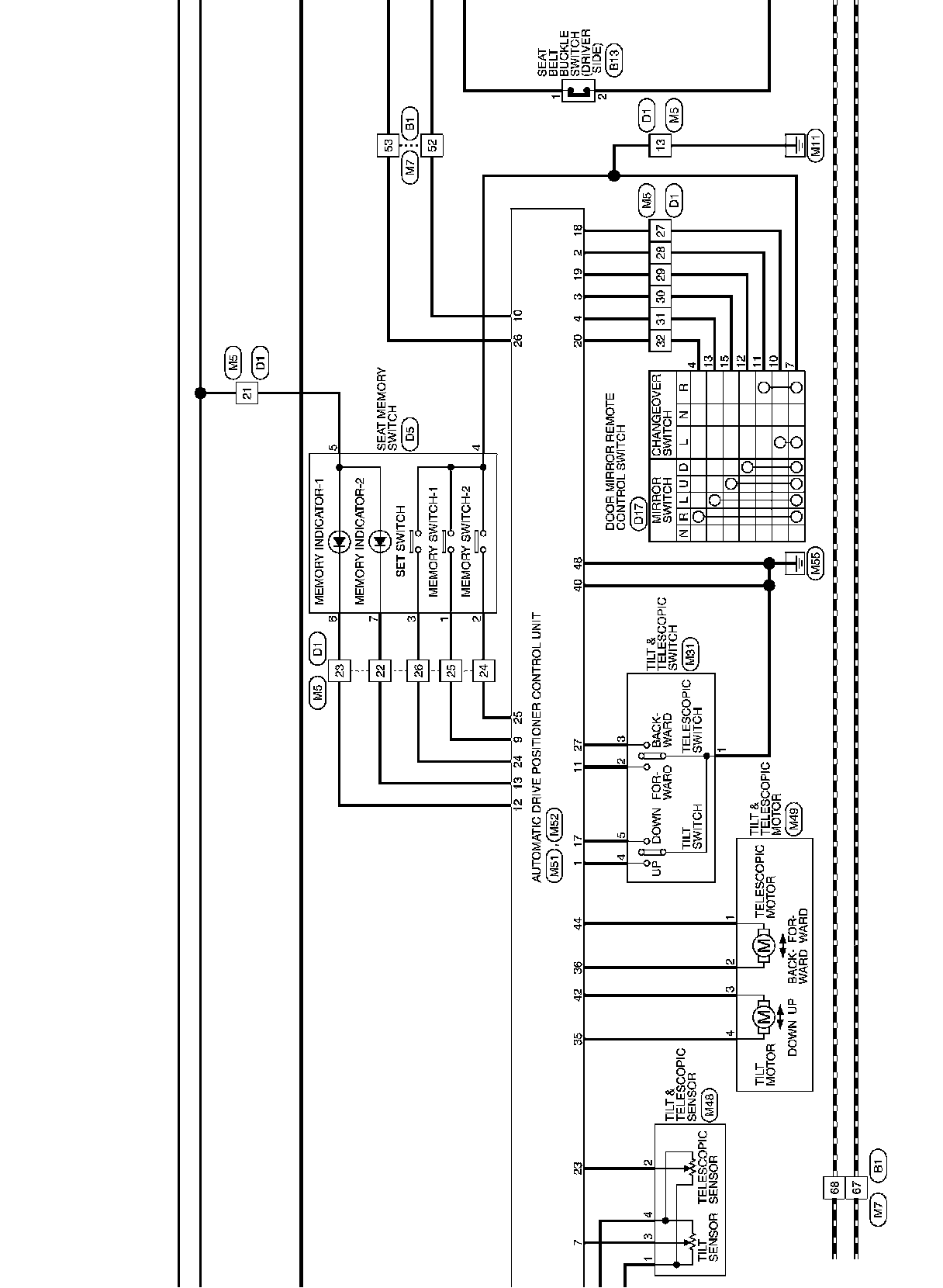

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM
