7AT RE7R01A
>>
Shift Pattern Control
>>
System Diagram
System Diagram

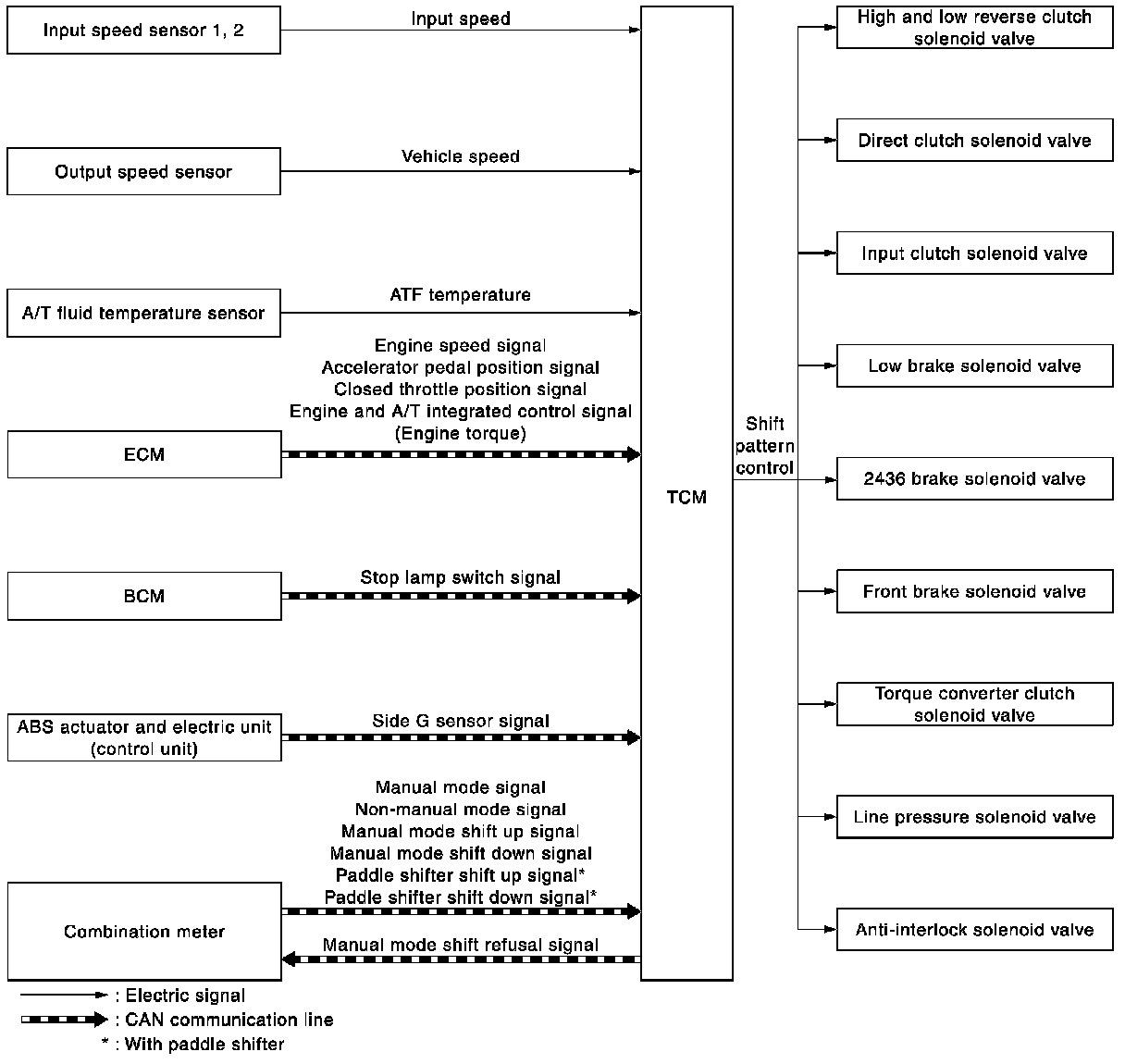

SHIFT PATTERN CONTROL : System Diagram
