Infiniti
>>
2011
>>
M56 V8-5.6L (VK56VD)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

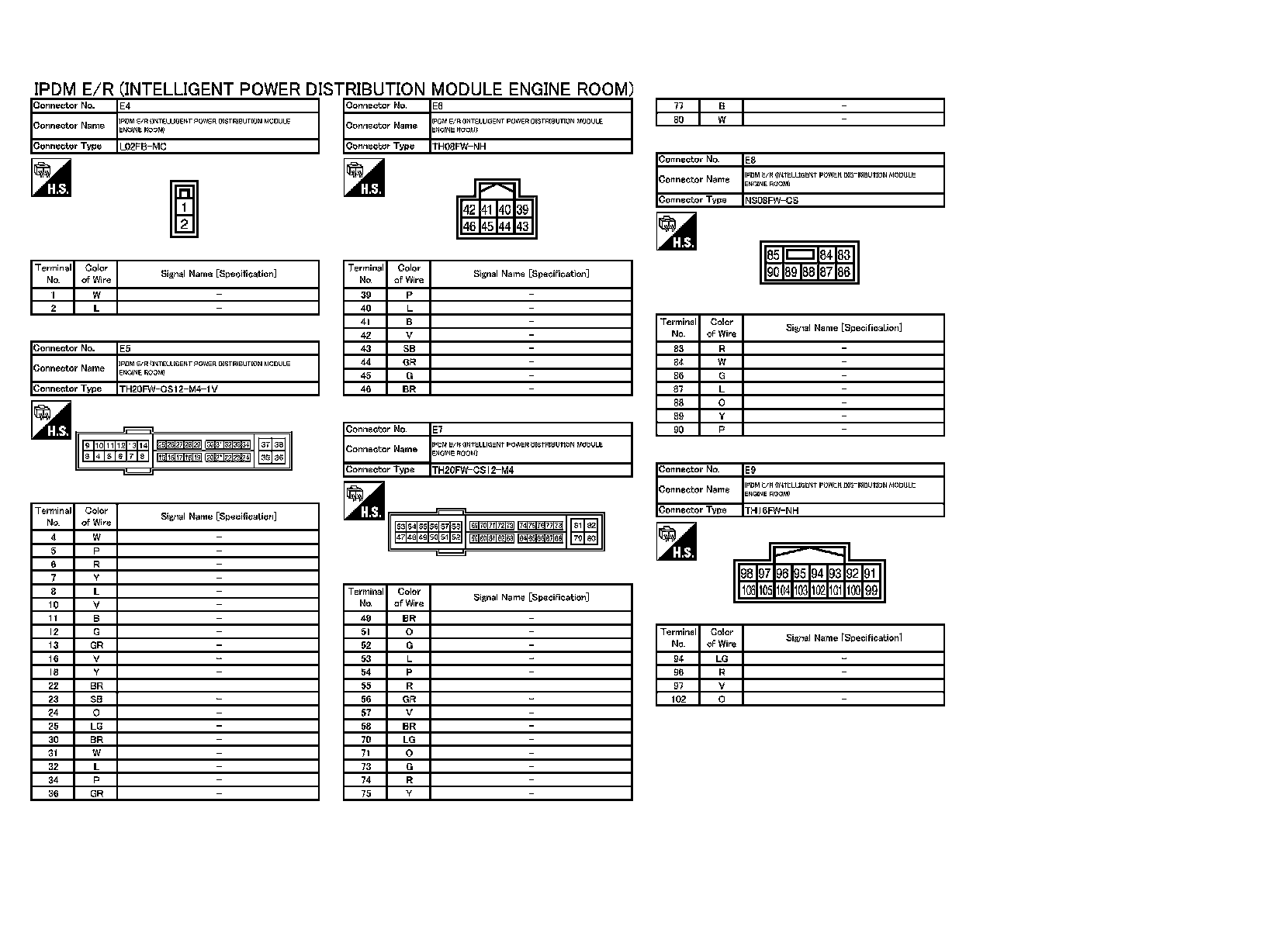

IPDM E/R

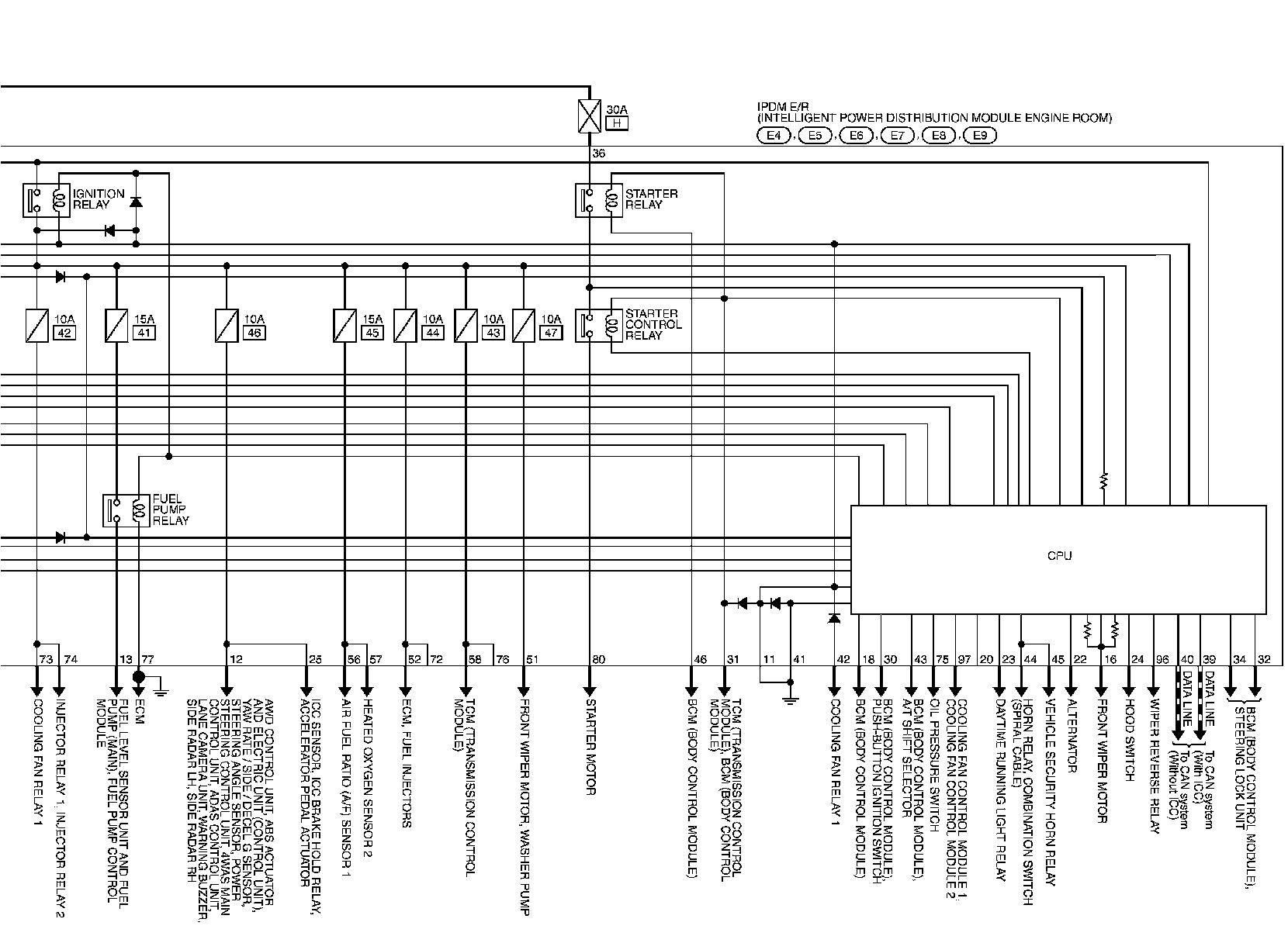

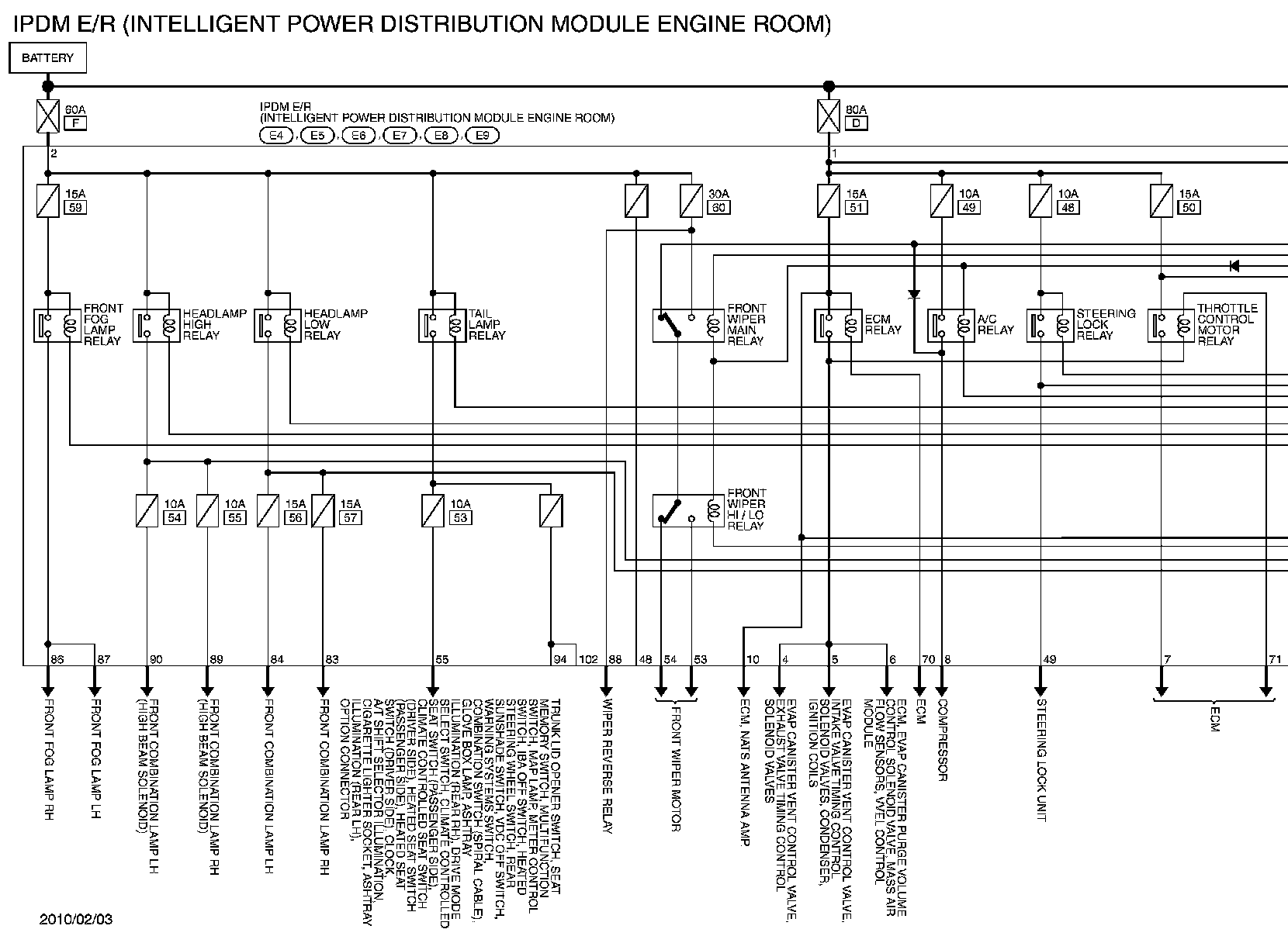

Wiring Diagram
