Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2011
>>
M56 V8-5.6L (VK56VD)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Frame
>>
Subframe
>>
Rear Subframe
>>
Service and Repair
>>

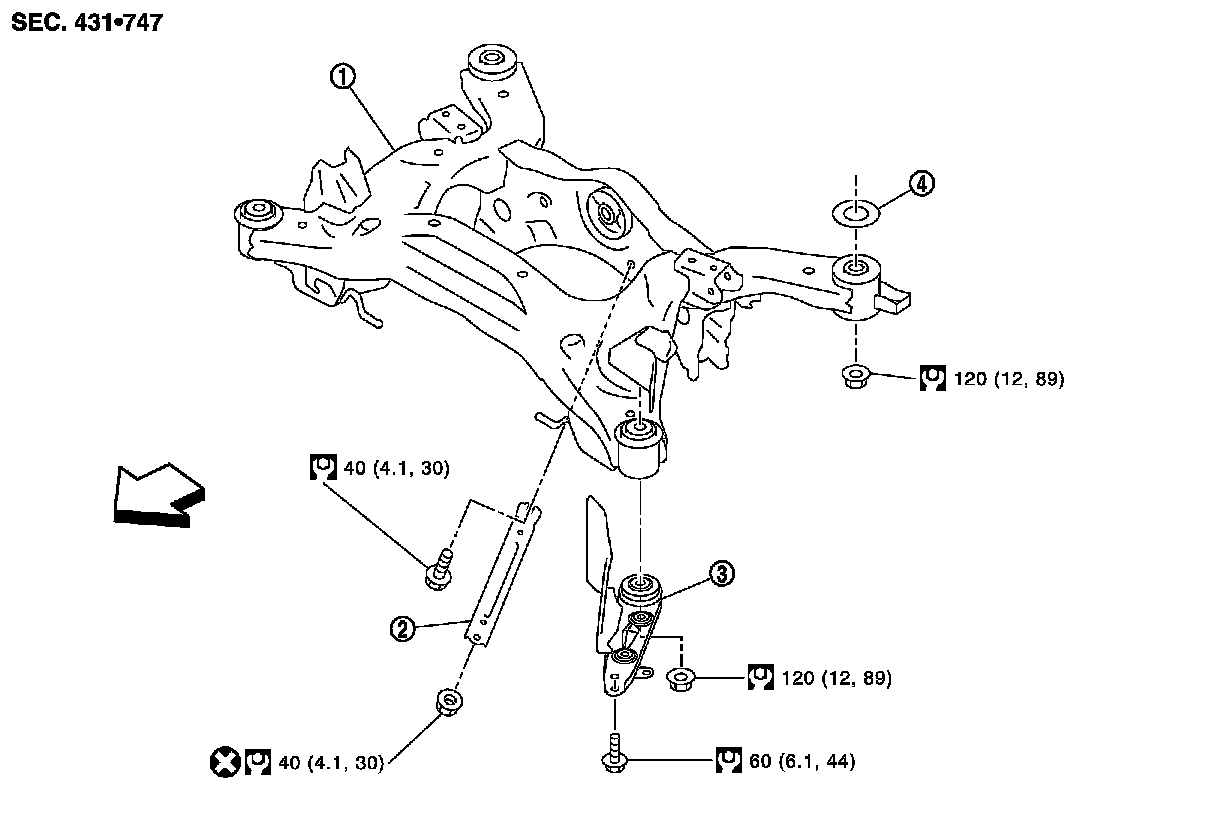

Exploded View
Exploded View
REAR
SUSPENSION
ASSEMBLY
Exploded View
