Description and Operation
>>
Seat Synchronization Function
>>
System Diagram
System Diagram

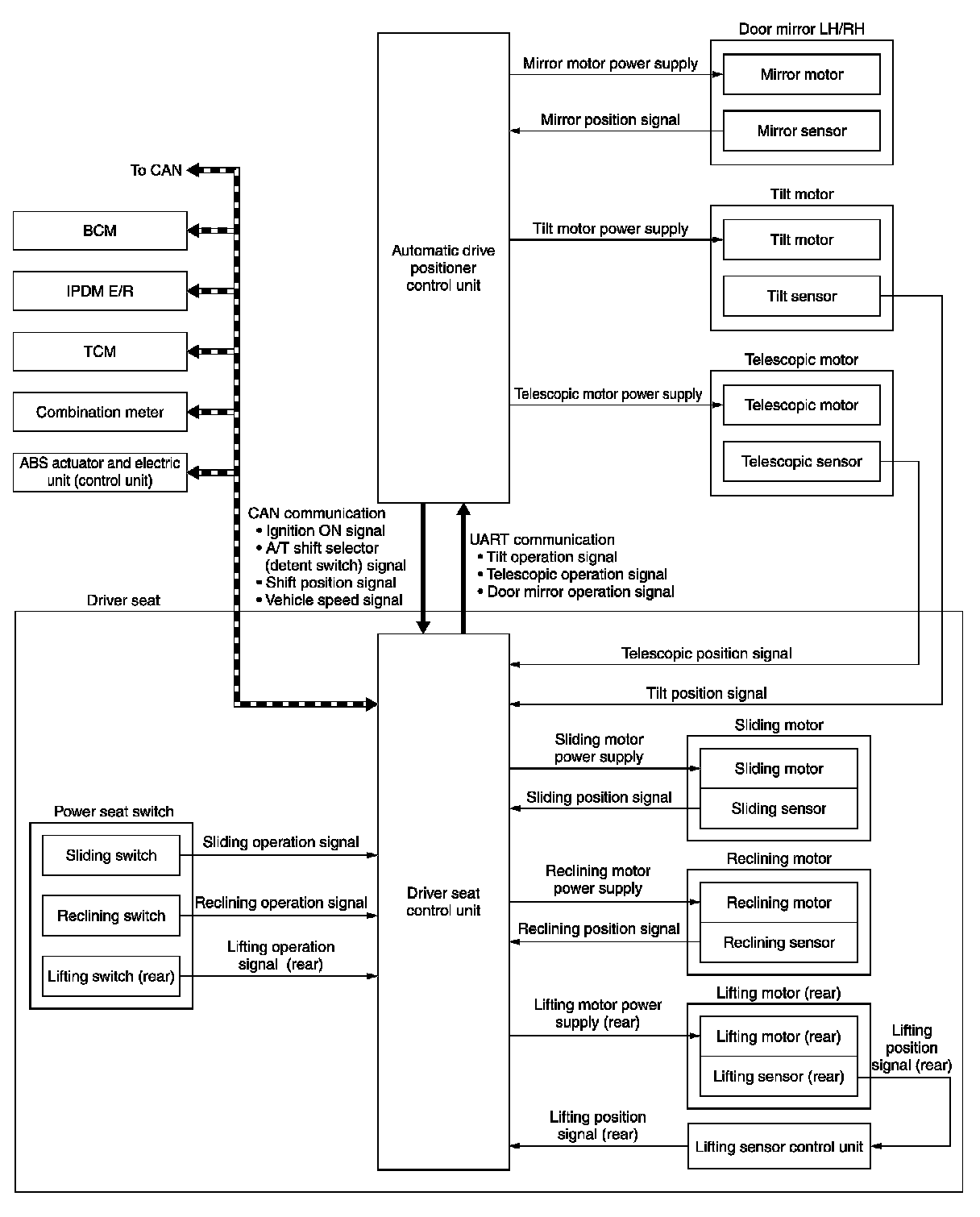

SEAT SYNCHRONIZATION FUNCTION : System Diagram
