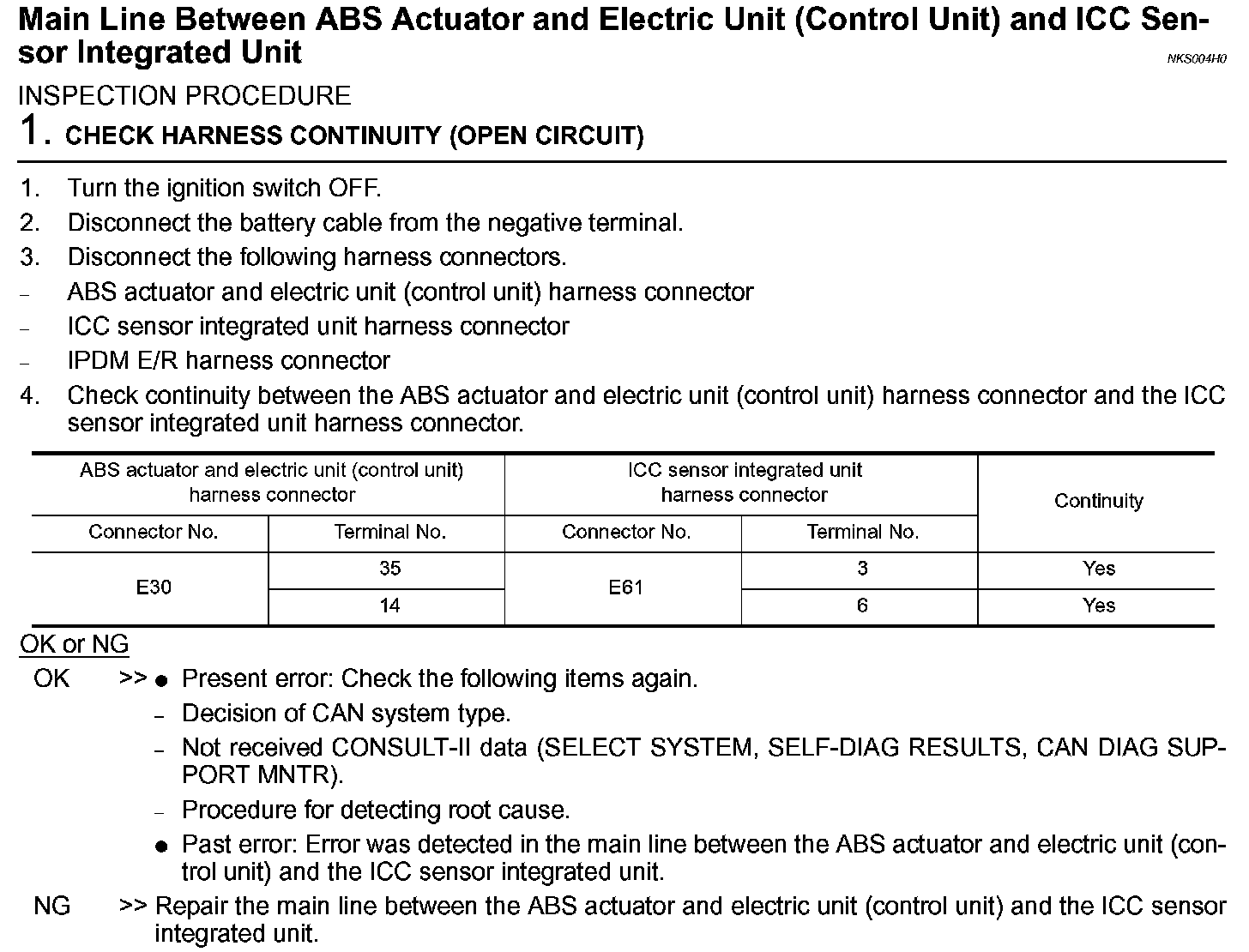

Main Line Between ABS Actuator and Electric Unit (Control Unit) and ICC Sensor Integrated Unit
Main Line Between ABS Actuator and Electric Unit (Control Unit) and ICC Sensor Integrated Unit
Step 1:
