Home
>>
Infiniti
>>
2007
>>
M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
Heating and Air Conditioning

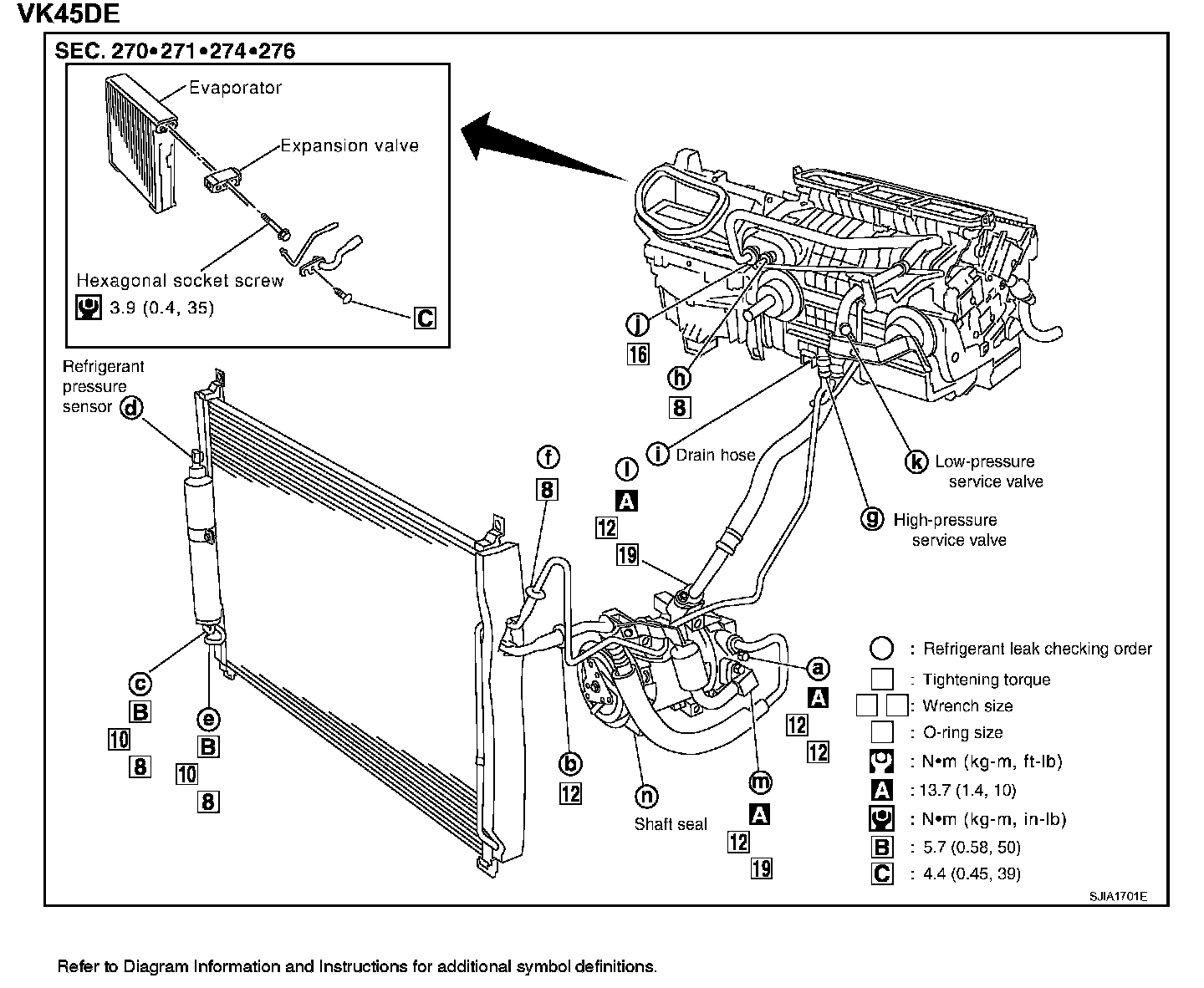

Exploded View ATC-153:
