Home >> Infiniti >> 2007 >> M35 V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Component Tests and General Diagnostics >> TCM Branch Line Circuit

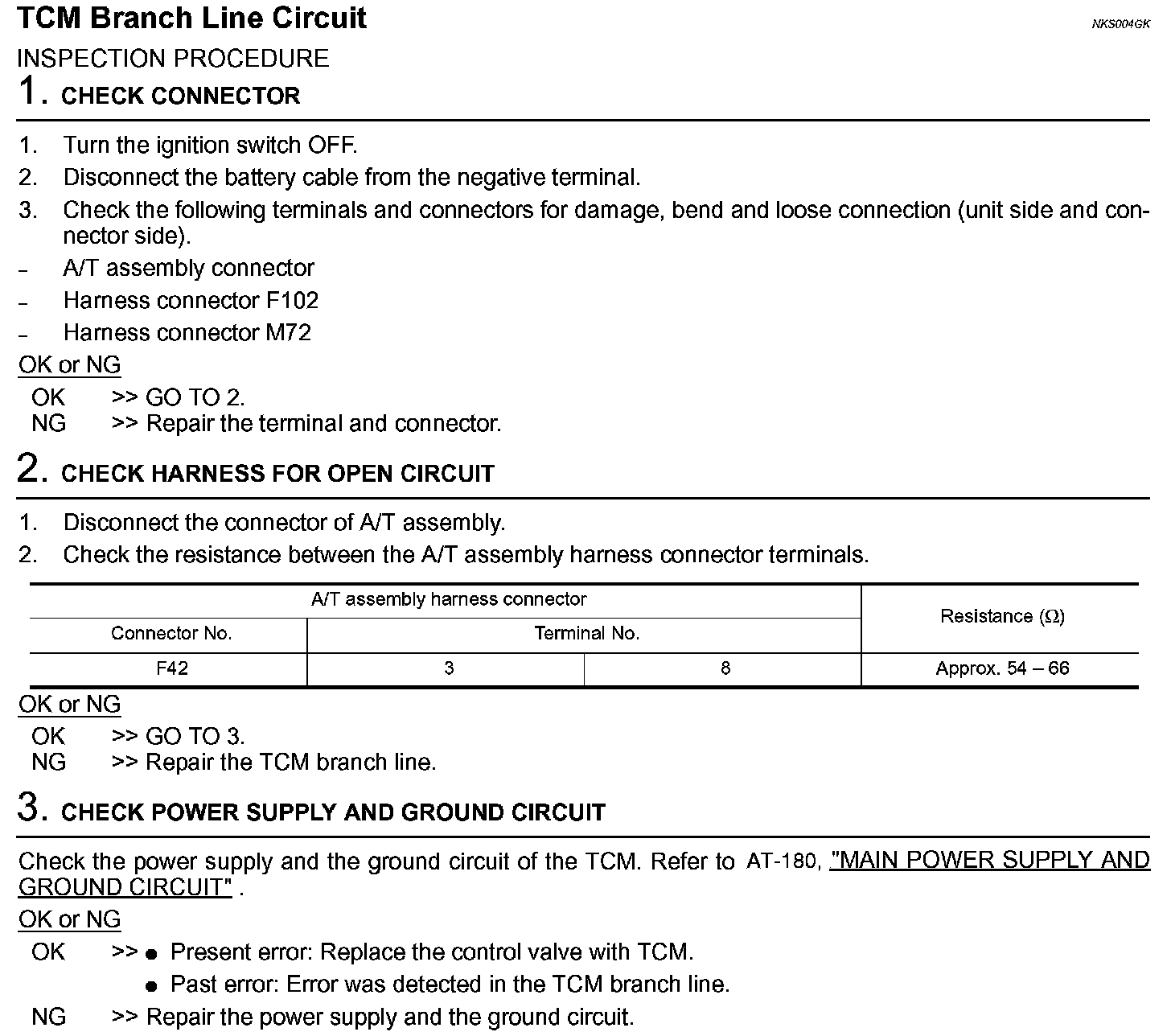

TCM Branch Line Circuit

Step 1-3:
