Control Unit Input/Output Signal Standard

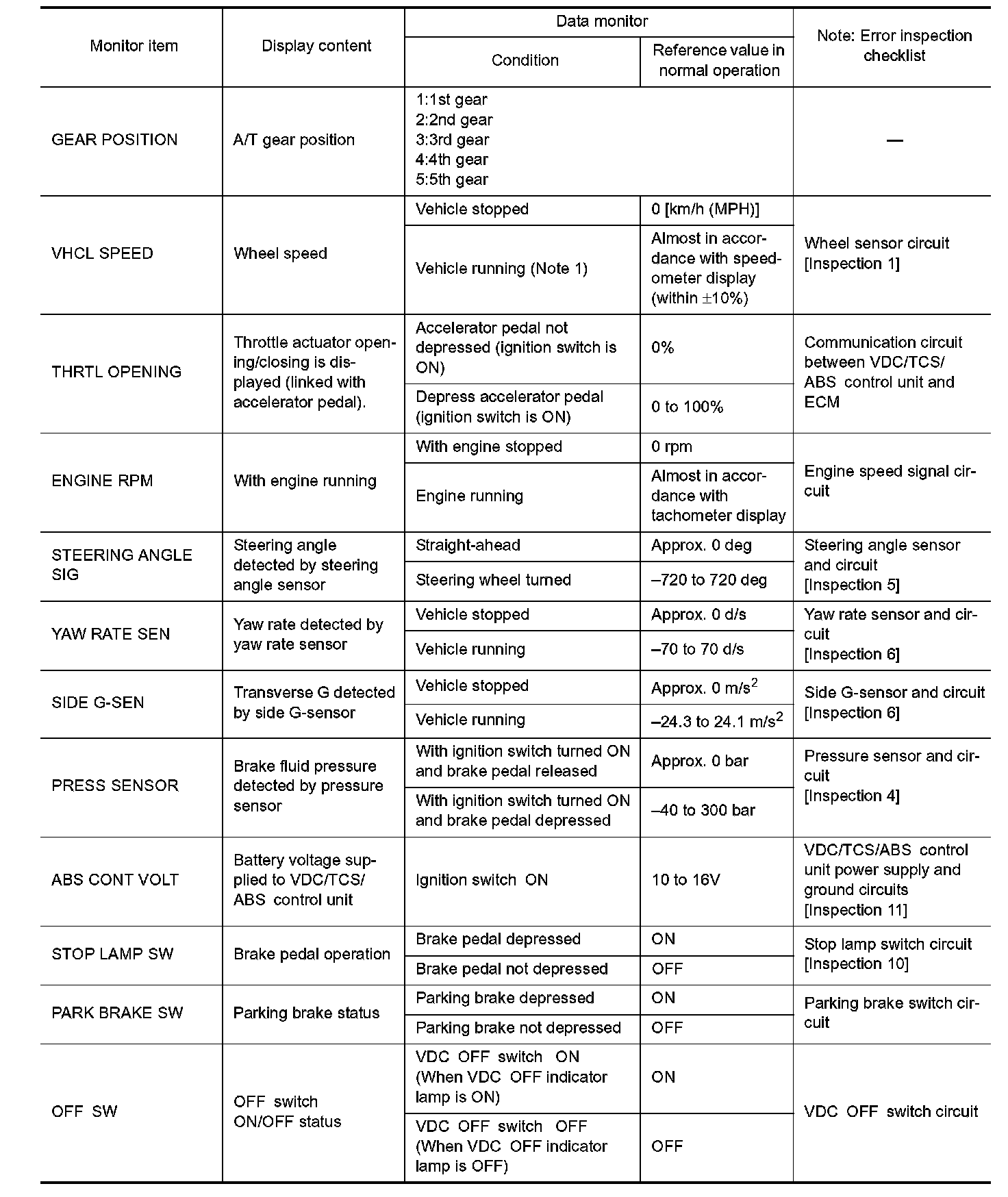

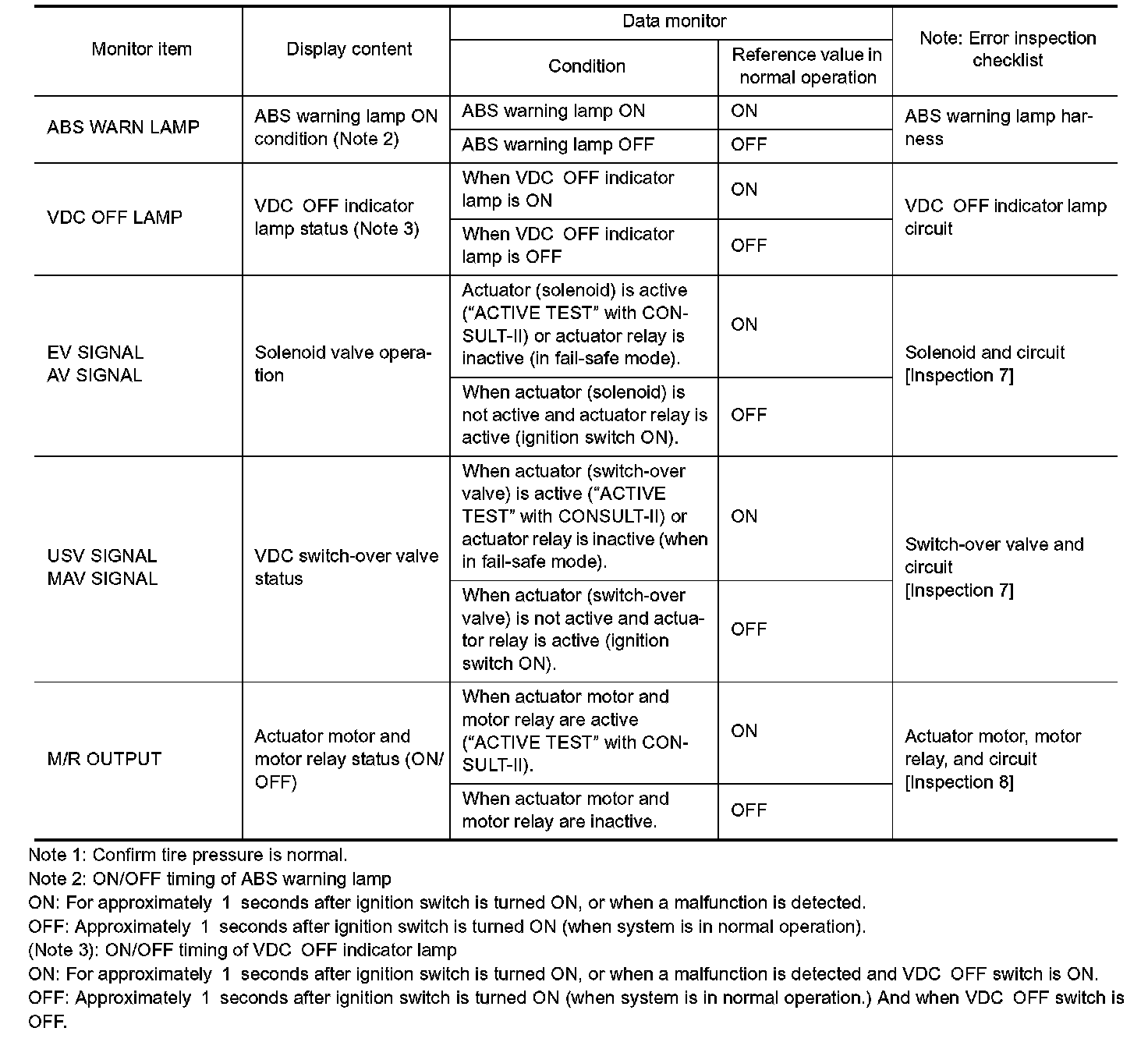

STANDARDS BY CONSULT-II










CAUTION: Items displayed are data calculated by control unit and may indicate normal operation even if output circuit (harness) is open or shorted.
